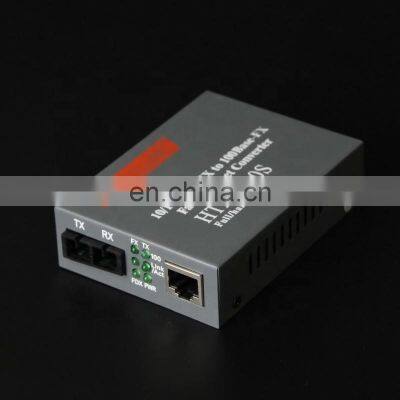

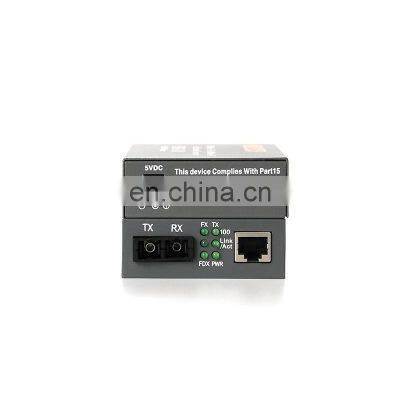

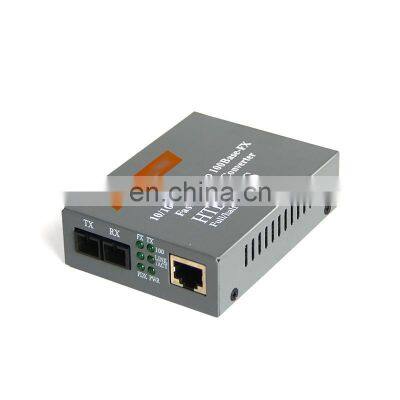

HTB-1100S Optical Fiber Media Converter 25km SC 10/100Mbps RJ45 Single Mode Double Fiber Optical Media Converter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2014
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HTB-1100 Optical Media Converter 10/100Mbps RJ45 Multimode Duplex Fiber 2KM SCNegotiableMOQ: 1 -
1 Pair Gigabit Fiber Optic Media Converter 1000Mbps Single Mode Single Fiber SC Port 20KM HTB-4100 Fiber Media ConverterNegotiableMOQ: 1
-
Industrial Grade 10/100M Single Mode Fiber Optic Media Converter 1 Fiber 8 RJ45NegotiableMOQ: 1
-
10/100Mbps Fast Ethernet Fiber SC Port Single Mode Single Fiber Fiber Ethernet Media ConverterNegotiableMOQ: 1
-
10/100Mbs TX RX Netlink Media Transceiver HTB-3100A/B Ethernet Fiber Optic Media ConverterNegotiableMOQ: 1
Product Description
Fiber Type |
Single mode Dual Fiber |
Wavelength |
1310nm |
Transmission distance |
25Km |
Min TX PWR |
-17.0dBm |
Max TX PWR |
-8.0dBm |
Sensitivity |
-31.0dBm |
Link Budget |
14.0dBm |
Product Description:
HTB -1100S is 10/100M adaptive fast Ethernet optical transceiver. It can achieve two different twisted-pair
cable and optical fiber transmission medium of transformation, relay base - TX 10/100 and 100 base - FX
two different network segments, can satisfy the longdistance, high speed and high bandwidth fast Ethernet workgroup user needs.
Product parameters:
Follow the IEEE 802.3, IEEE 802.3u and 100Base-FX standards
Provides a standard RJ45 interface and two SC fiber interface
LED: Power,FDX/Col,FX link/Act,TX Link/Act,Fx 100,TX 100.
Duplex Mode:Full or Half Duplex Mode
Data transfer rate: 10/100Mbps data transfer rate
Power Requirement: AC 100-240V 50/60HZ DC 5V/2A
Ambient Temperature: 0 to 70 degree
Humidity: 5 per cent to 90 per cent
Dimensions:40*100*140mm
Cable:UTP:Cat.5 UTP Cable
Fiber Singlemode:9/125um
HTB -1100S is 10/100M adaptive fast Ethernet optical transceiver. It can achieve two different twisted-pair
cable and optical fiber transmission medium of transformation, relay base - TX 10/100 and 100 base - FX
two different network segments, can satisfy the longdistance, high speed and high bandwidth fast Ethernet workgroup user needs.
Product parameters:
Follow the IEEE 802.3, IEEE 802.3u and 100Base-FX standards
Provides a standard RJ45 interface and two SC fiber interface
LED: Power,FDX/Col,FX link/Act,TX Link/Act,Fx 100,TX 100.
Duplex Mode:Full or Half Duplex Mode
Data transfer rate: 10/100Mbps data transfer rate
Power Requirement: AC 100-240V 50/60HZ DC 5V/2A
Ambient Temperature: 0 to 70 degree
Humidity: 5 per cent to 90 per cent
Dimensions:40*100*140mm
Cable:UTP:Cat.5 UTP Cable
Fiber Singlemode:9/125um
Related Products
Company Introduction
Shanghai Tanghu Optical Fiber Equipment Co., Ltd. is a high-tech enterprise specializing in the production of optical
communication products, with nearly 20 years of industry experience.At present, the company has passed the ISO9001 certification,has two production bases in Shenzhen and Xuzhou, and has a large modern warehouse in Shanghai.The company covers an area of 20000m2, with more than 500 employees and annual sales of more than 300 million RMB.Company has roboticized production and testing equipment, since its inception, the company has been committed to product innovation and R&D, the products include cable, patch cord, optical transceiver, POE switch, OPM, VFL, optical fiber fusion splicer, optical divider, fiber boxes, etc., which are widely used in the plot construction of campus network, security, monitoring, radio and television transmission, FTTH, etc.The products are exported in large quantities to more than 60 countries and regions including the USA, Australia, India, Russia, Brazil and South Africa and so on, providing innovative technologies and product solutions for global telecom operators and enterprise network customers, and enabling users around the world to enjoy all-round communication such as voice, data, multimedia and wireless broadband.
communication products, with nearly 20 years of industry experience.At present, the company has passed the ISO9001 certification,has two production bases in Shenzhen and Xuzhou, and has a large modern warehouse in Shanghai.The company covers an area of 20000m2, with more than 500 employees and annual sales of more than 300 million RMB.Company has roboticized production and testing equipment, since its inception, the company has been committed to product innovation and R&D, the products include cable, patch cord, optical transceiver, POE switch, OPM, VFL, optical fiber fusion splicer, optical divider, fiber boxes, etc., which are widely used in the plot construction of campus network, security, monitoring, radio and television transmission, FTTH, etc.The products are exported in large quantities to more than 60 countries and regions including the USA, Australia, India, Russia, Brazil and South Africa and so on, providing innovative technologies and product solutions for global telecom operators and enterprise network customers, and enabling users around the world to enjoy all-round communication such as voice, data, multimedia and wireless broadband.
FAQ
Q: What about delivery time?
A: We have big warehouses in Shanghai, also in Shenzhen factory, providing instant delivery serivce. Most products can be
delivered within 3~7 days.
Q: What is your warranty period?
delivered within 3~7 days.
Q: What is your warranty period?
A: We provide one year of unconditional warranty on our products for the manufacturing defects.
Q: Why should we buy from you?
Q: Why should we buy from you?
A: We are committed to provide best quality products at minimum delivery time and competitive price. We believe this is what customer wants. We are satified until customers are.
Q: Can you provide OEM, ODM service?
Q: Can you provide OEM, ODM service?
A: Yes. We have factories in Shenzhen and Xuzhou, we can make products according to your requirements.
