Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > 10/100Mbs TX RX Netlink Media Transceiver HTB-3100A/B Ethernet Fiber Optic Media Converter

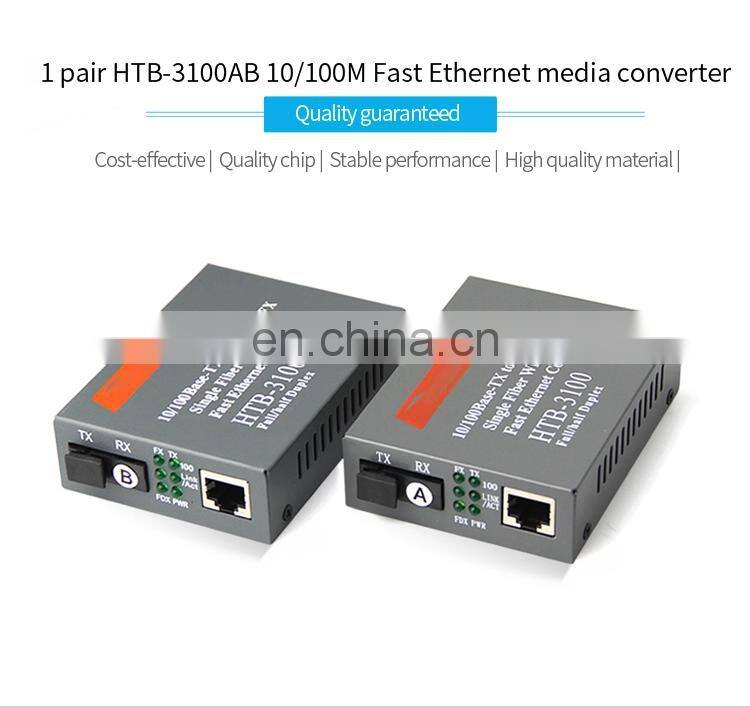

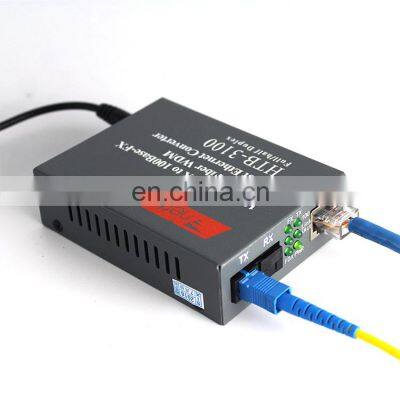

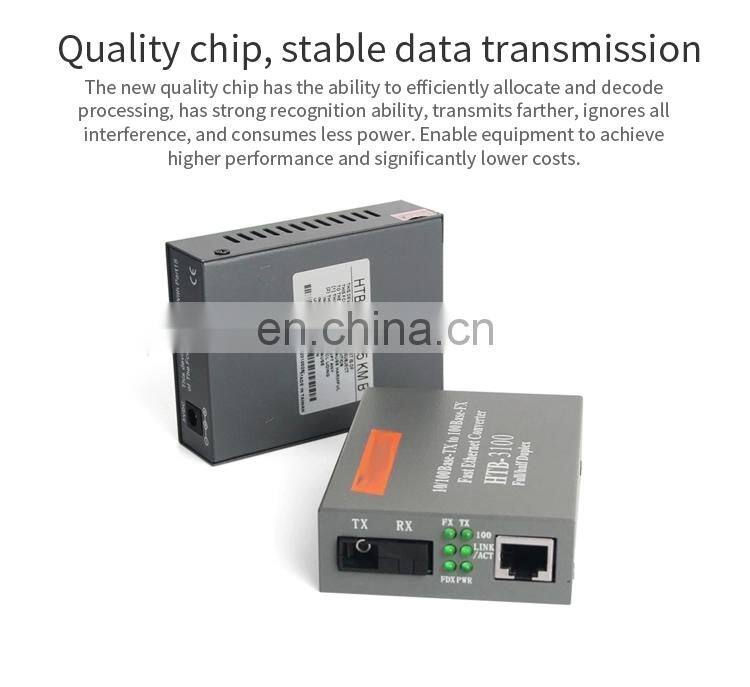

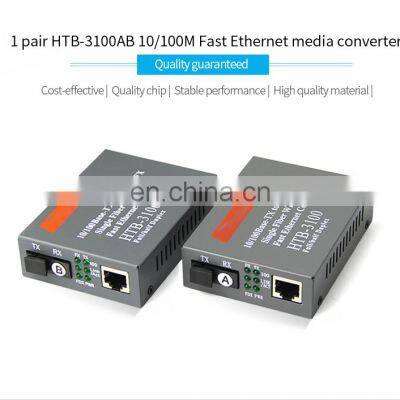

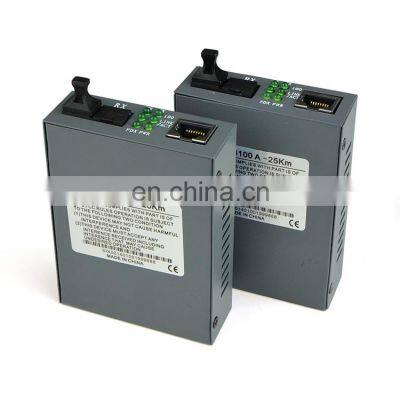

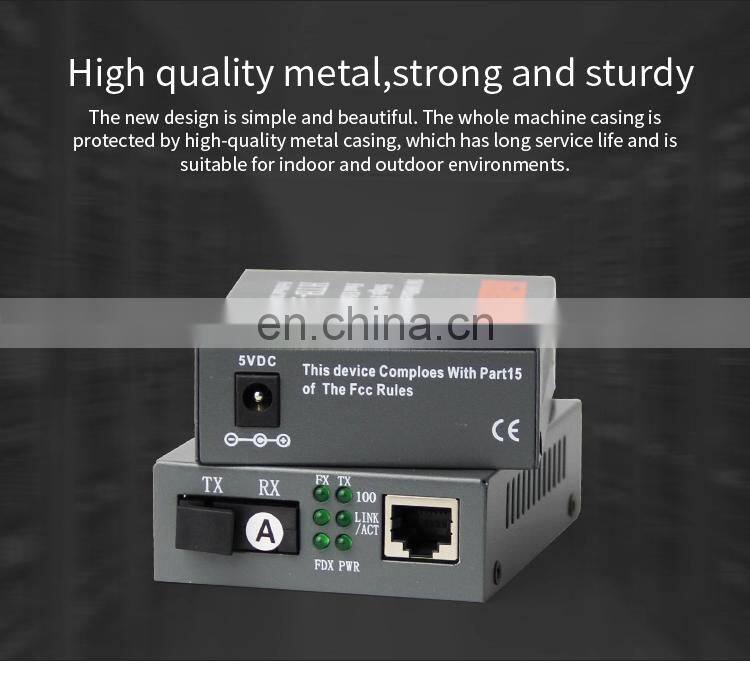

10/100Mbs TX RX Netlink Media Transceiver HTB-3100A/B Ethernet Fiber Optic Media Converter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2014
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HTB-1100S 10/100Mbps Single Mode Duplex Fiber Optical Fiber Media ConverterNegotiableMOQ: 1 -
10/100/1000 Media Converter Single Mode Single Fiber SC Port 20KM HTB-4100 Fiber Ethernet Media ConverterNegotiableMOQ: 1
-
Netlink HTB-GS-03 A/B 1000Mbps SC Port 3KM SM Single Fast Ethernet Fiber Optic Media Converter With 1 PO 1 PE for NetworkNegotiableMOQ: 1
-
10/100/1000M Industrial Grade Single Mode Fiber Optic to RJ45 Media ConverterNegotiableMOQ: 1
-
10/100M Single Mode Single Fiber 2 SC Fiber Port 4 RJ45 Port Fiber Optic Media ConverterNegotiableMOQ: 1
Product Description
Type |
Fiber |
Port |
Wavelength |
TX power |
Sensitivity |
Distance |
Link Budget |
HTB-3100A/B-25 |
SM |
SC
|
1310/1550nm |
-14~-6dBm |
-32dBm |
25km |
18dBm |
HTB-3100A/B-40 |
SM |
SC |
1310/1550nm |
-5~0 dBm
|
-35dBm
|
40km
|
30dBm
|
HTB-3100A/B-60 |
SM
|
SC |
1310/1550nm |
-8~-2dBm
|
-36dBm |
60km |
28dBm |
HTB-3100A/B-80 |
SM |
SC
|
1310/1550nm |
-3~0 dBm |
-37dBm |
80km |
34dBm |
Netlink 10/100Mbs SM Single Fiber Optic Media Converter
Description
NETLINK Series 10/100M SM Single Fiber Converter is the conversion equipment of Ethernet optical-electronic signals between 10/100M UTP interface (TX) and 100M Fiber interface (FX). The traditional 10/100M Fast Ethernet can be extended to the distance of 90km through Single Optical Fiber link. The performance and quality of the products are excellent because of adopting latest IC from Taiwan. It must be used in couples, because the transmitted optical differs from the receive optical in wavelength. 6 Group LED indicated lights could fully monitor the working conditions of Converters. It is easy for end-users to observe the conditions of network. The Series product with reasonable price is especially designed for network end-users.
Specification
MAC address table: 1K
UTP: RJ-45 10/100Mbps;
Fiber: SC 100Mbps
UTP: Cat. 5 UTP (the max distance up to 100m)
Full Duplex: IEEE802.3x
Half Duplex: Backpressure

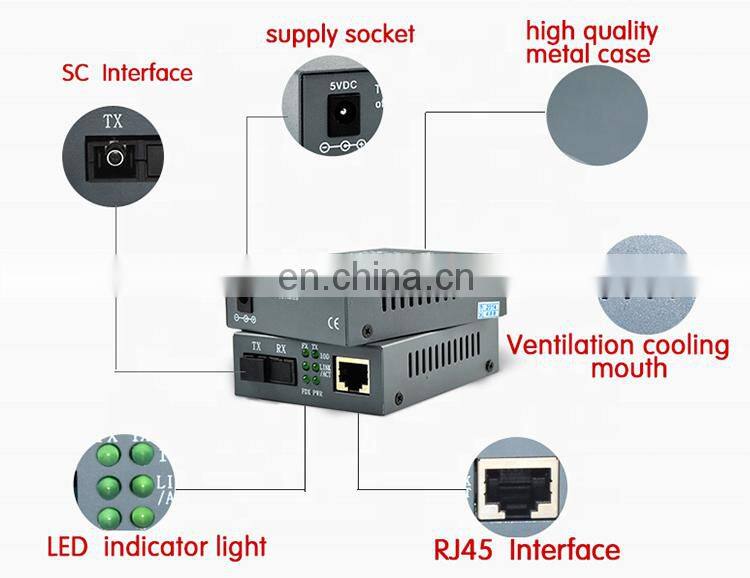

LED: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX Link/Act.
Power: AC 110V - 220V to DC 5V; DC48V to DC 5V
Ambient temperature:0 ~ 50℃
Storage temperature:-20 ~ +70℃
Humidity: 5% ~ 90%
Operating standards: IEEE802.3u, 10/100Base-TX and 100Base-FX
Fiber(Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 90km)
NETLINK Series 10/100M SM Single Fiber Converter is the conversion equipment of Ethernet optical-electronic signals between 10/100M UTP interface (TX) and 100M Fiber interface (FX). The traditional 10/100M Fast Ethernet can be extended to the distance of 90km through Single Optical Fiber link. The performance and quality of the products are excellent because of adopting latest IC from Taiwan. It must be used in couples, because the transmitted optical differs from the receive optical in wavelength. 6 Group LED indicated lights could fully monitor the working conditions of Converters. It is easy for end-users to observe the conditions of network. The Series product with reasonable price is especially designed for network end-users.
Specification
MAC address table: 1K
UTP: RJ-45 10/100Mbps;
Fiber: SC 100Mbps
UTP: Cat. 5 UTP (the max distance up to 100m)
Full Duplex: IEEE802.3x
Half Duplex: Backpressure
LED: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX Link/Act.
Power: AC 110V - 220V to DC 5V; DC48V to DC 5V
Ambient temperature:0 ~ 50℃
Storage temperature:-20 ~ +70℃
Humidity: 5% ~ 90%
Operating standards: IEEE802.3u, 10/100Base-TX and 100Base-FX
Fiber(Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 90km)
