HTB-1100 Optical Media Converter 10/100Mbps RJ45 Multimode Duplex Fiber 2KM SC
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2014
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1 Pair Gigabit Fiber Optic Media Converter 1000Mbps Single Mode Single Fiber SC Port 20KM HTB-4100 Fiber Media ConverterNegotiableMOQ: 1 -
Industrial Grade 10/100M Single Mode Fiber Optic Media Converter 1 Fiber 8 RJ45NegotiableMOQ: 1
-
10/100Mbps Fast Ethernet Fiber SC Port Single Mode Single Fiber Fiber Ethernet Media ConverterNegotiableMOQ: 1
-
10/100Mbs TX RX Netlink Media Transceiver HTB-3100A/B Ethernet Fiber Optic Media ConverterNegotiableMOQ: 1
-
HTB-1100S 10/100Mbps Single Mode Duplex Fiber Optical Fiber Media ConverterNegotiableMOQ: 1
Related Products
Product Description
LED |
Colour |
Function |
FX 100 |
Green |
Lit when 100Base-FX operation |
FX Link/ACT |
Green |
Lit when fiber cable connection with remote device is good. Bliks when any FX traffic is present |
Power |
Green |
Lit when +5V Power is available |
FDX/Col |
Green |
Lit when full duplex mode is enabled. Blinking when collision is present |
TX 100 |
Green |
Lit when 100Base-TX cable operation |
TX Link/ACT |
Green |
Lit when TP cable connection with remote device is good. Blinks when any traffic is present |
Product Description:
HTB -1100 is 10/100M adaptive fast Ethernet optical transceiver. It can achieve two different twisted-pair cable and optical fiber
transmission medium of transformation, relay base - TX 10/100 and 100 base - FX two different network segments, can satisfy the
long distance, high speed and high bandwidth fast Ethernet workgroup user needs.
Product Parameters:
Follow the IEEE 802.3, IEEE 802.3u and 100Base-FX standards

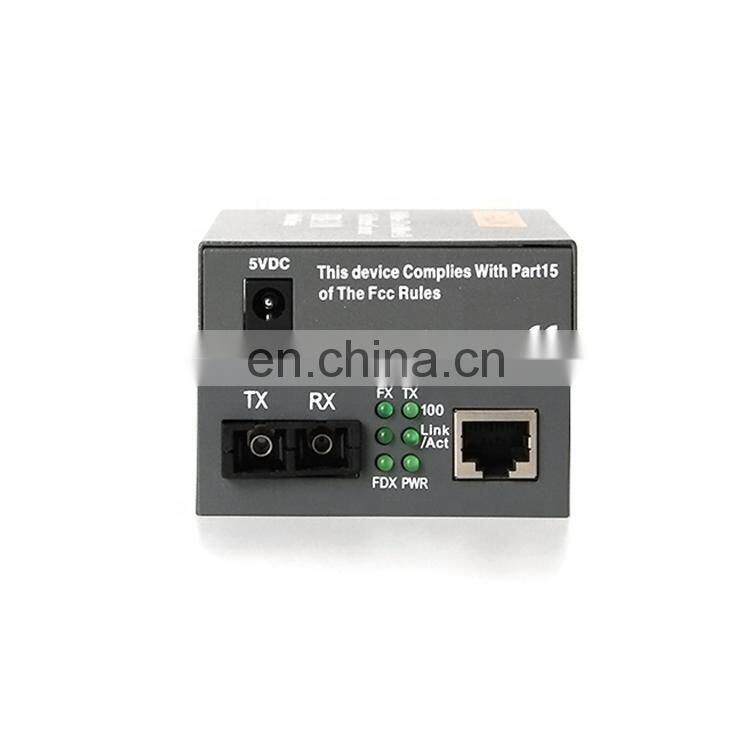

Provides a standard RJ45 interface and two SC fiber interface
LED: Power,FDX/Col,FX link/Act,TX Link/Act,Fx 100,TX 100.
Duplex Mode:Full or Half Duplex Mode
Data transfer rate: 10/100Mbps data transfer rate
Power Requirement: AC 100-240V 50/60HZ DC 5V/2A
Ambient Temperature: 0 to 70 degree
Humidity: 5 per cent to 90 per cent
Dimensions:40*100*140mm
Cable:UTP:Cat.5 UTP Cable
Details:
Fiber Type Multimode
Duplex SC fiber optic interface type
Transmission distance 2Km
Min TX PWR:-17.0dBm
Max TX PWR: -8.0dBm
Sensitivity:-31.0dBm
Link Budget:14.0dBm
