Manufacturer Price Single Mode 6 Core ADSS Fiber Optic Cable Price Per Meter High Qualiy
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2014
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
All Dielectric Self-supporting Single Mode ADSS Cable 16 Core Fiber Optic Cable High QualityNegotiableMOQ: 1 -
Outdoor Self Supporting ADSS Cable 16 Core Single Mode Fiber Optic Cable High QualityNegotiableMOQ: 1
-
All Dielectric Self-supporting ADSS Cable 32 Core Single Mode Fiber Optic CableNegotiableMOQ: 1
-
12/24/36/48 Core All-Dielectric Self-Supporting Aerial ADSS Fiber Optic Cable High QualityNegotiableMOQ: 1
-
Outdoor FTTH Flat Drop Cable Single Mode Lszh Fiber Optical Drop Cable 1 CoreNegotiableMOQ: 1
Recommend Products
Product Description
Product description:

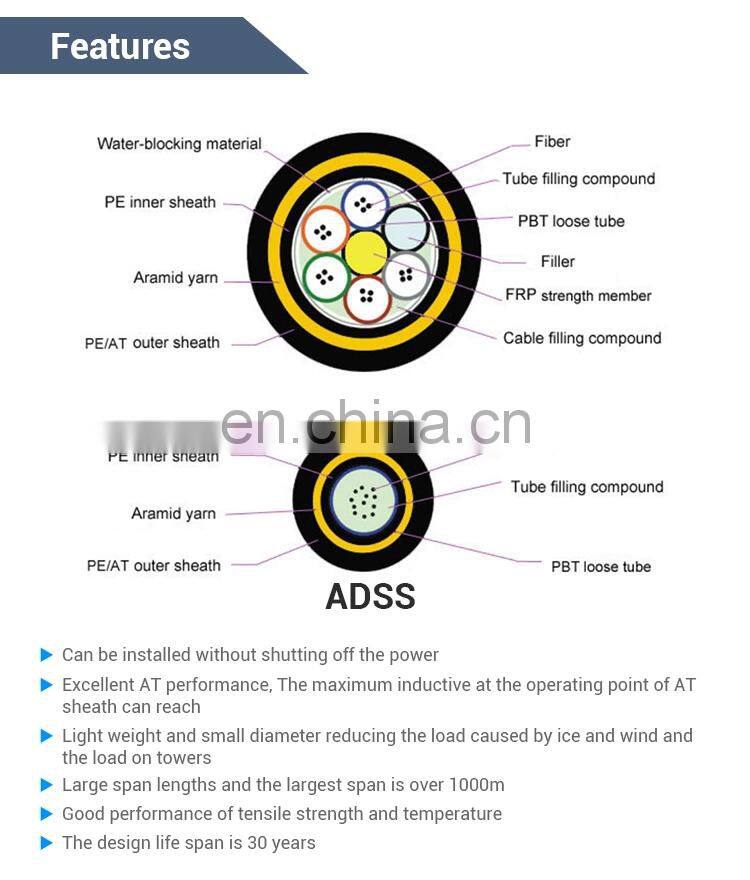

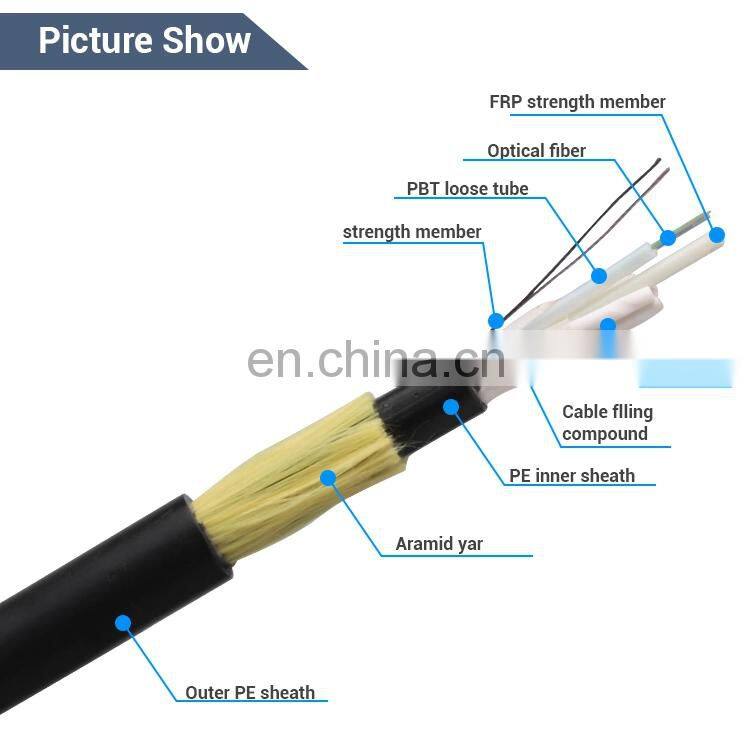

The ADSS cable is loosely wound and the 250μm fiber is placed in a loose tube made of high modulus material. The loose tube is filled with waterproof compound. The loose tube (and the filling rope) is twisted around a non-metallic center reinforcing core (FRP) into a compact core with a gap between the core and a water-blocking paste. The outer core of the cable is extruded into a polyethylene (PE) inner sheath, and then the reinforced aramid is twisted, and finally a polyethylene (PE) outer sheath or an electrical tracking (AT) outer sheath is extruded.
Features:
· Can be erected continuously.
· With AT sheath, it has excellent resistance to electric tracking.
· Light weight and small cable diameter reduce the impact of ice, wind and load on towers and supports.
· Large span with a maximum span of more than 1000m.
· Excellent tensile and temperature properties.
· Life expectancy can be up to 30 years.
The ADSS cable is loosely wound and the 250μm fiber is placed in a loose tube made of high modulus material. The loose tube is filled with waterproof compound. The loose tube (and the filling rope) is twisted around a non-metallic center reinforcing core (FRP) into a compact core with a gap between the core and a water-blocking paste. The outer core of the cable is extruded into a polyethylene (PE) inner sheath, and then the reinforced aramid is twisted, and finally a polyethylene (PE) outer sheath or an electrical tracking (AT) outer sheath is extruded.
Features:
· Can be erected continuously.
· With AT sheath, it has excellent resistance to electric tracking.
· Light weight and small cable diameter reduce the impact of ice, wind and load on towers and supports.
· Large span with a maximum span of more than 1000m.
· Excellent tensile and temperature properties.
· Life expectancy can be up to 30 years.
Ref.outer diameter (mm) | Ref.weight (kg/km) | Ref.daily ing tension (kN) | Max allowable working tension (kN) | Break strength (kN) | Strength member CSA | Modulus of elasticity kN/ mm2 | Heat expansion coefficient ×10-6 /k | ||
12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 | |
13 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 | |
13.3 | 137 | 148 | 3 | 8 | 20 | 10.35 | 9.45 | 1.3 | |
13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 | |
13.8 | 147 | 159 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1 | |
14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 | |
14.9 | 171 | 185 | 6.75 | 18 | 45 | 22 | 16.4 | 0.6 | |
15.1 | 179 | 193 | 7.95 | 22 | 53 | 26.4 | 18 | 0.3 | |
15.5 | 190 | 204 | 9 | 26 | 60 | 32.2 | 19.1 | 0.1 | |
15.6 | 194 | 208 | 10.5 | 28 | 70 | 33 | 19.6 | 0.1 | |
16.3 | 211 | 226 | 12.75 | 34 | 85 | 40 | 20.1 | 0.1 | |
16.8 | 226 | 242 | 15.45 | 41 | 103 | 48 | 24 | -0.4 | |
17.2 | 236 | 253 | 16.2 | 45 | 108 | 51 | 25.1 | -0.5 | |
17.9 | 249 | 266 | 18 | 50 | 120 | 58.8 | 26.1 | -0.8 | |
