All Dielectric Self-supporting Single Mode ADSS Cable 16 Core Fiber Optic Cable high quality

Name: All Dielectric Self-supporting Single Mode ADSS Cable 16 Core Fiber Optic Cable high quality
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Recommend Products

Product Description

Product description:

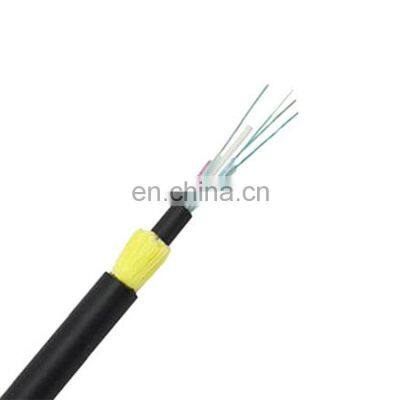

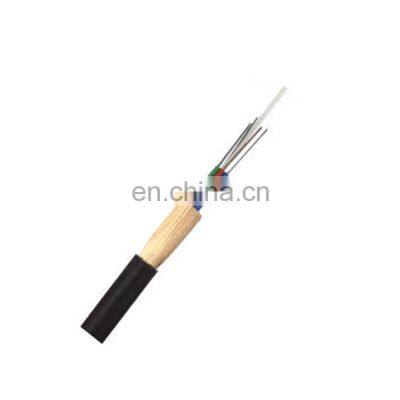

The ADSS cable is loosely wound and the 250μm fiber is placed in a loose tube made of high modulus material. The loose tube is filled with waterproof compound. The loose tube (and the filling rope) is twisted around a non-metallic center reinforcing core (FRP) into a compact core with a gap between the core and a water-blocking paste. The outer core of the cable is extruded into a polyethylene (PE) inner sheath, and then the reinforced aramid is twisted, and finally a polyethylene (PE) outer sheath or an electrical tracking (AT) outer sheath is extruded.

Features:
· Can be erected continuously.
· With AT sheath, it has excellent resistance to electric tracking.
· Light weight and small cable diameter reduce the impact of ice, wind and load on towers and supports.
· Large span with a maximum span of more than 1000m.
· Excellent tensile and temperature properties.
· Life expectancy can be up to 30 years.

Ref.outer diameter (mm)	Ref.weight (kg/km)			Ref.daily ing tension (kN)	Max allowable working tension (kN)	Break strength (kN)	Strength member CSA	Modulus of elasticity kN/ mm2	Heat expansion coefficient ×10-6 /k
12.5	125	136	1.5	4	10	4.6	7.6	1.8
13	132	142	2.25	6	15	7.6	8.3	1.5
13.3	137	148	3	8	20	10.35	9.45	1.3
13.6	145	156	3.6	10	24	13.8	10.8	1.2
13.8	147	159	4.5	12	30	14.3	11.8	1
14.5	164	177	5.4	15	36	18.4	13.6	0.9
14.9	171	185	6.75	18	45	22	16.4	0.6
15.1	179	193	7.95	22	53	26.4	18	0.3
15.5	190	204	9	26	60	32.2	19.1	0.1
15.6	194	208	10.5	28	70	33	19.6	0.1
16.3	211	226	12.75	34	85	40	20.1	0.1
16.8	226	242	15.45	41	103	48	24	-0.4
17.2	236	253	16.2	45	108	51	25.1	-0.5
17.9	249	266	18	50	120	58.8	26.1	-0.8

Company Introduction

Shanghai Tanghu Optical Fiber Equipment Co., Ltd. is a high-tech enterprise specializing in the production of optical
communication products, with nearly 20 years of industry experience.At present, the company has passed the ISO9001 certification,has two production bases in Shenzhen and Xuzhou, and has a large modern warehouse in Shanghai.The company covers an area of 20000 m2, with more than 500 employees and annual sales of more than 300 million RMB.

Company has roboticized production and testing equipment, since its inception, the company has been committed to product innovation and R&D, the products include cable, patch cord, optical transceiver, POE switch, OPM, VFL, optical fiber fusion splicer, optical divider, fiber boxes, etc., which are widely used in the plot construction of campus network, security, monitoring, radio and television transmission, FTTH, etc.

The products are exported in large quantities to more than 60 countries and regions including the USA, Australia, India, Russia, Brazil and South Africa and so on, providing innovative technologies and product solutions for global telecom operators and enterprise network customers, and enabling users around the world to enjoy all-round communication such as voice, data, multimedia and wireless broadband.

Certifications

Exhibition

Customer feedback

FAQ

Q: What about delivery time?

A: We have big warehouses in Shanghai, also in Shenzhen factory, providing instant delivery service. Most products can be
delivered within 3~7 days.

Q: What is your warranty period?

A: We provide one year of unconditional warranty on our products for the manufacturing defects.

Q: Why should we buy from you?

A: We are committed to provide best quality products at minimum delivery time and competitive price. We believe this is what customer wants. We are satisfied until customers are.

Q: Can you provide OEM, ODM service?

A: Yes. We have factories in Shenzhen and Xuzhou, we can make products according to your requirements.

Q: Do you provide free samples?

A: Yes, but the buyer should bear the shipping costs.

Q: What is your payment terms?
A: We accept Alibaba Trade Assurance, Western Union, Paypal, T/T, L/C, etc.
