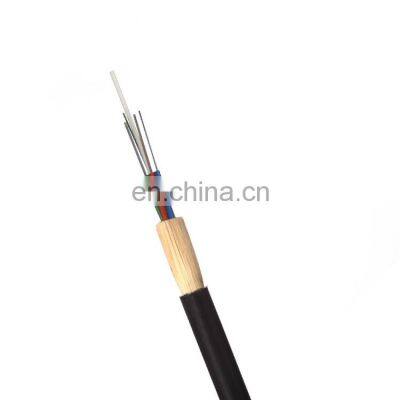

Outdoor Self Supporting ADSS Cable 16 Core Single Mode Fiber Optic Cable high quality

Name: Outdoor Self Supporting ADSS Cable 16 Core Single Mode Fiber Optic Cable high quality
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Recommend Products

Product Description

Product description:
The ADSS cable is loosely wound and the 250μm fiber is placed in a loose tube made of high modulus material. The loose tube is filled with waterproof compound. The loose tube (and the filling rope) is twisted around a non-metallic center reinforcing core (FRP) into a compact core with a gap between the core and a water-blocking paste. The outer core of the cable is extruded into a polyethylene (PE) inner sheath, and then the reinforced aramid is twisted, and finally a polyethylene (PE) outer sheath or an electrical tracking (AT) outer sheath is extruded.

Features:
· Can be erected continuously.
· With AT sheath, it has excellent resistance to electric tracking.
· Light weight and small cable diameter reduce the impact of ice, wind and load on towers and supports.
· Large span with a maximum span of more than 1000m.
· Excellent tensile and temperature properties.
· Life expectancy can be up to 30 years.

Ref.outer diameter (mm)	Ref.weight (kg/km)			Ref.daily ing tension (kN)	Max allowable working tension (kN)	Break strength (kN)	Strength member CSA	Modulus of elasticity kN/ mm2	Heat expansion coefficient ×10-6 /k
12.5	125	136	1.5	4	10	4.6	7.6	1.8
13	132	142	2.25	6	15	7.6	8.3	1.5
13.3	137	148	3	8	20	10.35	9.45	1.3
13.6	145	156	3.6	10	24	13.8	10.8	1.2
13.8	147	159	4.5	12	30	14.3	11.8	1
14.5	164	177	5.4	15	36	18.4	13.6	0.9
14.9	171	185	6.75	18	45	22	16.4	0.6
15.1	179	193	7.95	22	53	26.4	18	0.3
15.5	190	204	9	26	60	32.2	19.1	0.1
15.6	194	208	10.5	28	70	33	19.6	0.1
16.3	211	226	12.75	34	85	40	20.1	0.1
16.8	226	242	15.45	41	103	48	24	-0.4
17.2	236	253	16.2	45	108	51	25.1	-0.5
17.9	249	266	18	50	120	58.8	26.1	-0.8
