1.25G BiDi SFP 1310/1550 40KM Optic Module
- T/T Credit Card
You May Like
-
Wholesale Price SFP 1.25G 1550nm 60/80/120KM Optical Module
-
1.25G SFP 1310nm 20Km Optic Transceiver Module
-
300M 850nm 10G SFP+ SR MM 300M LC DOM Optical Module
-
10G SFP+ SR Moilti-mode 300M 850nm LC DOM Optical Module
-
3.0M QSFP28 OM3 AOC Active Optical Cable 2M 5M 10M Customized QSFPS Fiber Cable
-
10G Copper SFP 10G SFP+ Module With RJ45 Connector
Product Description

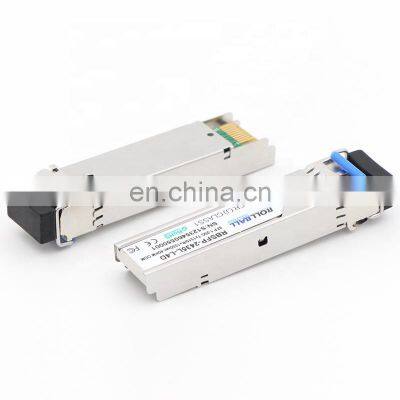

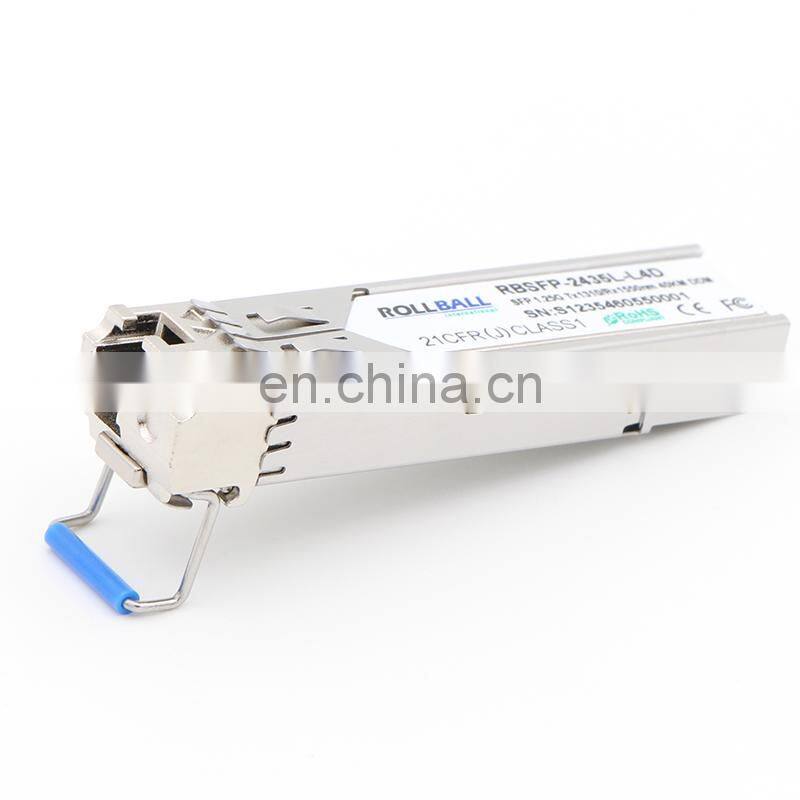

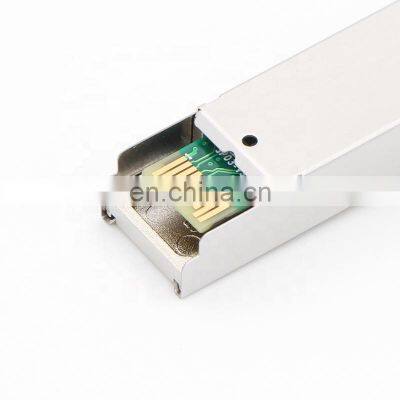

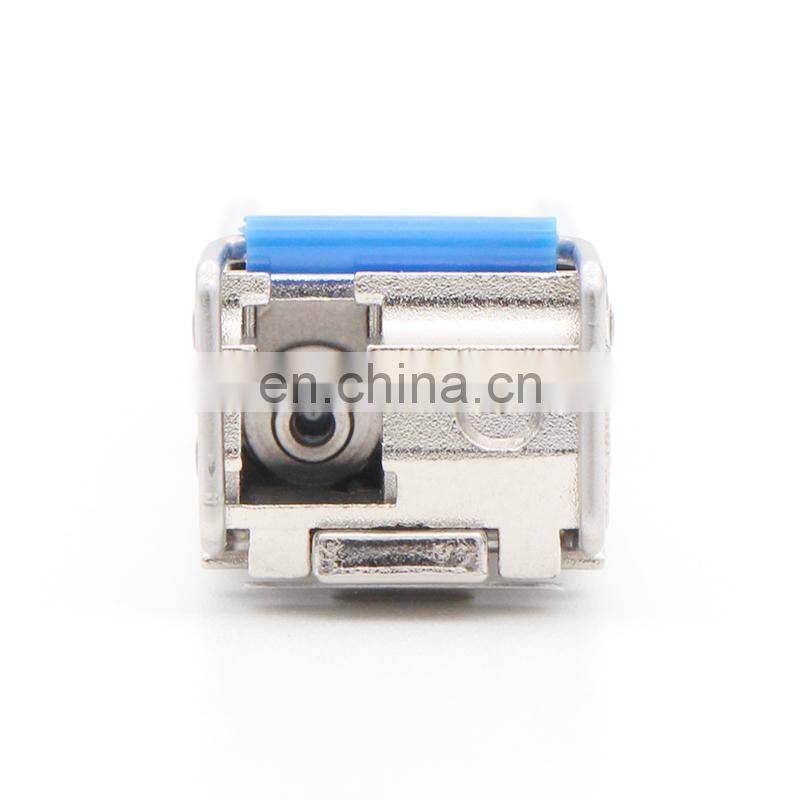

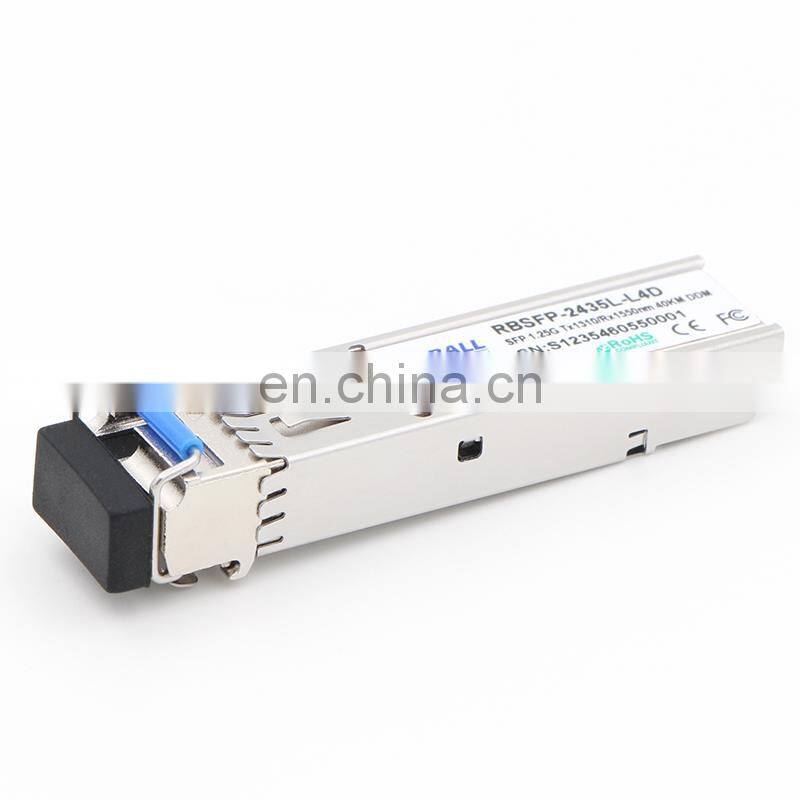

Product Pictures:
1.Description:
1).The sfp bidi single fiber are high performance, cost effective modules supporting data-rate of 1.25gbps and up to 40km transmission distance with SMF
2).The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
3).The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Features:
1).Up to 1.25Gbps data-rate
2).Transmission distance up to 40km
3).1310/1550nm or 1310/1490nm is optional
4).Compliant with SFP MSA and SFF-8472 with simplex LC/SC receptacle
5).Digital Diagnostic Monitoring:
6).Internal Calibrationor External Calibration
7).Compatible with RoHS
8).+3.3V single power supply
9).Operating case temperature:
10).Standard : 0 to +70°C
Applications:
1).SDH STM-1, S-1.1,L-1.1, L-1.2
2).SONET OC-3 IR1,LR1,LR2
3).Other optical links
Ordering Information:




More to list...
Compatible Brand:
More Products:
Certifications:
Our Company:
Rollball Comm-tech, established in 2000,located in Shenzhen China,specializes in providing high-performance fiber optic communication products and accessories for telecommunication, broadcast, CATV and network industries worldwide for 8 years.
Supplying fiber patch cord, pigtail ,fiber optic splitter,Transceiver,POE switch,Media converter, Fiber optics,OADM and CWDM DWDM MUX/DEMUX etc.
At Rollball, we believe that quality is essential to the company's success. As a result, we strictly monitor our ISO 9001:2000-certified production processes. Also, we inspect every aspect of production, from raw material examination to final inspections and shipping.
Shipping:
If you have any question feel free to contact us.
