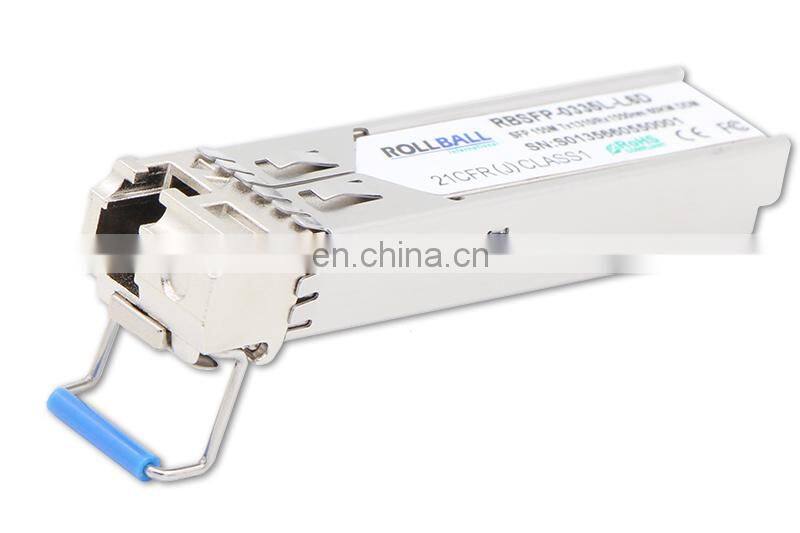

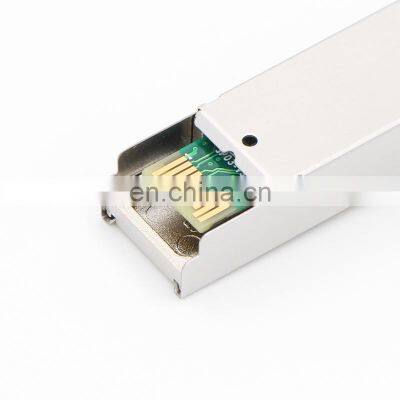

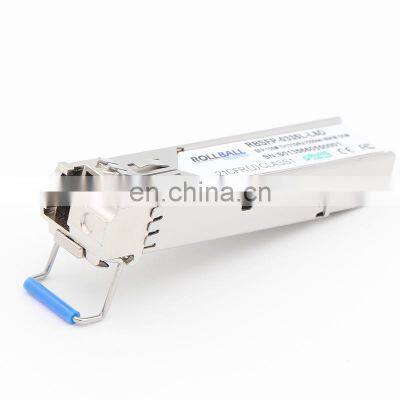

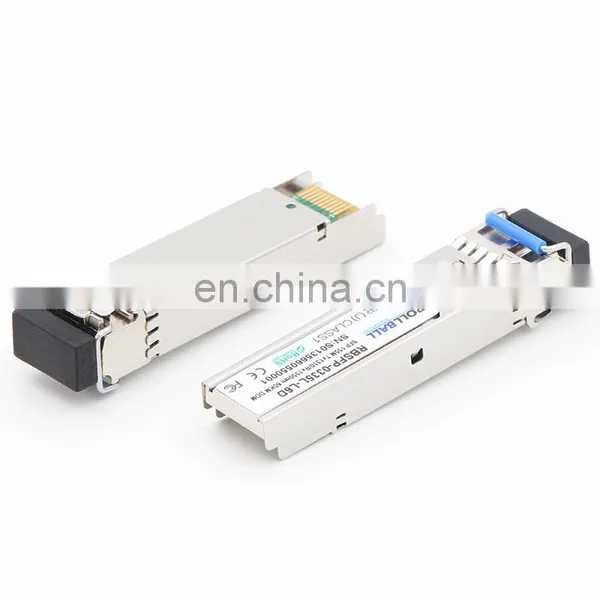

WDM BIDI SFP 155M 1310/1550nm 60km LC/SC Dom Module
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2004
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
155M BIDI SFP 1310/1490nm 40km LC Dom ModuleNegotiableMOQ: 1 -
1.25G SFP BIDI 2km 1310nm-TX/1550nm-RX 2km Simplex SC DOM ModuleNegotiableMOQ: 1
-
Fiber Optical 125M 10/100BASE-T SFP Copper RJ-45 100m Module TransceiverNegotiableMOQ: 1
-
1.25G SFP CWDM 100km 120km SMF LC Dual DOM ModulesNegotiableMOQ: 1
-
1.25G 20km Sfp With OtdrNegotiableMOQ: 1
155M BIDI SFP 1310/1550nm sfp simplex LC 60km dom transceiver module
Description
- The SFP BIDI transceivers are high performance, cost effective modules supporting 155Mbps data-rate and 60km transmission distance with SMF.
- The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Main Features
- Up to 155Mbps data-rate
- 1550nm FP laser and PIN photo detector for 60km transmission
- 1310nm FP laser and PIN photo detector for 60km transmission
- BIDI LC/UPC type pluggable optical interface
- Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
- RoHS compliant and lead-free
- Single +3.3V power supply
- Support Digital Diagnostic Monitoring interface
- Compliant with SFF-8472
- Case operating temperature
Commercial: 0°C to +70°C
Extended: -10°C to +80°C
Industrial: -40°C to +85°C
Applications
- SDH STM-1, S-1.1,L-1.1, L-1.2
- SONET OC-3 IR1,LR1,LR2
- Other Optical Links
Product List
| SFP (155M/622M/1.25G/2.125G/2.5G/4.25G) without DDMI | |||||||
| RSFP-0385M-02 | 155M | 850 | MM | 2KM | SFP | 0~70 | 850nm VCSEL |
| RSFP-0331M-02 | 155M | 1310 | MM | 2KM | SFP | 0~70 | FP(LED)+PIN |
| RSFP-0331S-L2 | 155M | 1310 | SM | 20KM | SFP | 0~70 | FP+PIN |
| RSFP-0331S-L4 | 155M | 1310 | SM | 40KM | SFP | 0~70 | FP+PIN |
| RSFP-0355S-L8 | 155M | 1550 | SM | 80KM | SFP | 0-70 | DFB+PIN |
| RSFP-1231S-L2 | 622M | 1310 | SM | 20KM | SFP | 0~70 | FP+PIN |
| RSFP-1231S-L4 | 622M | 1310 | SM | 40KM | SFP | 0~70 | DFB+PIN |
| RSFP-1255S-L6 | 622M | 1550 | SM | 60KM | SFP | 0~70 | DFB+PIN |
| RSFP-1255S-L8 | 622M | 1550 | SM | 80KM | SFP | 0~70 | DFB+PIN |
| RSFP-2485M-S5 | 1.25G | 850 | MM | 550M | SFP | 0~70 | VSCEL+PIN |
| RSFP-2431S-L2 | 1.25G | 1310 | SM | 20KM | SFP | 0~70 | FP+PIN |
| RSFP-2431S-L4 | 1.25G | 1310 | SM | 40KM | SFP | 0~70 | DFB+PIN |
| RSFP-2455S-L6 | 1.25G | 1550 | SM | 60KM | SFP | 0~70 | DFB+PIN |
| RSFP-2455S-L8 | 1.25G | 1550 | SM | 80KM | SFP | 0~70 | DFB+PIN |
| RSFP-2455S-12 | 1.25G | 1550 | SM | 120KM | SFP | 0~70 | DFB+APD |
| RSFP-4885M-S3 | 2.125G/2.5G | 850 | MM | 300M | SFP | 0~70 | VSCEL+PIN |
| RSFP-4831S-02 | 2.125G/2.5G | 1310 | SM | 2KM | SFP | 0~70 | FP+PIN |
| RSFP-4831S-L2 | 2.125G/2.5G | 1310 | SM | 20KM | SFP | 0~70 | DFB+PIN |
| RSFP-4855S-L6 | 2.125G/2.5G | 1550 | SM | 60KM | SFP | 0~70 | DFB+APD |
| RSFP-4855S-L8 | 2.125G/2.5G | 1550 | SM | 80KM | SFP | 0~70 | DFB+APD |
| SFP (155M/1.25G/2.125G/2.5G/4.25G) with DDMI | |||||||
| RSFP-0385M-02D | 155M | 850 | MM | 2KM | SFP | 0~70 | 850nm VCSEL |
| RSFP-0331M-02D | 155M | 1310 | MM | 2KM | SFP | 0~70 | FP(LED)+PIN |
| RSFP-0331S-L1D | 155M | 1310 | SM | 10KM | SFP | 0~70 | FP+PIN |
| RSFP-0331S-L4D | 155M | 1310 | SM | 40KM | SFP | 0~70 | FP+PIN |
| RSFP-0355S-L8D | 155M | 1550 | SM | 80KM | SFP | 0-70 | DFB+PIN |
| RSFP-1231S-L2D | 622M | 1310 | SM | 20KM | SFP | 0~70 | FP+PIN |
| RSFP-1231S-L4D | 622M | 1310 | SM | 40KM | SFP | 0~70 | DFB+PIN |
| RSFP-2485M-S5D | 1.25G | 850 | MM | 550M | SFP | 0~70 | VSCEL+PIN |
| RSFP-2431S-L2D | 1.25G | 1310 | SM | 20KM | SFP | 0~70 | FP+PIN |
| RSFP-2431S-L4D | 1.25G | 1310 | SM | 40KM | SFP | 0~70 | DFB+PIN |
| RSFP-2455S-L6D | 1.25G | 1550 | SM | 60KM | SFP | 0~70 | DFB+PIN |
| RSFP-2455S-L8D | 1.25G | 1550 | SM | 80KM | SFP | 0~70 | DFB+PIN |
| RSFP-2455S-12D | 1.25G | 1550 | SM | 120KM | SFP | 0~70 | DFB+APD |
| RSFP-4885M-S3D | 2.125G/2.5G | 850 | MM | 300M | SFP | 0~70 | VSCEL+PIN |
| RSFP-4831S-02D | 2.125G/2.5G | 1310 | SM | 2KM | SFP | 0~70 | FP+PIN |
| RSFP-4831S-L2D | 2.125G/2.5G | 1310 | SM | 20KM | SFP | 0~70 | DFB+PIN |
| RSFP-4831S-L4D | 2.125G/2.5G | 1310 | SM | 40KM | SFP | 0~70 | DFB+APD |
| RSFP-4855S-L6D | 2.125G/2.5G | 1550 | SM | 60KM | SFP | 0~70 | DFB+APD |
| RSFP-4855S-L8D | 2.125G/2.5G | 1550 | SM | 80KM | SFP | 0~70 | DFB+APD |
| RSFP-4855-12D | 2.125G/2.5G | 1550 | SM | 120KM | SFP | 0~70 | DFB+APD |
| RSFP-4G85M-S5D | 4.25G | 850 | MM | 500M | SFP | 0~70 | VSCEL+PIN |
| RSFP-4G31S-L1D | 4.25G | 1310 | SM | 10km | SFP | 0~70 | DFB+PIN |
| RSFP-4G31S-L3D | 4.25G | 1310 | SM | 30km | SFP | -20~85 | DFB+PIN |
| RSFP-4G31S-02D | 4.25G | 1310 | SM | 2KM | SFP | -20~85 | FP+PIN |
