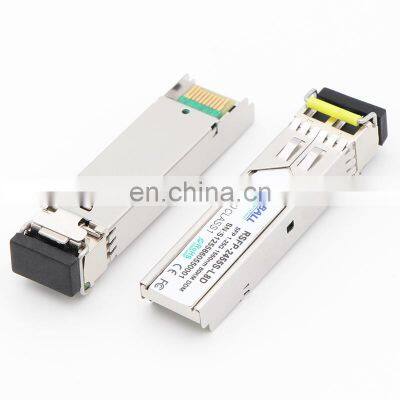

Huawei Compatible 1.25G 1550nm 80km sfp transceiver module





1.Product Description

The small form-factor pluggable (sfp transceiver ) is a compact, hot-pluggable transceiver used for both telecommunication and data communications applications. The form factor and electrical interface are specified by a multi-source agreement (MSA). It interfaces a network device motherboard (for a switch, router, media converter or similar device) to a fiber optic or copper networking cable. It is a popular industry format jointly developed and supported by many network component vendors.





2,Application

SFP sockets are found in Ethernet switches and network interface cards.

Storage interface cards

supporting different speeds such as 2Gb, 4Gb, and 8Gb

SFP Module provides a connection to different types of optical fiber



3.Spcifications



  • for multi-mode fiber, with black or beigeextraction lever
    • SX - 850 nm, for a maximum of 550 m at 1.25 Gbit/s (Gigabit Ethernet) or 150m at 4.25 Gbit/s (Fibre Channel)
  • for single-mode fiber, with blueextraction lever
    • LX - 1310 nm, for distances up to 10 km
    • EX - 1310 nm, for distances up to 40 km
    • ZX - 1550 nm, for distances up to 80 km
    • EZX - 1550 nm, for distances up to 120 km
    • BX - 1490 nm/1310 nm
    • 1550 nm 40 km (XD), 80 km (ZX), 120 km (EX or EZX)
    • SFSW – Single Fiber Single Wavelength transceivers, for bi-directional traffic on a single fiber.
    • CWDM and DWDMtransceivers at various wavelengths achieving various maximum distancesfor copper twisted pair cabling
  • for copper twisted pair cabling
    • 1000BASE-T - these modules incorporate significant interface circuitry and can only be used for Gigabit Ethernet

 4.Product list

Part Number Data Rate Wavelenth   Distance Package Temp. Source
SFP (155M/622M/1.25G/2.125G/2.5G/4.25G) without DDMI
RSFP-0385M-02 155M 850 MM 2KM SFP 0~70 850nm VCSEL
RSFP-0331M-02 155M 1310 MM 2KM SFP 0~70 FP(LED)+PIN
RSFP-0331S-L2 155M 1310 SM 20KM SFP 0~70 FP+PIN
RSFP-0331S-L4 155M 1310 SM 40KM SFP 0~70 FP+PIN
RSFP-0355S-L8 155M 1550 SM 80KM SFP 0-70 DFB+PIN
RSFP-1231S-L2 622M 1310 SM 20KM SFP 0~70 FP+PIN
RSFP-1231S-L4 622M 1310 SM 40KM SFP 0~70 DFB+PIN
RSFP-1255S-L6 622M 1550 SM 60KM SFP 0~70 DFB+PIN
RSFP-1255S-L8 622M 1550 SM 80KM SFP 0~70 DFB+PIN
RSFP-2485M-S5 1.25G 850 MM 550M SFP 0~70 VSCEL+PIN
RSFP-2431S-L2 1.25G 1310 SM 20KM SFP 0~70 FP+PIN
RSFP-2431S-L4 1.25G 1310 SM 40KM SFP 0~70 DFB+PIN
RSFP-2455S-L6 1.25G 1550 SM 60KM SFP 0~70 DFB+PIN
RSFP-2455S-L8 1.25G 1550 SM 80KM SFP 0~70 DFB+PIN
RSFP-2455S-12 1.25G 1550 SM 120KM SFP 0~70 DFB+APD
RSFP-4885M-S3 2.125G/2.5G 850 MM 300M SFP 0~70 VSCEL+PIN
RSFP-4831S-02 2.125G/2.5G 1310 SM 2KM SFP 0~70 FP+PIN
RSFP-4831S-L2 2.125G/2.5G 1310 SM 20KM SFP 0~70 DFB+PIN
RSFP-4855S-L6 2.125G/2.5G 1550 SM 60KM SFP 0~70 DFB+APD
RSFP-4855S-L8 2.125G/2.5G 1550 SM 80KM SFP 0~70 DFB+APD
SFP (155M/1.25G/2.125G/2.5G/4.25G) with DDMI
RSFP-0385M-02D 155M 850 MM 2KM SFP 0~70 850nm VCSEL
RSFP-0331M-02D 155M 1310 MM 2KM SFP 0~70 FP(LED)+PIN
RSFP-0331S-L1D 155M 1310 SM 10KM SFP 0~70 FP+PIN
RSFP-0331S-L4D 155M 1310 SM 40KM SFP 0~70 FP+PIN
RSFP-0355S-L8D 155M 1550 SM 80KM SFP 0-70 DFB+PIN
RSFP-1231S-L2D 622M 1310 SM 20KM SFP 0~70 FP+PIN
RSFP-1231S-L4D 622M 1310 SM 40KM SFP 0~70 DFB+PIN
RSFP-2485M-S5D 1.25G 850 MM 550M SFP 0~70 VSCEL+PIN
RSFP-2431S-L2D 1.25G 1310 SM 20KM SFP 0~70 FP+PIN
RSFP-2431S-L4D 1.25G 1310 SM 40KM SFP 0~70 DFB+PIN
RSFP-2455S-L6D 1.25G 1550 SM 60KM SFP 0~70 DFB+PIN
RSFP-2455S-L8D 1.25G 1550 SM 80KM SFP 0~70 DFB+PIN
RSFP-2455S-12D 1.25G 1550 SM 120KM SFP 0~70 DFB+APD
RSFP-4885M-S3D 2.125G/2.5G 850 MM 300M SFP 0~70 VSCEL+PIN
RSFP-4831S-02D 2.125G/2.5G 1310 SM 2KM SFP 0~70 FP+PIN
RSFP-4831S-L2D 2.125G/2.5G 1310 SM 20KM SFP 0~70 DFB+PIN
RSFP-4831S-L4D 2.125G/2.5G 1310 SM 40KM SFP 0~70 DFB+APD
RSFP-4855S-L6D 2.125G/2.5G 1550 SM 60KM SFP 0~70 DFB+APD
RSFP-4855S-L8D 2.125G/2.5G 1550 SM 80KM SFP 0~70 DFB+APD
RSFP-4855-12D 2.125G/2.5G 1550 SM 120KM SFP 0~70 DFB+APD
RSFP-4G85M-S5D 4.25G 850 MM 500M SFP 0~70 VSCEL+PIN
RSFP-4G31S-L1D 4.25G 1310 SM 10km SFP 0~70 DFB+PIN
RSFP-4G31S-L3D 4.25G 1310 SM 30km SFP -20~85 DFB+PIN
RSFP-4G31S-02D 4.25G 1310 SM 2KM SFP -20~85 FP+PIN

 Huawei Compatible 1.25G 1550nm 80km sfp transceiver moduleHuawei Compatible 1.25G 1550nm 80km sfp transceiver moduleHuawei Compatible 1.25G 1550nm 80km sfp transceiver module
