Help Center1.25Gbps 1000BASE-PX20 1490/1310nm GEPON OLT SFP Class B+
Related Products
-
Mikrotik Compatible 10G Copper SFP 10GBASE-T RJ45 SFP ModuleNegotiableMOQ: 1 -
1.25G SFP MMF 850nm 550m Module Compatible MikrotikNegotiableMOQ: 1
-
1.25G/2.5G Epon Onu Sfp Transceiver 1310nm-Tx/1490nm-Rx 20km, WDM SC Port, Class B+, With MAC InsideNegotiableMOQ: 1
-
Tx1310nm 1.25G 20km Sfp ModuleNegotiableMOQ: 1
-
Compatible 10g Dwdm Sfp 15xx.xxnmNegotiableMOQ: 1

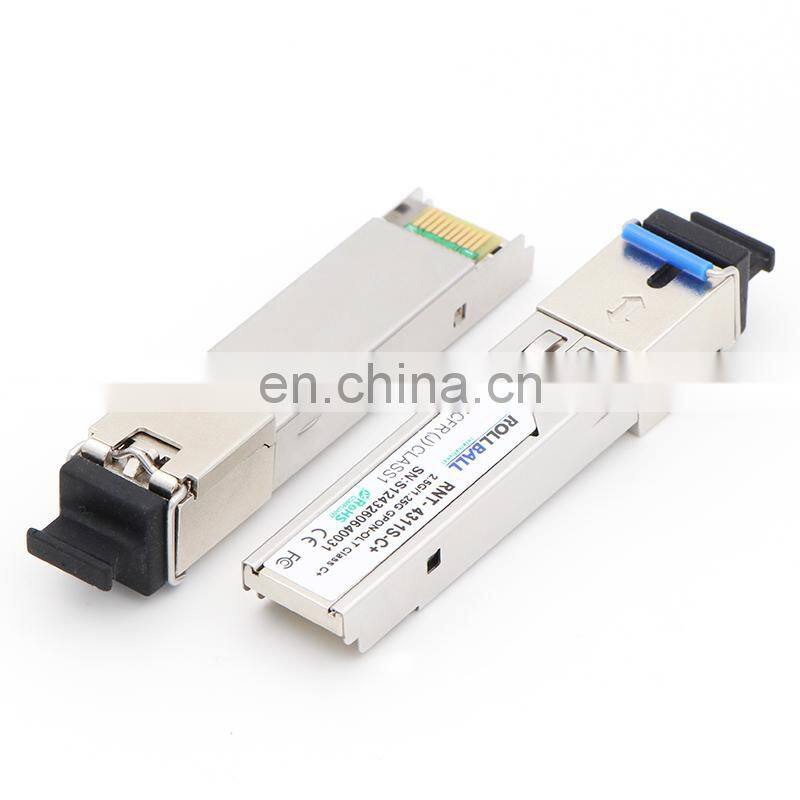

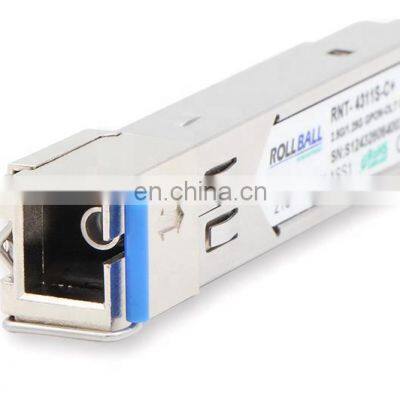

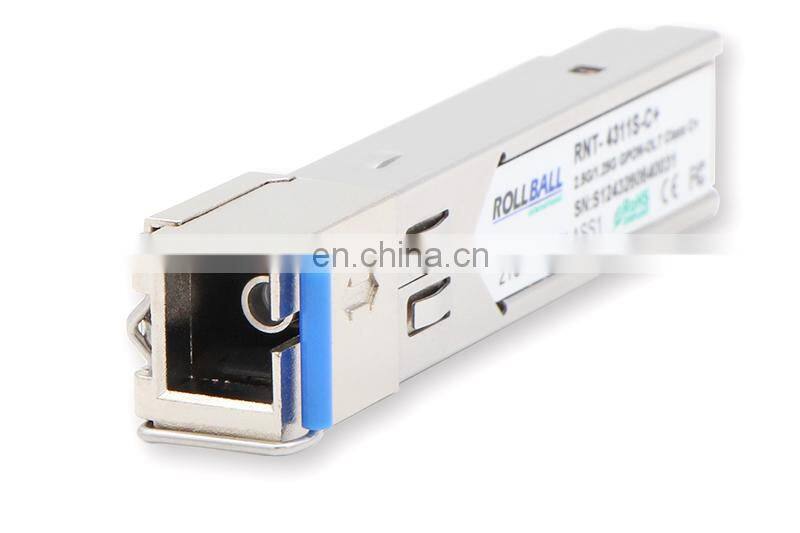

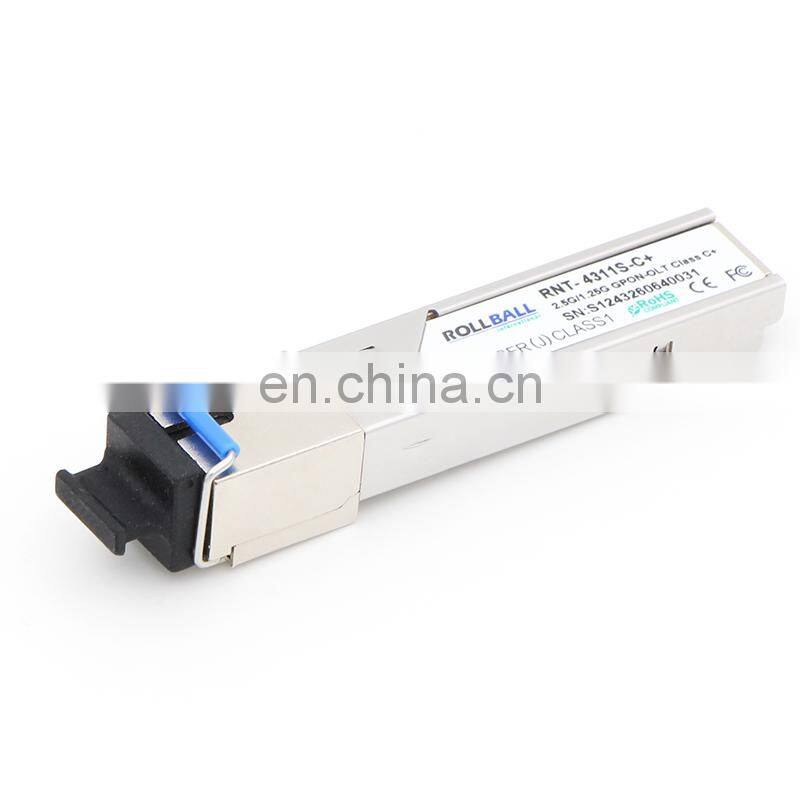

Product Pictures:
Features:
1.Single Fiber Transceiver with single mode SC receptacle
2.1490nm continuous-mode 1.25G/s transmitter with DFB laser
3.1310nm burst-mode 1.25G/s receiver with APD-TIA
4.Single 3.3V power supply
5.LVPECL compatible data input /output
6. Burst mode received signal strength indication (RSSI) output
7.Support more than 24dB dynamic range
8.Complies with IEEE Std 802.3ah™ -2004 1000BASE-PX20
9.Digital diagnostic interface compliant with SFF-8472 Rev 9.4 ,
10.Complies with RoHS directive (2002/95/EC)
11.Operating case temperature:
Standard : 0 to +70°C
General Description:
1.The RETP-4311S-E2CDB transceiver is the high performance module for single fiber by using 1490nm continuous-mode transmitter and 1310nm burst-mode receiver.
2.It is optical line terminal(OLT) for IEEE Std 802.3ah™ -2004 1000BASE-PX20. The optical transceiver is compliant with the Small Form- Factor Pluggable (SFP) Multi-Source Agreement (MSA).
3.The transmitter section uses a 1490nm DFB LD with automatic power control (APC) function and temperature compensation circuitry to ensure stable extinction ratio over all operating temperature range. and is ClassⅠlaser compliant IEC825 and CDRH standards.
4.The receiver has a hermetically packaged APD-TIA (trans-impedance amplifier) pre-amplifier and a limiting amplifier with LVPECL compatible differential outputs.
5.The receiver also supports burst mode RSSI output which is enabled by a trigger. Burst mode RSSI function can satisfy system the demand of monitoring the power from any ONU.
Applications:
* Ring topologies with fixed and reconfigurable OADMs
* Fast Ethernet, Giga Ethernet
* Fiber Channel

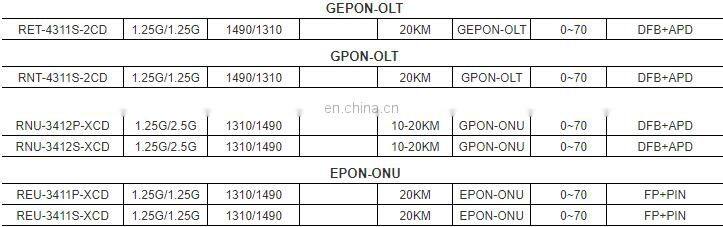

Ordering Information:
Certifications:
Our Company:
Rollball Comm-tech, established in 2000,located in Shenzhen China,specializes in providing high-performance fiber optic communication products and accessories for telecommunication, broadcast, CATV and network industries worldwide for 8 years.
Supplying fiber patch cord, pigtail ,fiber optic splitter,Transceiver,POE switch,Media converter, Fiber optics,OADM and CWDM DWDM MUX/DEMUX etc.
At Rollball, we believe that quality is essential to the company's success. As a result, we strictly monitor our ISO 9001:2000-certified production processes. Also, we inspect every aspect of production, from raw material examination to final inspections and shipping.
