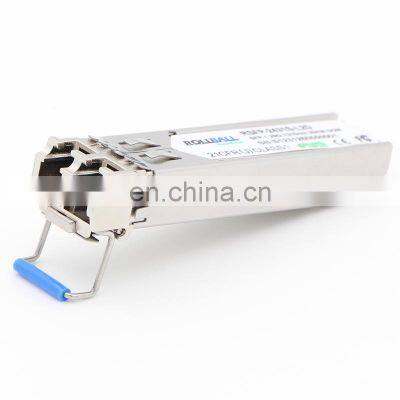

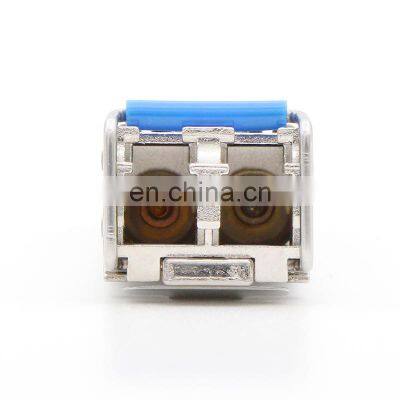

1.25G 1310nm 10km 20km 1000BASE-LX/LH 1.25G SFP Module Compatible With GLC-LH-SMD

1.25G 1310nm 10km 20km 1000BASE-LX/LH 1.25G SFP Module Compatible With GLC-LH-SMD thumbnail-1
1.25G 1310nm 10km 20km 1000BASE-LX/LH 1.25G SFP Module Compatible With GLC-LH-SMD thumbnail-2
1.25G 1310nm 10km 20km 1000BASE-LX/LH 1.25G SFP Module Compatible With GLC-LH-SMD thumbnail-3
1.25G 1310nm 10km 20km 1000BASE-LX/LH 1.25G SFP Module Compatible With GLC-LH-SMD thumbnail-4
1.25G 1310nm 10km 20km 1000BASE-LX/LH 1.25G SFP Module Compatible With GLC-LH-SMD thumbnail-5
1.25G 1310nm 10km 20km 1000BASE-LX/LH 1.25G SFP Module Compatible With GLC-LH-SMD photo-1
1.25G 1310nm 10km 20km 1000BASE-LX/LH 1.25G SFP Module Compatible With GLC-LH-SMD photo-2
1.25G 1310nm 10km 20km 1000BASE-LX/LH 1.25G SFP Module Compatible With GLC-LH-SMD photo-3
1.25G 1310nm 10km 20km 1000BASE-LX/LH 1.25G SFP Module Compatible With GLC-LH-SMD photo-4
1.25G 1310nm 10km 20km 1000BASE-LX/LH 1.25G SFP Module Compatible With GLC-LH-SMD photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2004
Annual Export Value:
US$10 Million - US$50 Million
Contact Supplier Request Quote Chat Now
Shenzhen Rollball Comm-Tech Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Nice price SFP 1310NM 10km 20km 1.25G SFP SMF Duplex LC DDM Module



Description

1.The sfp modules for  switches are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 0-120km transmission distance with SMF.

 2.The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

 3.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.





Main Features

1.Dual data-rate of 1.25Gbps/1.063Gbps operation

2.1310nm FP laser and PIN photodetector for 0-120km transmission

3.Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

4.Digital Diagnostic Monitoring: Internal Calibrationor External Calibration

5.Compatible with SONET OC-24-LR-1

6.Compatible with RoHS



 Applications

Gigabit Ethernet

Fiber Channel

Switch to Switch interface

Switched backplane applications

Router/Server interface

Other optical transmission systems



Product List

SFP (155M/622M/1.25G/2.125G/2.5G/4.25G) without DDMI
RSFP-0385M-02 155M 850 MM 2KM SFP 0~70 850nm VCSEL
RSFP-0331M-02 155M 1310 MM 2KM SFP 0~70 FP(LED)+PIN
RSFP-0331S-L2 155M 1310 SM 20KM SFP 0~70 FP+PIN
RSFP-0331S-L4 155M 1310 SM 40KM SFP 0~70 FP+PIN
RSFP-0355S-L8 155M 1550 SM 80KM SFP 0-70 DFB+PIN
RSFP-1231S-L2 622M 1310 SM 20KM SFP 0~70 FP+PIN
RSFP-1231S-L4 622M 1310 SM 40KM SFP 0~70 DFB+PIN
RSFP-1255S-L6 622M 1550 SM 60KM SFP 0~70 DFB+PIN
RSFP-1255S-L8 622M 1550 SM 80KM SFP 0~70 DFB+PIN
RSFP-2485M-S5 1.25G 850 MM 550M SFP 0~70 VSCEL+PIN
RSFP-2431S-L2 1.25G 1310 SM 20KM SFP 0~70 FP+PIN
RSFP-2431S-L4 1.25G 1310 SM 40KM SFP 0~70 DFB+PIN
RSFP-2455S-L6 1.25G 1550 SM 60KM SFP 0~70 DFB+PIN
RSFP-2455S-L8 1.25G 1550 SM 80KM SFP 0~70 DFB+PIN
RSFP-2455S-12 1.25G 1550 SM 120KM SFP 0~70 DFB+APD
RSFP-4885M-S3 2.125G/2.5G 850 MM 300M SFP 0~70 VSCEL+PIN
RSFP-4831S-02 2.125G/2.5G 1310 SM 2KM SFP 0~70 FP+PIN
RSFP-4831S-L2 2.125G/2.5G 1310 SM 20KM SFP 0~70 DFB+PIN
RSFP-4855S-L6 2.125G/2.5G 1550 SM 60KM SFP 0~70 DFB+APD
RSFP-4855S-L8 2.125G/2.5G 1550 SM 80KM SFP 0~70 DFB+APD
SFP (155M/1.25G/2.125G/2.5G/4.25G) with DDMI
RSFP-0385M-02D 155M 850 MM 2KM SFP 0~70 850nm VCSEL
RSFP-0331M-02D 155M 1310 MM 2KM SFP 0~70 FP(LED)+PIN
RSFP-0331S-L1D 155M 1310 SM 10KM SFP 0~70 FP+PIN
RSFP-0331S-L4D 155M 1310 SM 40KM SFP 0~70 FP+PIN
RSFP-0355S-L8D 155M 1550 SM 80KM SFP 0-70 DFB+PIN
RSFP-1231S-L2D 622M 1310 SM 20KM SFP 0~70 FP+PIN
RSFP-1231S-L4D 622M 1310 SM 40KM SFP 0~70 DFB+PIN
RSFP-2485M-S5D 1.25G 850 MM 550M SFP 0~70 VSCEL+PIN
RSFP-2431S-L2D 1.25G 1310 SM 20KM SFP 0~70 FP+PIN
RSFP-2431S-L4D 1.25G 1310 SM 40KM SFP 0~70 DFB+PIN
RSFP-2455S-L6D 1.25G 1550 SM 60KM SFP 0~70 DFB+PIN
RSFP-2455S-L8D 1.25G 1550 SM 80KM SFP 0~70 DFB+PIN
RSFP-2455S-12D 1.25G 1550 SM 120KM SFP 0~70 DFB+APD
RSFP-4885M-S3D 2.125G/2.5G 850 MM 300M SFP 0~70 VSCEL+PIN
RSFP-4831S-02D 2.125G/2.5G 1310 SM 2KM SFP 0~70 FP+PIN
RSFP-4831S-L2D 2.125G/2.5G 1310 SM 20KM SFP 0~70 DFB+PIN
RSFP-4831S-L4D 2.125G/2.5G 1310 SM 40KM SFP 0~70 DFB+APD
RSFP-4855S-L6D 2.125G/2.5G 1550 SM 60KM SFP 0~70 DFB+APD
RSFP-4855S-L8D 2.125G/2.5G 1550 SM 80KM SFP 0~70 DFB+APD
RSFP-4855-12D 2.125G/2.5G 1550 SM 120KM SFP 0~70 DFB+APD
RSFP-4G85M-S5D 4.25G 850 MM 500M SFP 0~70 VSCEL+PIN
RSFP-4G31S-L1D 4.25G 1310 SM 10km SFP 0~70 DFB+PIN
RSFP-4G31S-L3D 4.25G 1310 SM 30km SFP -20~85 DFB+PIN
RSFP-4G31S-02D 4.25G 1310 SM 2KM SFP -20~85 FP+PIN
