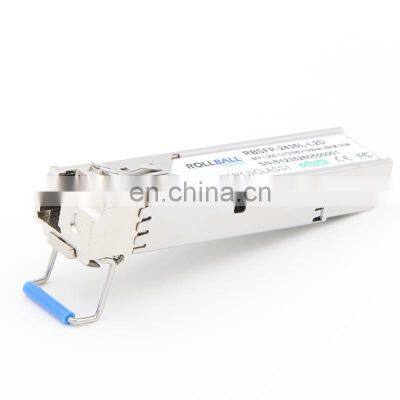

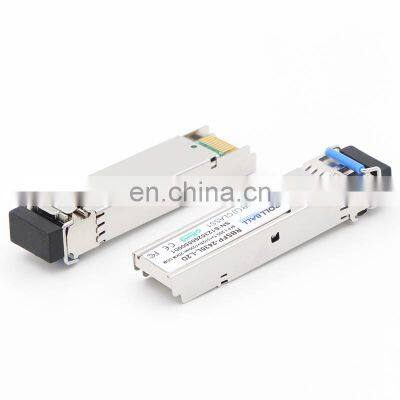

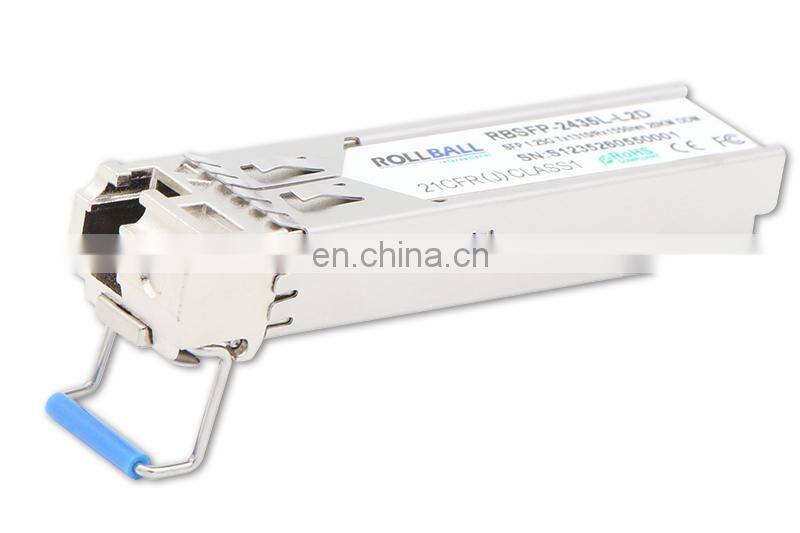

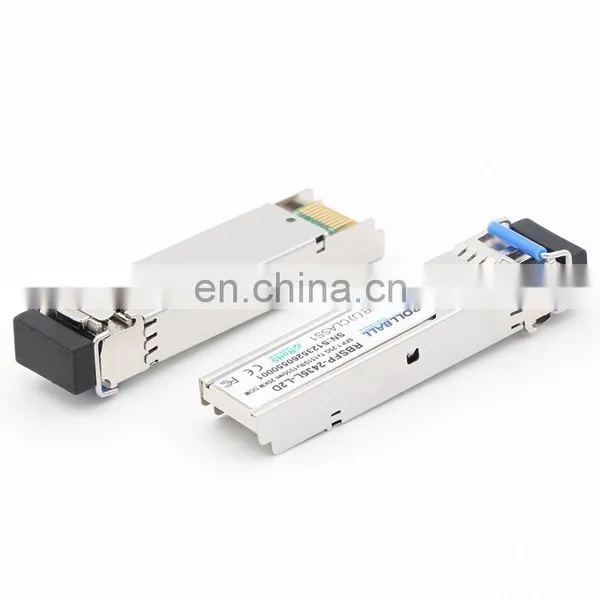

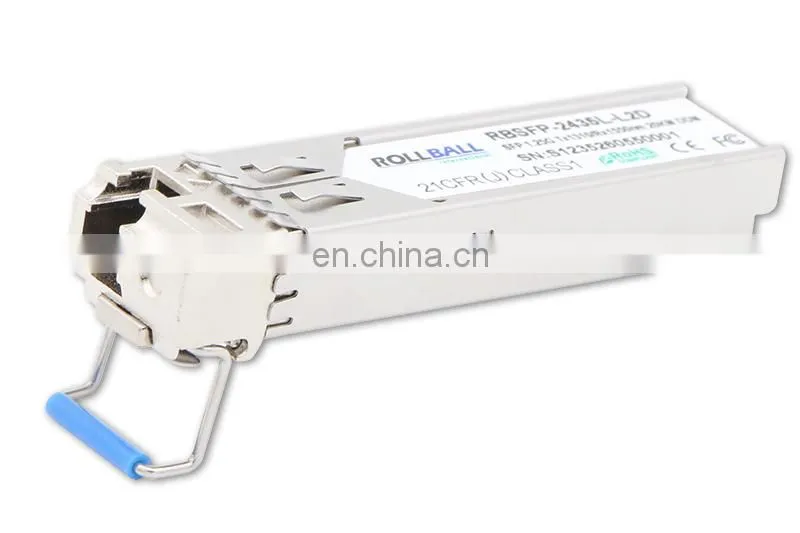

1.25G WDM BIDI SFP 10km 20km 1310/1550nm SMF Simplex LC Dom Transceiver Modules

1.25G WDM BIDI SFP 10km 20km 1310/1550nm SMF Simplex LC Dom Transceiver Modules thumbnail-3

1.25G WDM BIDI SFP 10km 20km 1310/1550nm SMF Simplex LC Dom Transceiver Modules thumbnail-4

1.25G WDM BIDI SFP 10km 20km 1310/1550nm SMF Simplex LC Dom Transceiver Modules thumbnail-5

1.25G WDM BIDI SFP 10km 20km 1310/1550nm SMF Simplex LC Dom Transceiver Modules photo-1

1.25G WDM BIDI SFP 10km 20km 1310/1550nm SMF Simplex LC Dom Transceiver Modules photo-2

1.25G WDM BIDI SFP 10km 20km 1310/1550nm SMF Simplex LC Dom Transceiver Modules photo-3

1.25G WDM BIDI SFP 10km 20km 1310/1550nm SMF Simplex LC Dom Transceiver Modules photo-4

1.25G WDM BIDI SFP 10km 20km 1310/1550nm SMF Simplex LC Dom Transceiver Modules photo-5

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Buying Office

Year Established:

2004

Annual Export Value:

US$10 Million - US$50 Million

Contact Supplier Request Quote Chat Now

Shenzhen Rollball Comm-Tech Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

1.25Gb/s BIDI SFP 1310/1550nm 10km, 20km SMF LC DOM transceiver module

Description

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of
1.25Gbps/1.0625Gbps and 10km 20km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a
trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety
requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further
information, please refer to SFP MSA..

Main Features

Dual data-rate of 1.25Gbps/1.063Gbps operation
1550nm DFB laser and PIN photodetector for 80km transmission
Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
Compatible with RoHS
+3.3V single power supply
Operating case temperature:
Standard : 0 to +70°C

Applications

Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems

Product List

RBSFP-2435L-02	1.25G	1310/1550	2KM	SFP	0~70	FP+PIN
RBSFP-2453L-02	1.25G	1550/1310	2KM	SFP	0~70	FP+PIN
RBSFP-2435L-L2	1.25G	1310/1550	0-20KM	SFP	0~70	FP+PIN
RBSFP-2453L-L2	1.25G	1550/1310	0-20KM	SFP	0~70	DFB+PIN
RBSFP-2434L-L2	1.25G	1310/1490	0-20KM	SFP	0~70	FP+PIN
RBSFP-2443L-L2	1.25G	1490/1310	0-20KM	SFP	0~70	DFB+PIN
RBSFP-2435L-L4	1.25G	1310/1550	40KM	SFP	0~70	DFB+PIN
RBSFP-2453L-L4	1.25G	1550/1310	40KM	SFP	0~70	DFB+PIN
RBSFP-2434L-L4	1.25G	1310/1490	40KM	SFP	0~70	DFB+PIN
RBSFP-2443L-L4	1.25G	1490/1310	40KM	SFP	0~70	DFB+PIN
RBSFP-2435-L6	1.25G	1310/1550	60KM	SFP	0~70	DFB+PIN
RBSFP-2453-L6	1.25G	1550/1310	60KM	SFP	0~70	DFB+APD
RBSFP-2445L-L6	1.25G	1490/1550	60KM	SFP	0~70	DFB+PIN
RBSFP-2454L-L6	1.25G	1550/1490	60KM	SFP	0~70	DFB+PIN
RBSFP-2445L-L8	1.25G	1490/1550	80KM	SFP	0~70	DFB+PIN
RBSFP-2454L-L8	1.25G	1550/1490	80KM	SFP	0~70	DFB+PIN

Our Strength & Quality Assurance

Payment

Shipment

FAQ
1. Do you have any MOQ?
Re: No, we don’t set MOQ. We completely understand customer will need sample for test.
2. How can I pay you, can I use paypal?
Re: We support T/T,L/C, Western Union, Paypal payment.
3. What is your warranty?
Re: We provide 2 years warranty for all our products.
4. Can I use your product in Juniper/Huawei or Alcatel-Lucent equipment?
Re: Yes, our products are fully compatible with,Huawei,HP, Alcatel-Lucent, Nortel, Extreme etc.
5. Can you make my logo on the label?
Re: Yes, we can make your logo on your label as long as your company sent an official letter of authorization.
