Factory Price BiDi SFP 1310nm-TX/1490nm-RX 20km DOM LC SMF Module Gigabit 1.25Gbs Transceiver

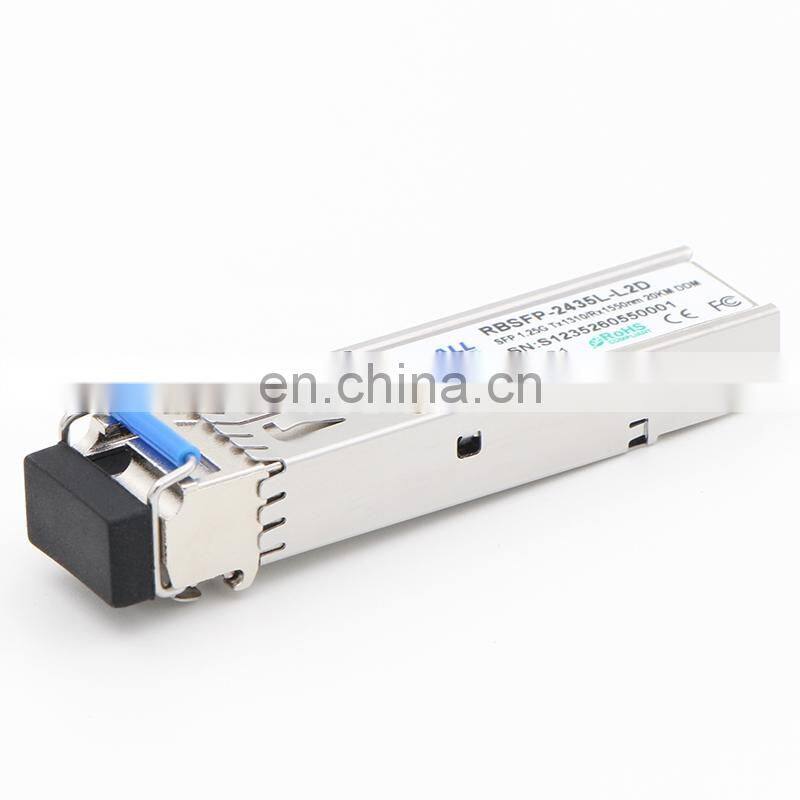

Factory Price BiDi SFP 1310nm-TX/1490nm-RX 20km DOM LC SMF Module Gigabit 1.25Gbs Transceiver photo-1

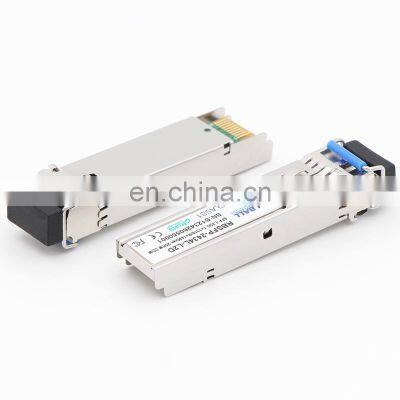

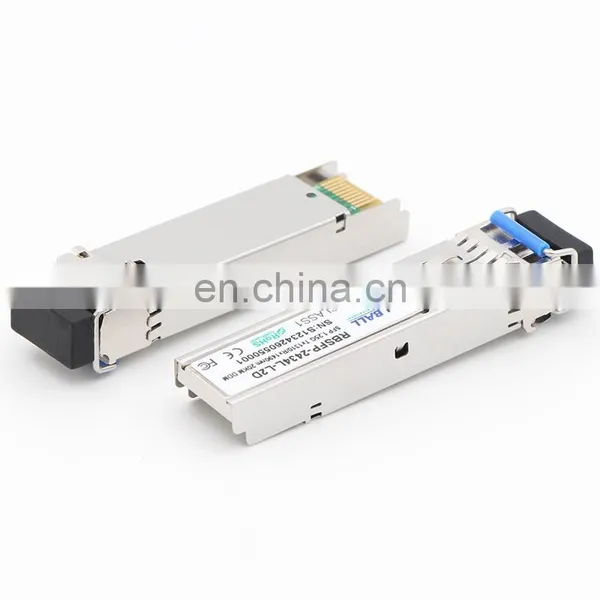

Factory Price BiDi SFP 1310nm-TX/1490nm-RX 20km DOM LC SMF Module Gigabit 1.25Gbs Transceiver photo-2

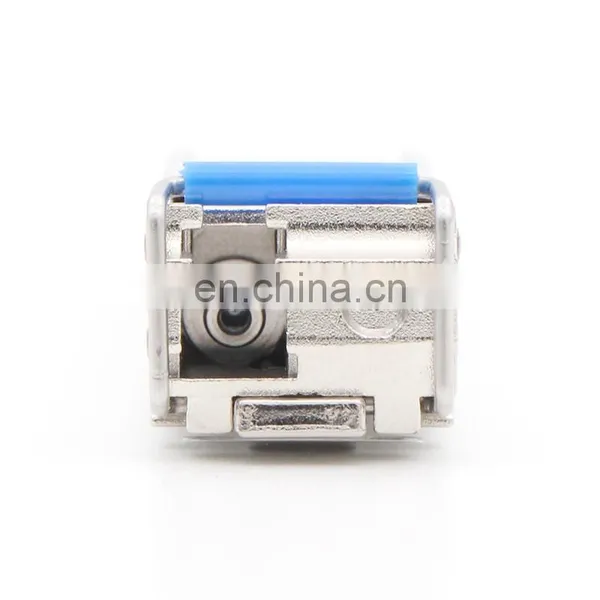

Factory Price BiDi SFP 1310nm-TX/1490nm-RX 20km DOM LC SMF Module Gigabit 1.25Gbs Transceiver photo-3

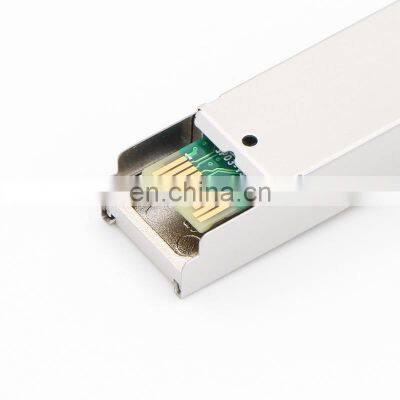

Factory Price BiDi SFP 1310nm-TX/1490nm-RX 20km DOM LC SMF Module Gigabit 1.25Gbs Transceiver photo-4
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2004
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Factory Price BiDi SFP 1310nm-TX/1490nm-RX 20km DOM LC SMF Module Gigabit 1.25Gbs Transceiver  Rollball 1.25Gb/s BIDI SFP 1310nm-TX/1490nm-RX 20km DOM Module

Item Specifications



Part Number SFP-1G-BX-20 Vendor Name Rollball
Form type SFP   Max Data Rate 1.25Gb/s
Max Cable Distance: 20KM Wavelength   1310nm-TX/1490nm-RX
Cable Type SMF Fiber connector LC Simplex
Optical Components FP BIDI Operate Temperature 0 to 70°C (32 to 158°F)
TX Power -8~-4dBm Receiver Sensitivity <-22dBm
Certificates CE, ROHS,FCC,SGS DOM Support Yes



Applications

Ø Gigabit Ethernet

Ø Fiber Channel

Ø Switch to Switch interface

Ø Switched backplane applications

Ø Router/Server interface

Ø Other Optical Links



Description

Ø The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.

Ø The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

Ø The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Factory Price BiDi SFP 1310nm-TX/1490nm-RX 20km DOM LC SMF Module Gigabit 1.25Gbs Transceiver



Factory Price BiDi SFP 1310nm-TX/1490nm-RX 20km DOM LC SMF Module Gigabit 1.25Gbs Transceiver





Buying Guides



Factory Price BiDi SFP 1310nm-TX/1490nm-RX 20km DOM LC SMF Module Gigabit 1.25Gbs Transceiver

Factory Price BiDi SFP 1310nm-TX/1490nm-RX 20km DOM LC SMF Module Gigabit 1.25Gbs Transceiver



Why is Rollball



  1. Quality system of ISO900,CE,FCC,ROHS registration
  2. Manufacture system
  3. R&D system
  4. Purchasing system
  5. Prompt delivery and remarkable services
  6. Reasonable prices
  7. Accept orders according to customer's demands
  8. Rich experience of OEM & ODM co-operation
  9. Shipment,payment and delivery
