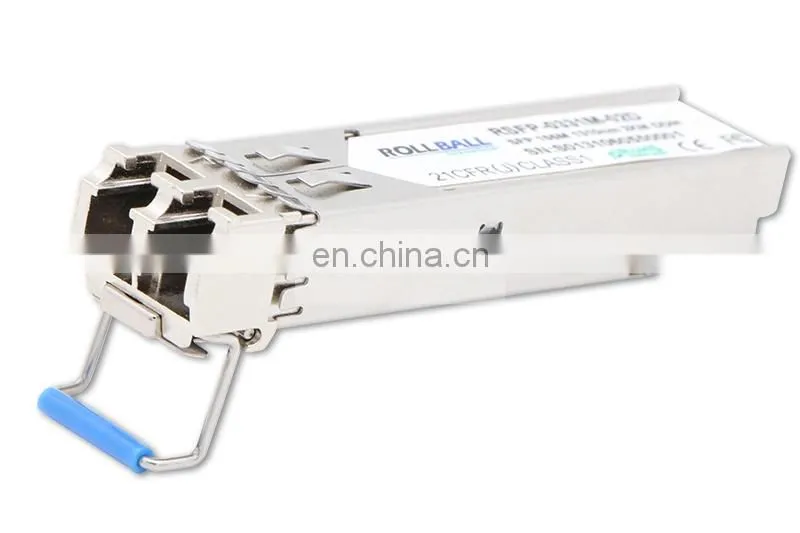

Rollball OC-3/STM-1 155Mb/s SFP MMF 1310nm 2km DOM Module
Item Specifications
| Part Number |
RSFP-0331M-02D |
Brand Name | Rollball |
| Form type | SFP | Max Data Rate | 155Mb/s |
| Max Cable Distance: |
2KM |
Wavelength | 1310nm |
| Cable Type | MMF | Fiber connector | LC Duplex |
| Optical Components | FP 1310nm | Operate Temperature | 0 to 70°C (32 to 158°F) |
| TX Power | -14~-8dBm | Receiver Sensitivity | <-32dBm |
| Certificates | CE, ROHS,FCC, SGS | DDM Support | Yes |
| Is_customized | Yes | Warranty | 3 years |
Applications:
Fiber Channel,
Gigabit Ethernet,
Switches, Routers, Hubs
Description
The SFP transceivers are high performance, cost effective modules supporting 155Mbps data-rate and 2km transmission distance with MMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
]
- Quality system of ISO900,CE,FCC,ROHS registration
- Manufacture system
- R&D system
- Purchasing system
- Prompt delivery and remarkable services
- Reasonable prices
- Accept orders according to customer's demands
- Rich experience of OEM & ODM co-operation
- Shipment,payment and delivery
We sincerely invite all interested buyers to visit our company and contact us directly for further information, we will reply you as soon as possible!!!
