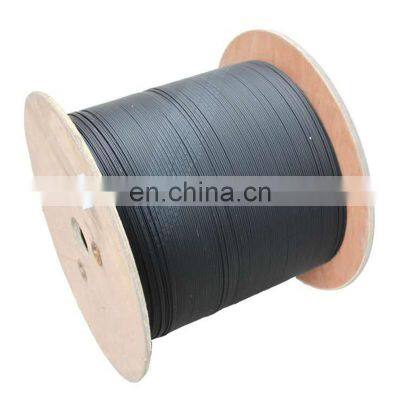

Single Mode FTTH Outdoor G657A1 1 2 4 Core 1KM per roll Drop Fiber Optic Cable

Name: Single Mode FTTH Outdoor G657A1 1 2 4 Core 1KM per roll Drop Fiber Optic Cable
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Single Mode Price FTTH 1fo 2fo 4fo Outdoor 4core fibre drop cables 1 2 4 core Fiber Optic Cable

Product Description

Product Characteristics

• Flex durable fiber to provide greater bandwidth and enhance network transmission characteristics

• Two parallel metallic strength member to protect the fiber and provide adequate tension and pressure

• single metallic strength member makes optical cable having good tensile performance

• Optical cable has simple structure, light weight and strong practicability

• unique groove design, Easy peeled off and splice, simplify the installation and maintenance

• Low smoke halogen-free flame-retardant sheath, pro-environment

Application

• Outdoor wiring system

• FTTH, terminal system

• Indoor shaft,building wiring

Structural Parameter

Model No.

Count

Cable Size

(mm)

Weight

(kg/km)

Tension
(N)

Crush

(N/100mm)

Bending Radius Static / dynamic
(mm)

GJYXCH-1Xn

(2.0±0.1)×(5.0±0.1)

300/600

1000/2200

15/30

GJYXCH-2Xn

(2.0±0.1)×(5.0±0.1)

300/600

1000/2200

15/30

Optical Fibre Performance

Type	Fiber attenuation(+20℃)				OFL	Band Width	10G Ethernet link length	Minimum bending radius
Condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
Condition	Typical value	MAX	Typical value	MAX	850/1300nm	850nm	850nm	/
Unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G657A1	0.36/0.22	0.5/0.4	---	---	---	---	---	10
G657A2	0.36/0.22	0.5/0.4	---	---	---	---	---	7.5
OM3	---	---	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	---	---	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30

Transportation / storage / use temperature: -20 ℃ ~ + 60 ℃
