Product Description
Single Mode Fiber Cable Optic Suppliers Aerial Asu 12 Hilos 2 Core 24 80 12fo Asu80 Fibra Optica

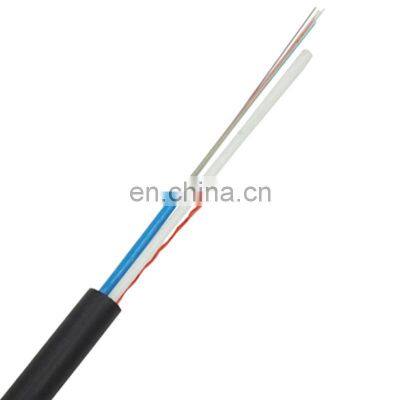

The fibers,250um, are positioned in a central tube made of a high modules plastic. The tubes are filled with a water-resistant filling compound. Two paralled FRP and outer sheath as a non-metallic strength member.
1-12 cores colored fiber.
Non-metallic self-supporting member.
Good-performance sheath materials.
Features:
Non-metal design can prevent the cable from radio interference and magnetic wave interference
Central tube filling compound ensure good moisture resistance performance
Compact structure
Able to be terminated onsite
All dielectric structure, resistant to electromagnetic interference
Easy for stripping, splicing, simplified installation and maintenance
Application:
Outdoor cabling
Suitable for aerial dropping
Technical parameters:
|
No. of cable |
1-12 |
|
|
Fiber Model |
G.652D |
|
|
Strength Member |
Material |
FRP |
|
Diameter(±0.05)mm |
1.8 |
|
|
Loose Tube |
Material |
PBT |
|
Diameter(±0.06)mm |
1.8 |
|
|
Thickness(±0.03)mm |
0.35 |
|
|
The Max.Core NO./Tube |
12 |
|
|
Outer Sheath |
Material |
PE |
|
Cable Diameter(±0.2)mm |
6.7 |
|
|
Cable Weight(±5)kg/km |
38 |
|
|
Min. bending radius |
Without Tension |
10.0×Cable-φ |
|
Under Maximum Tension |
20.0×Cable-φ |
|
|
Temperature range (℃) |
Installation |
-20~+60 |
|
Transport&Storage |
-40~+70 |
|
|
Operation |
-40~+7 |
|
