G652d Wire Price China Factory 12 16 24 32 36 48 72 96 Core Single Mode Fiber Optic Opgw Cable
- 1000 per Month
- T/T Credit Card
You May Like
-
Ftth Drop Cable 4 Anatel Manufacturers Optico Price 4core Cheap Fiber Optic Outdoor 1 2 Core Cables
-
Ftth Drop Wire Optical G657 Fibra Optica G657a Indoor Gjyxch Outdoor 4 6 2 1 Hilos Core Fiber Optic Cable
-
1 2 4 Core Outdoor Wire Ftth Cable Drop Optical Indoor Fibers Gjyxch Fibre Duct Cables Optic Fiber
-
GYTC8A/GYTC8S Armored 12 24 36 48 72 192 144 288 Core Price Duct Fibra Optica Single Mode Outdoor Fiber Optic Cable
-
Single Mode Price FTTH 1fo 2fo 4fo 2core Outdoor 4core fibre drop cables 1 2 4 core Fiber Optic Cable
-
Sc/Upc Metal Transparent Dust Optical Adpater Simplex Sc Sm Sx St SC/AP C SM SX Fiber Optic Adapter
Product Description
G652d Wire Price China Factory 12 16 24 32 36 48 72 96 Core Single Mode Fiber Optic Opgw Cable
Product Description

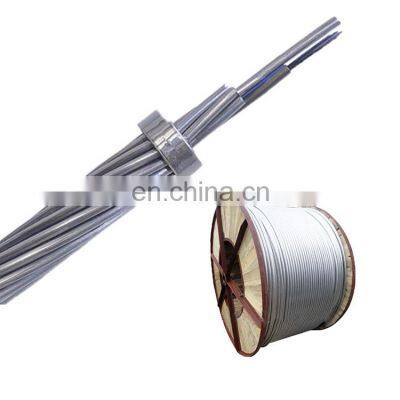

OPGW is a kind of overhead ground wire containing optical fiber, which has multiple functions such as overhead ground wire and optical communication. It is applicable to new aerial power route to satisfy the needs for big conductors and high voltage transmission, and is used to conduct large fault short circuit current to provide anti lightning protection.
Product Characteristics
• Large diameter, large fiber capacity
• The structure is stable and the reliability is high
• Excellent capability against side and outstanding short circuit current capacity
• The optimum stranding design can obtain the surplus length of secondary optical fiber • The number of strands can be designed in two or three layers
• Match with common ground wires
Constructions and Performance
|
|
Classification |
Material |
Value |
|
|
Construction |
Optical Fibre |
G652D/G655 etc. |
2 - 144 |
|
|
Protection Tube |
Stainless steel tube |
1.5 - 6mm |
||
|
Stranded Line |
AS wire/AA wire/Al Rod |
1.5 - 6mm |
||
|
Max. Diameter |
30mm |
|||
|
Max. Cross Section |
500mm2 |
|||
|
Characteristic |
According to the standards as DL/T 832, IEC60794-4-10, IEEE1138 |
|||
|
Max. Tensile Strength (RTS ) (kN) |
700 |
|||
|
Max. Crush Strength(N/100mm) |
3000 |
|||
|
Max. Short Current Capacity (40℃ to 200℃)(kA2s) |
2000 |
|||
|
Min. Bending Radius (Dynamic) |
20D |
|||
|
Min. Bending Radius (Static) |
15D |
|||
|
Environment Performance |
Installation (℃) |
-10 to +50 |
||
|
Transportation and Operation (℃) |
-40 to +65 |
|||
Optical Fibre Characteristics
|
|
Attenuation |
Bandwidth |
Polarization Mode Dispersion |
|||||
|
@850nm |
@1300nm |
@1310nm |
@1550nm |
@850nm |
@1300nm |
Individual Fibre |
Design Link Value (M=20, Q=0.01%) |
|
|
G652D |
— |
— |
≤0.35dB/km |
≤0.21dB/km |
— |
— |
≤0.20ps/ km |
≤0.1ps/ km |
|
G655 |
— |
— |
— |
≤0.22dB/km |
— |
— |
≤0.20ps/ km |
≤0.1ps/ km |
|
50/125μm |
≤3.0dB/km |
≤1.0dB/km |
— |
— |
≥600MHz.km |
≥1200MHz.km |
— |
— |
|
62.5/125μm |
≤3.5dB/km |
≤1.0dB/km |
— |
— |
≥200MHz.km |
≥600MHz.km |
— |
— |
Specific Type and Technical Data
Environmental Characteristics
• Transport/storage temperature: -40℃ to +65℃
Packaging and Drum
• Standard Cable Drum,2/3km/reel, other length is also available
