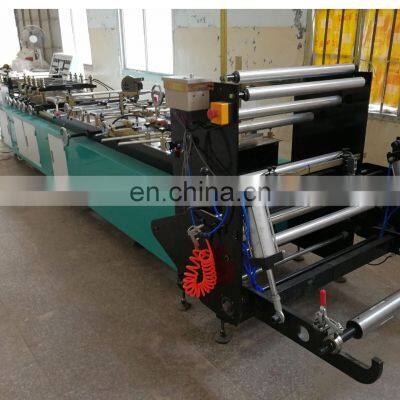

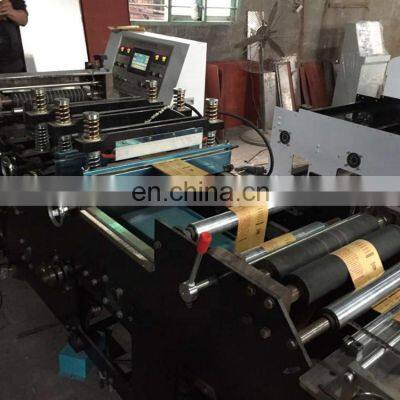

Help CenterHigh Speed Middle and Bottom Sealing Paper Bag Making Machine
Related Products
-
ZD-F550NB Paper Bag Making MachineNegotiableMOQ: 1 -
ZH-1050PC-Four Six Corners Fully Automatic Cake Box Carton Box Folding Gluing MachineNegotiableMOQ: 1
-
ZH-1050PC Auto High-speed Carton Folding and Gluing MachineNegotiableMOQ: 1
-
Table Type Labeling Machine is Used for Automatic Labeling of Round Glass Metal Cans of Food and BeverageNegotiableMOQ: 1
-
Desktop Labeling Machine Automatic Round Glass Metal Can Bottle Label Machine for Food BeverageNegotiableMOQ: 1
FEATURE
1. Unwinder roller for material roll adopts magnetic tension control, for smoothly unwinding.
2. With EPC system for web position guiding, ensure correct position sealing and cutting.
3. Adopts rocker arms to control feeding, to flatten material surface, avoid film stretching on making.
4. Center sealing adopts copper bar sealer design. And with glue sealing for option.
5. Bottom sealing adopts aluminum sealing bars, with three bars, high thermal conductivity, fast and strong sealing.
6. Photocell to track the printing in film.
7. Cutting knife is straight cutting line, it is replaceable with Sawtooth cutting knife.
8. Receiver part with Static electricity treating device, to stabilize the bag in stack.
9. Adopts touch screen microcomputer system, can show the bag quantity, speed, batch, etc, full automatic control.
10. Temperature controllers are automatic PID double digital display controller.
11. Frequency inverter control, bag making speed adjustable.
12. Bag making control motor adopts step motor, high precision bag length control. (servo motor for option too)
PARAMETER
|
Model |
ZDF-350R |
ZDF-500R |
ZDF-600R |
|
Speed |
20-220pcs/min |
20-220pcs/min |
20-220pcs/min |
|
Sealing line width |
10mm |
10mm |
10mm |
|
Max bag width |
350mm |
500mm |
6000mm |
|
Dissection precision |
±1.0mm |
±1.0mm |
±1.0mm |
|
Motor power |
1.1kw |
1.5kw |
1.5kw |
|
Total power |
5.5kw |
6.5kw |
7.5kw |
|
Overall dimension |
6700*1350*1550mm |
6700*1500*1550mm |
6700*1650*1550mm |
|
Weight |
1500kg |
1600kg |
1700kg |
|
Input power |
220V, 50Hz 1P |
220V, 50Hz 1P |
220V, 50Hz 1P |
