Introduction
ZH-1050AC is a multi function model,suitable for card board,EB flute corrugated board,can do two fold,four fold,and bottom lock.This model has correction device and bottom lock device.Can make electrical adjusting.Has UV destroying device and dust remove device for better gluing effect.
Functions
Auto feeding ,auto correction,creasing ,auto alignment,pnuematic box pressing
Technical Parmeters
|
Model |
ZH-1050PC |
|
Suitable material |
Card board,E /B flute corrugated board |
|
Feeding method |
Automatic continuous feeding |
|
Max mechanical speed |
300m/min |
| Overall dimension | 15500*1900*1600mm |
| Weight | 8.5T |
| Power consumption | 15.5KW |
| Glue type | Solvent |

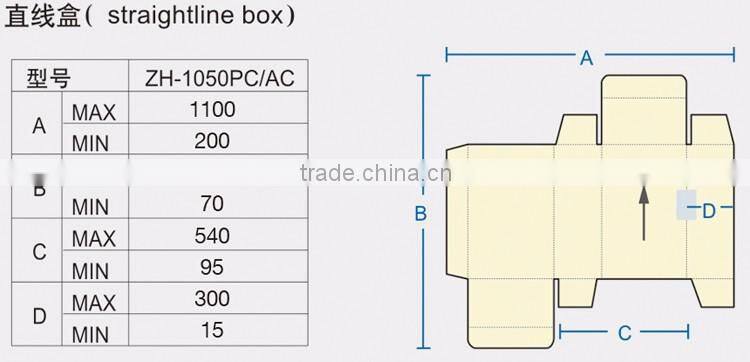

| ZH-1050PC/AC | ||||||
| straightline box | double sides box | crash-lock bottom box | 4-corner box | 6-corner box | ||
| A | MAX | 1100 | 900 | 1050 | 950 | 950 |
| MIN | 200 | 250 | 250 | 250 | 250 | |
| B | MAX | 1100 | 1000 | 1100 | 900 | 900 |
| MIN | 70 | 150 | 100 | 150 | 150 | |
| C | MAX | 540 | 90 | 520 | 800 | 800 |
| MIN | 95 | 120 | 120 | 110 | 110 | |
| D | MAX | 300 | 200 | 300 | 200 | 200 |
| MIN | 15 | 10 | 30 | 25 | 25 | |

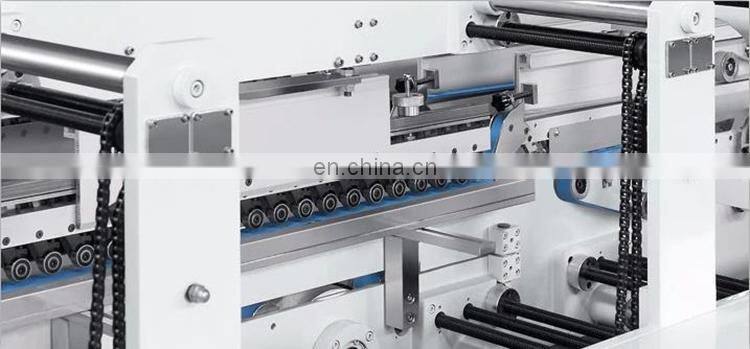

Feeder Section:
- Equipped with vibrating motor.
- With independent transmission,low noise,with front adjustable wheels,max working capacity can be achieved.
- Feeding knives and left and right registers fixing bar are controlled up and down by pneumatic system easily.
- Feeding knifes are equipped with pnematic mechanism for smoother feeding.
Paper Alignment System:
- Automatic alignment system to correct the paper feeding,avoding the paper going to sides.
- UV destroying deivce and dust remove device for better gluing effect.
Bottom Lock Section
- Big-volume design,when the machine is running at high speed,the glue will not go out or leaking Optional
- bottle is good for long time operation.
- Lock-bottom assembly mechanism with high elastic hookers is of deal design,fast and easy operation.

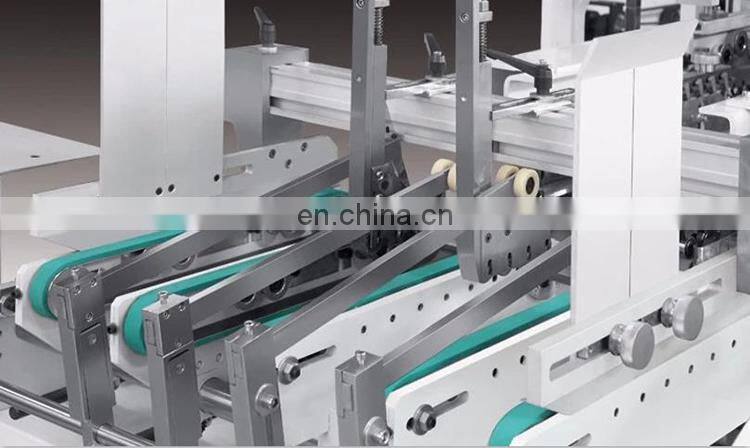

Folding Section
- Equipped with speed variator for belts,ensure the folded boxes parallel and in good order
- Fast,convenient adjustment and operation can fold boxes perfectly
- The middle up and down transmission module can fold boxes synchronously or alternately
About Factory
Warranty Service:
Machines are new (or unused) and the guarantee period will be given thirteen months from shipment date.During this period, the seller will offer free maintenance and free spare parts that causedby the machine’s quality,but the buyer must pay the courier cost.Parts damaged because of mishandling and consumable parts are not covered by any warranty.
