Home > Industrial Equipment & Components > Valve > Ball Valve > DIN Extension Spindle Resilient Seated Gate Valve
Negotiable
MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
METALCO
Place of Origin:
China
Model Number:
Z45X
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BS5163 Non-rising Metal Seated Gate ValveNegotiableMOQ: 10 Sets -
PN25 DIN F4 Non-rising Stem Resilient Seated Gate ValveNegotiableMOQ: 10 Sets
-
Socket End Resilient Seated Gate ValveNegotiableMOQ: 10 Sets
-
DIN Big Size Resilient Seated Gate ValveNegotiableMOQ: 1 Set
-
BS Big Size Resilient Seated Gate ValveNegotiableMOQ: 1 Set
Brand Name
METALCO
Place of Origin
China
Model Number
Z45X
Application
General
Structure
Gate
Standard or Nonstandard
Standard
Pressure
Medium Pressure
Power
Manual
Media
Water
Temperature of Media
Medium Temperature

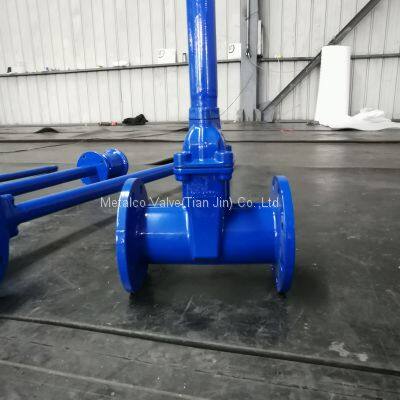

DIN extension spindle resilient seated gate valve
| Design and Manufacture | Face to Face | Flange End | ||||||||
| DIN3352 | DIN3202 F4 | DIN3252 | ||||||||
Main parts and materials
| No. | Name | Material |
| 1 | Body | Ductile iron |
| 2 | Disc | Ductile iron+EPDM |
| 3 | Stem nut | Ductile iron |
| 4 | Stem | 2Cr13 |
| 5 | Gasket | Ductile iron |
| 6 | Cover | Ductile iron |
| 7 | Locating ring | Ductile iron |
| 8 | O ring | EDPM |
| 9 | Bolts | Carbon steel |
| 10 | Gland | Ductile iron |
| 11 | Stem | Carbon steel |
| 12 | Tube | Carbon steel |
| 13 | Box | Ductile iron |
| 14 | Box cover | Ductile iron |
