PN25 DIN F4 Non-rising Stem Resilient Seated Gate Valve

Tianjin Metalco Valve CO.,Ltd
PN25 DIN F4 Non-rising Stem Resilient Seated Gate Valve thumbnail-1
PN25 DIN F4 Non-rising Stem Resilient Seated Gate Valve thumbnail-2
PN25 DIN F4 Non-rising Stem Resilient Seated Gate Valve thumbnail-3
PN25 DIN F4 Non-rising Stem Resilient Seated Gate Valve thumbnail-4
PN25 DIN F4 Non-rising Stem Resilient Seated Gate Valve thumbnail-5
PN25 DIN F4 Non-rising Stem Resilient Seated Gate Valve photo-1

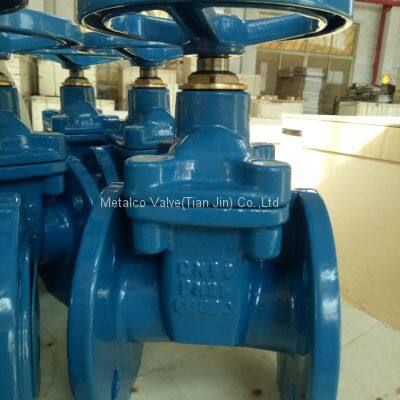

PN25 DIN F4 Non-rising Stem Resilient Seated Gate Valve photo-2

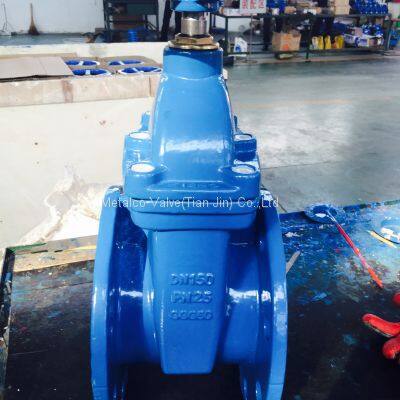

PN25 DIN F4 Non-rising Stem Resilient Seated Gate Valve photo-3

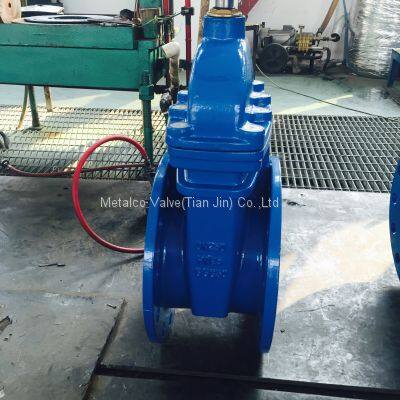

PN25 DIN F4 Non-rising Stem Resilient Seated Gate Valve photo-4

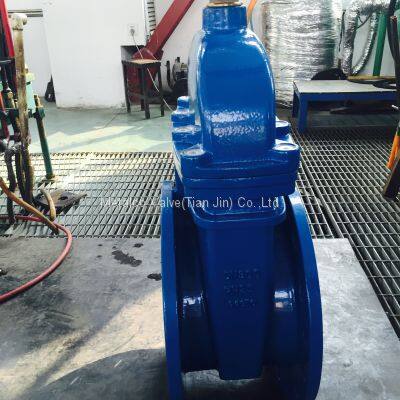

PN25 DIN F4 Non-rising Stem Resilient Seated Gate Valve photo-5
Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
METALCO
Place of Origin:
China
Model Number:
Z45X
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name METALCO
Place of Origin China
Model Number Z45X
Application General
Structure Gate
Standard or Nonstandard Standard
Pressure Medium Pressure
Power Manual
Media Water
Temperature of Media Medium Temperature

PN25 resilient seated gate valve

Design   and ManufactureFace   to FaceFlange   End
DIN3352DIN3202 F4DIN3252


Main parts and materials

No.Parts   Name          Material
1Valve   BodyDuctile   Iron
2SeatEPDM
3Disc               Ductile   Iron
4Stem    Nut          Brass
5Stem              SS420
6Bonnet Ductile   Iron
7BushingBrass
8HandwheelDuctile Iron
9BoltSS410
10NutSS410
11O   RingEPDM
12O   RingEPDM
13Holding   RingBrass
14Sealing   RingF-4
15GasketEPDM
16BoltCarbon steel
17GasketEPDM


Outline and connecting measurement

DN(mm)LDD1D2b-fn-d
501501651259919-34-Φ19
6517018514511819-38-Φ19
8018020016013219-38-Φ19
10019023519016219-38-Φ23
12520027022018819-38-Φ28
15021030025021820-38-Φ28
20023036031027822-312-Φ28
25025042537033424.5-312-Φ31
30027048543039027.5-416-Φ31


Product Tags: PN25 gate valve , DIN resilient seated gate valve , DIN F4 gate valve
