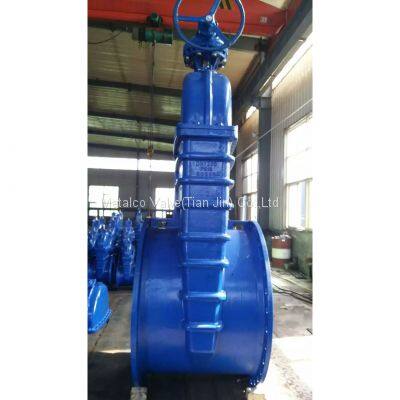

BS Big Size Resilient Seated Gate Valve
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
METALCO
Place of Origin:
China
Model Number:
Z45X
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DIN Non-rising Metal Seated Gate ValveNegotiableMOQ: 10 Sets -
DIN Non-rising Stem Resilient Seated Gate ValveNegotiableMOQ: 10 Sets
-
DIN Extension Spindle Resilient Seated Gate ValveNegotiableMOQ: 10 Sets
-
BS5163 Non-rising Metal Seated Gate ValveNegotiableMOQ: 10 Sets
-
PN25 DIN F4 Non-rising Stem Resilient Seated Gate ValveNegotiableMOQ: 10 Sets
Brand Name
METALCO
Place of Origin
China
Model Number
Z45X
Material
Casting
Application
General
Structure
Gate
Standard or Nonstandard
Standard
Pressure
Medium Pressure
Power
Manual
Media
Water
Temperature of Media
Medium Temperature
BS big size resilient seated gate valve
| Design and Manufacture | Face to Face | Flange End | ||||||
| BS5163 | BS5163 | BS4504/EN1092 |
Main parts and materials
| No | Part Name | Material | ||||||
| 1 | Body | Ductile Iron | ||||||
| 2 | Disc | Ductile Iron+EPDM | ||||||
| 3 | Stem Nut | Brass | ||||||
| 4 | Stem | SS420 | ||||||
| 5 | Bolts | Carbon Steel | ||||||
| 6 | Gasket | EPDM | ||||||
| 7 | Gland | Dutile Iron | ||||||
| 8 | Locating | Brass | ||||||
| 9 | O Ring | EPDM | ||||||
| 10 | Gland | Dutile Iron | ||||||
| 11 | O Ring | EPDM | ||||||
| 12 | Bolts | Carbon Steel | ||||||
Outline and connecting measurement
| D | L | D | C | B | n-Ød | |||
| PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | |||
| DN700 | 430 | 895 | 910 | 840 | 841 | 794 | 24-Ø31 | 24-Ø37 |
| DN800 | 470 | 1015 | 1025 | 950 | 901 | 24-Ø34 | 24-Ø40 | |
| DN900 | 510 | 1115 | 1125 | 1050 | 1001 | 28-Ø34 | 28-Ø40 | |
| DN1000 | 550 | 1230 | 1255 | 1160 | 1170 | 1112 | 28-Ø37 | 28-Ø43 |
| DN1200 | 630 | 1455 | 1485 | 1380 | 1390 | 1328 | 32-Ø40 | 32-Ø49 |
