Input Current 0-100A PCB Mounting Current Transforme
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
2000:1 0-100A PCB Mounting Current Transformer
-
2000:1 10A/5mA PCB Mounting Current Transformer
-
100A/100mA Pins High Precision Current Sensing Transformer
-
PCB Mount Miniature Current Transformer 20mA 50mA 100mA Secondary Current
-
Mini Current Sensor PCB Current Transformer Current Sensing Transformers
-
Mini Current Transformer Zero Phase Current Transformer ct
Product Description
Company Profile
SHAANXI FULLSTAR ELECTRONICS CO.,LTD is specialized in electronics and magnetic components .
The main products are: High-precision current sensing transformer, PCB High- frequency current transformer, SMD high frequency current sensing transformer, Zero phase current transformer, Toroidal current transformer, Split-core current transformer, etc.,
Our factory has 30 years' experience in electronics field and the annual volume is above 200,000,000 pieces. We are ISO9001:2015 certified company.
The main products are: High-precision current sensing transformer, PCB High- frequency current transformer, SMD high frequency current sensing transformer, Zero phase current transformer, Toroidal current transformer, Split-core current transformer, etc.,
Our factory has 30 years' experience in electronics field and the annual volume is above 200,000,000 pieces. We are ISO9001:2015 certified company.
Product Description
Magnetic Components current sense transformer
A current transformer (CT) is a type of transformer that is used to measure alternating current (AC). It produces a current in its secondary which is proportional to the current in its primary.Current transformers, along with voltage or potential transformers, are instrument transformers. Instrument transformers scale the large values of voltage or current to small, standardized values that are easy to handle for measuring instruments and protective relays. The instrument transformers isolate measurement or protection circuits from the high voltage of the primary system. A current transformer provides a secondary current that is accurately proportional to the current flowing in its primary. The current transformer presents a negligible load to the primary circuit.
Features:
PCB Solid Current Transformers,
High Precision current range up to 200A Maximum,
Toroidal high precision current transformer, working frequency 50Hz/60Hz
Turns ratio: 1:60:, 1:100, 1:200, 1:2000, 1:2500, 1:3000
Operating temperature: -40 to 85 ℃

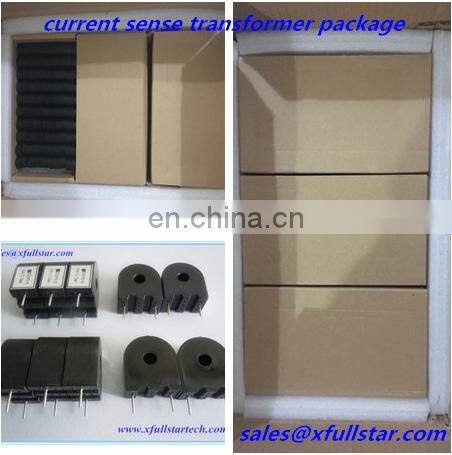

Packaging And Shipping
Related Products
Exhibition
Certificate
FAQ
1. Q: Why choose us?
A: Fullstar has been mamufacturing customized inductors for more than 24 years.
2. Q: Do you have any certificates?
A: We have CE, RoHS, CCC, CQC, ISO9001:2015 Certification.
3. Q: How about your products quality inspection?
A: We have professional QA and QC teams. 100% quality inspection is performed before shipment.
4. Q: Can you use our logo?
A: We accept OEM and ODM production.
5. Q: What's your quality guarantee?
A: We repair or replace parts within 18months if necessary.
