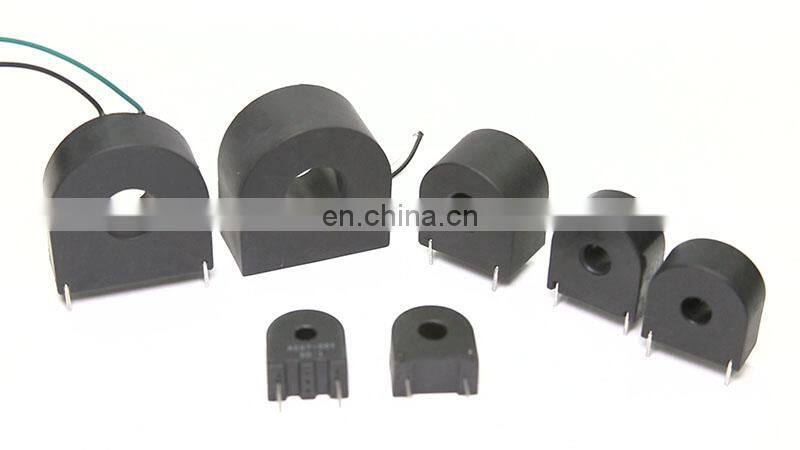

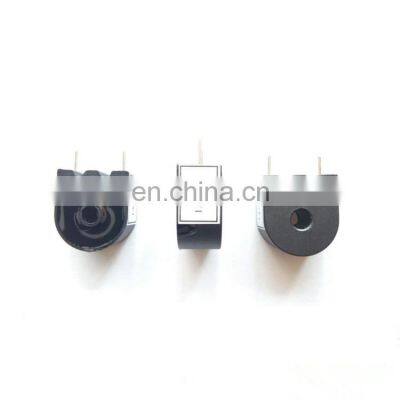

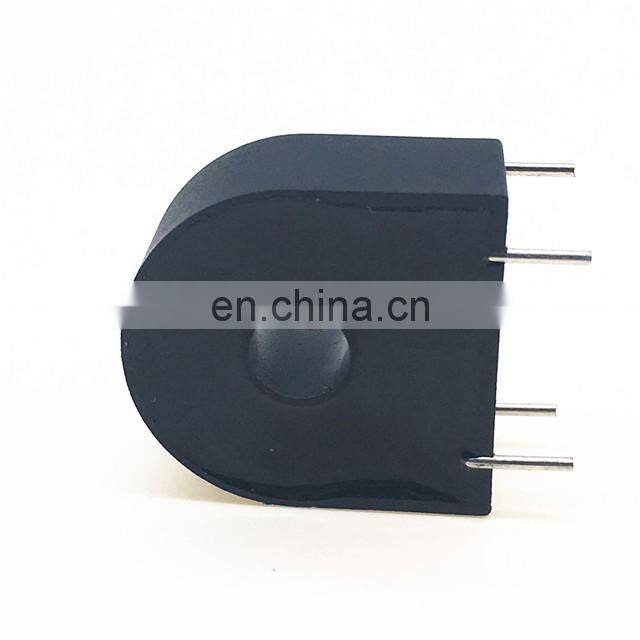

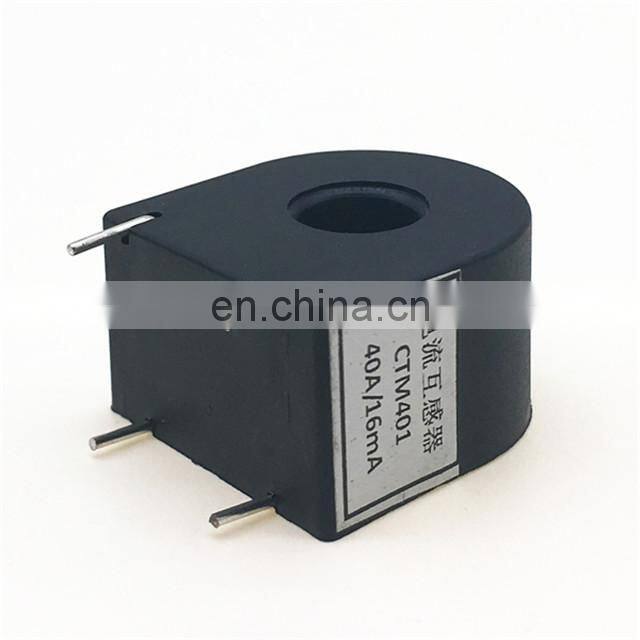

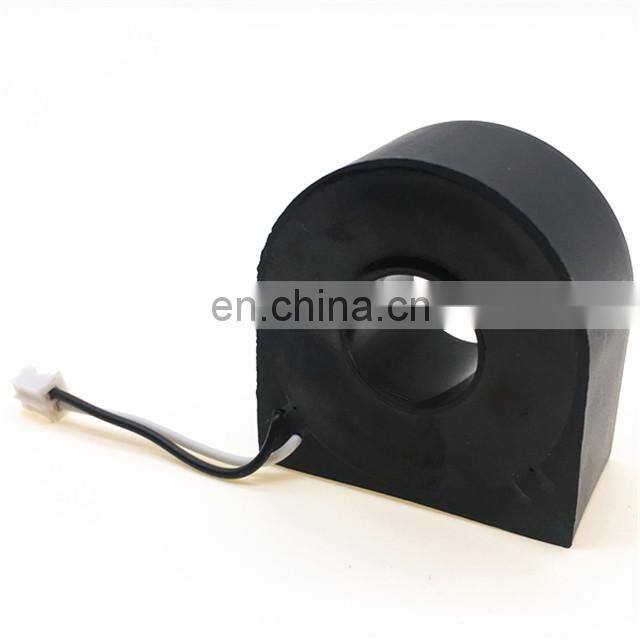

PCB Mount Miniature Current Transformer 20mA 50mA 100mA Secondary Current
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2001
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mini Current Sensor PCB Current Transformer Current Sensing TransformersNegotiableMOQ: 1 -
Mini Current Transformer Zero Phase Current Transformer ctNegotiableMOQ: 1
-
Mini Current Transformer 100/5 Current Transformer CT PriceNegotiableMOQ: 1
-
Class 0.1 Mini CT Current Transformer 1000:1 2000:1NegotiableMOQ: 1
-
Current Sensing Transformers 250/5a Class0.5/1 Current Sensor Split CoreNegotiableMOQ: 1
Product Description
Characteristics |
Values |
Operating frequency |
20-1KHZ |
Operating temperature |
-40℃ ~ 85℃ |
Storage temperature |
-40℃ ~ 85℃ |
Relative humidity |
≤95% |
Rated primary current I p |
20A |
IDC max (according to IEC61036) |
120A peak |
Transformation ratio N |
1:2500 |
User supplied burden resistor Rb |
≤20Ω |
HI-POT (center OD hold to leadwire) |
3000Vrms, 1sec |
Insulation resistance |
>500MΩ/500Vdc |
