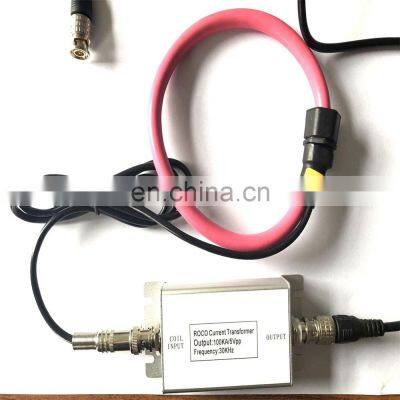

Rogowski Coil 100A-100KA With Output AC 0.33V/5V/5A/1A/DC4-20mA
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Toroidal Roche Coil Current Sensing Transformer RST Type SCT016
-
Customized Split Core Current Transformer High Accuracy 1:100/1:1000/1:1500/1:2000/1:3000/1:5000
-
Customized Clamp-on Split Core Current Sensing Transformer for Measurement
-
Pin Type PCB Mount Aegis Relay Current Transformer CT021 5(200)A/10mA
-
Factory manufacturer 100A 33.3mA split core current transformers
-
Mini High Precision Current Transformer for PCB 1A:5mA
Product Description
Product Description
Soft Rogowski Coil
144 mV/1000A @ 60 Hz
120 mV/1000A @ 50 Hz
Band width(-3dB)：2Hz～100kHz
Output sensitivity：±2%
Maximum reponse time(10 to 90%)：1us

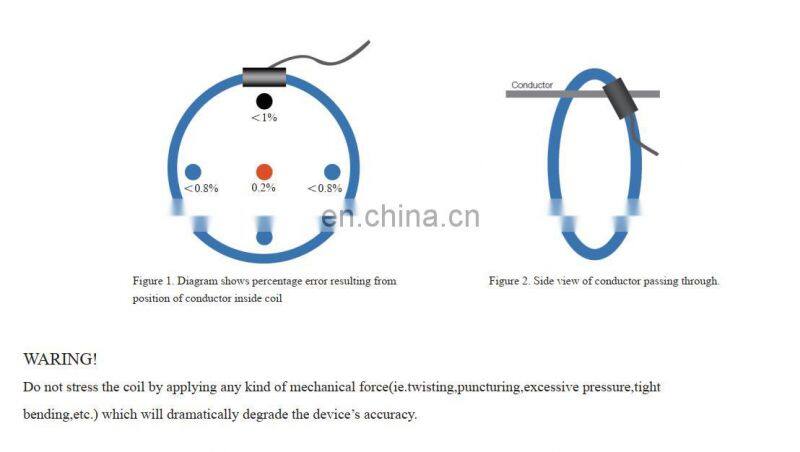

Location is sensitive：±1%
Operating temperature：-20℃～70℃
Integrator porwer supply： DC9V DC12V DC24V
Standrd lead length：2m
Output sensitivity：±2%
Maximum reponse time(10 to 90%)：1us
Location is sensitive：±1%
Operating temperature：-20℃～70℃
Integrator porwer supply： DC9V DC12V DC24V
Standrd lead length：2m
Model | Rated current | Maximum window size | Phase difference | Accuracy | Linearity |
RST-090-400A/0.333V | 400A | 90mm | ≤1% | ±0.5% | ±0.2% |
RST-100-800A/0.333V | 800A | 100mm | |||
RST-150-1000A/0.333V | 1000A | 150mm | |||
RST-190-3000A/0.333V | 3000A | 190mm | |||
RST-200-5000A/0.333V | 5000A | 200mm |
