Toroidal Roche Coil Current Sensing Transformer RST Type SCT016
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2001
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Customized Split Core Current Transformer High Accuracy 1:100/1:1000/1:1500/1:2000/1:3000/1:5000NegotiableMOQ: 1 -
Customized Clamp-on Split Core Current Sensing Transformer for MeasurementNegotiableMOQ: 1
-
Pin Type PCB Mount Aegis Relay Current Transformer CT021 5(200)A/10mANegotiableMOQ: 1
-
Factory Manufacturer 100A 33.3mA Split Core Current TransformersNegotiableMOQ: 1
-
Mini High Precision Current Transformer for PCB 1A:5mANegotiableMOQ: 1
Product Description

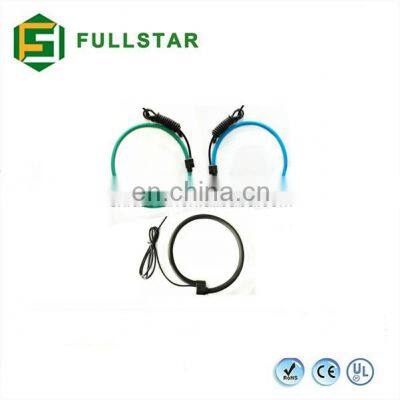

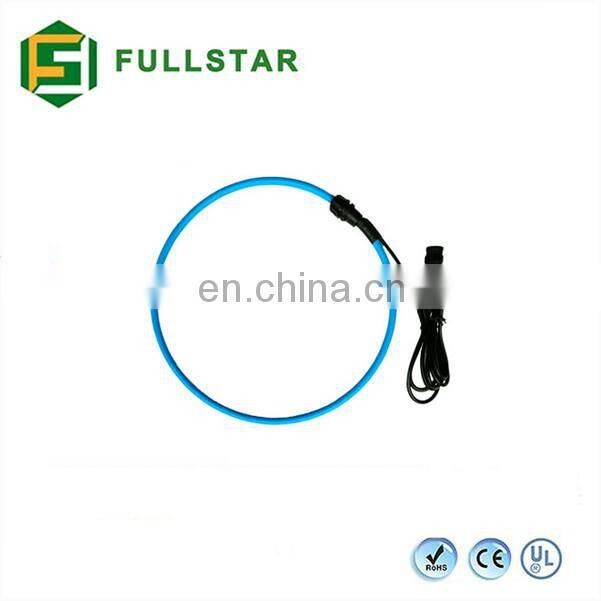

Toroidal Soft Roche Coil Current Sensor
· Model NO.: SCT016
· Type: Split Core Current Sensor
· Operation Condition: Indoor
· Winding Form: Multilayer Honeycomb Type
· Installation: Active Type
· Voltage Transformation Principle: Capacitive Type
· Window Size: 16mm
· Rated Output Current: 0.333VAC ,Mv or Ma
· Package: Outer Carton with Smaller Inner Box
· Origin: China
· Application: Electronic, Instrument, Position Sensor, Audio, Lighting
· Phase: Single
· Usage: Measurement
· Insulating Medium: Insulating Paper
· Magnetic Circuit Structure: Single Stage Type
· Model: Split Core Current Sensor SCT016
· Rated Input Current: 0-100A
· Trademark: SHAANXI FULLSTAR
· Specification: CE, UL, ROHS, ISO9001: 2008
· HS Code: 85045000
Split Core AC Current Transformer SCT016
φ16mm Opening With 50 To 120 Amp Rating
Features:
Maximum continuous primary current 120 A AC
Output: mA or 0.333 Volt at rated current
Current Ratio: 500:1,1000:1,2000:1,2500:1,3000: 1
Maximum Primary Voltage: 5000Vac(Insulated Conductor)
Phase angle: Less than 1.5 degrees at rated current
Frequency Range: 50 Hz to 400 Hz
Accuracy: ± 1% from 5% to 120% of rated current
Operating Temperature: -15 Cto 60 C.
Insulation Voltage: 600Vac
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 24AWG
CE ,ETL recognized, and RoHS compliant
Output and leads can be customized
Applications:
Sub-Metering Accurate Measurement
Data Loggers to analyze Building & Machinery Performance
Digital Fault Recorders
Smart Grid Application Features
Load Center
Three Phase Balance Control
In-Factory Display In-Home Display
Inverters for Solar & Wind Turbine Systems
Power Measurement Device For PLC
