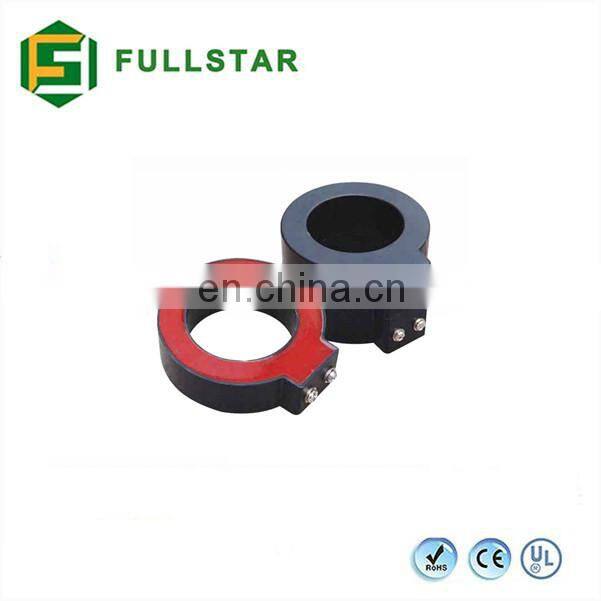

Customized Clamp-on Split Core Current Sensing Transformer for Measurement

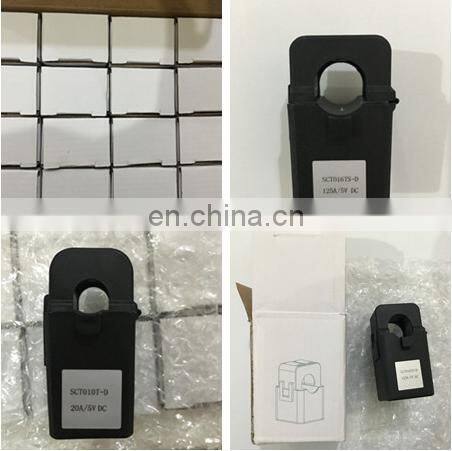

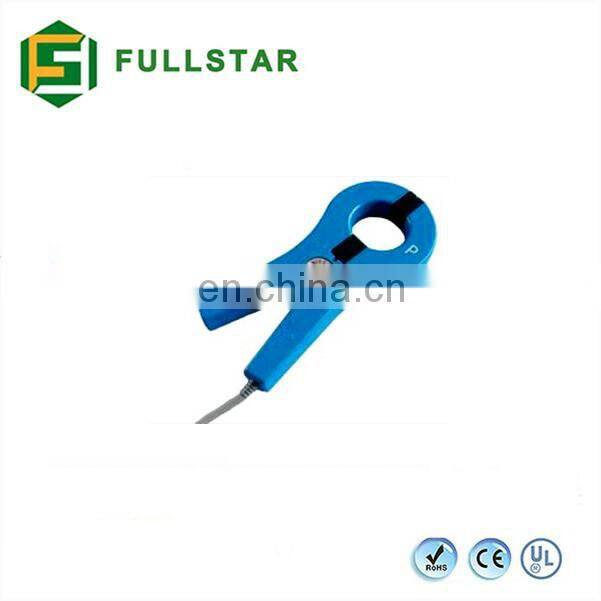

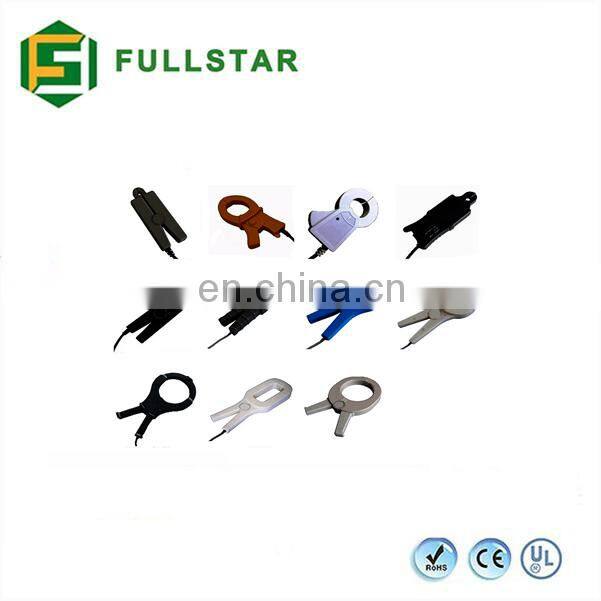

Clamp-on Split Core Current Transformer

Features:
ABS anti-combustion plastic casing
Test current range: 0.01A to 10000A
input/output current: 100A/33.3mA, 200A/100mA, 100A/1A, 200A/1A, 200A/5A, 500A/5A, 600A/5A 800A/5A,1000A/5A, 2000A/5A, 3000A/5A, 4000A/5A, 8000/5A, 10000A/5A available
Encapsulated with epoxy resin to ensure strong insulation ability
High-precision current transformers
Locking snap current transformers
PBT burn-resistance current transformers
High-precision current transformers
Reliable linear performance transformers
Strong anti-magnetic disturbance epoxy current transformers-Completely-enclosed, good mechanical behavior, suitable for various environments, strong voltage isolation ability, delicate appearance
Suitable for single-phase electricity meter as well as anti-tampering electricity meter;
There are standard holes on the primary lead wire which can be directly fixed on the meter terminals with standard bolts
Customized type available
Applications:
Widely used in the relay protection area – Current measurement
Electrical load monitoring / Energy and sub-metering products / Network equipment/ Instruments and sensors/ Control systems/
FSCT10 (High-precision split core current sensor, 0-120A, 50Hz to 100KHz, Available in Various Specifications)
FSCT24 SERIES (High-precision split core current sensor, 0-120A, 50Hz to 100KHz, Available in Various Specifications)
