Smart Building LCD Display Digital Volt Ampere Multi-functional ac Energy Meter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1993
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Solar System Multi-functional RS485 Analog Output dc Power Energy MeterNegotiableMOQ: 1 -
Smart Building RS485 Comm 3 Phase Volt Voltage and Current Power MeterNegotiableMOQ: 1
-
Panel Mounted 3 Phase Digital Volt Ampere Multi Functional Electricity Energy MeterNegotiableMOQ: 1
-
LNF33 LCD Display Panel Mount RS485 3 Phase Current MeterNegotiableMOQ: 1
-
LNF36 96*96mm Panel Mount LCD Display 3 Phase Current MeterNegotiableMOQ: 1
Product Description
Product Name: Smart building LCD display digital volt ampere multi-functional ac energy meter
This series of multi-function power meters support all-parameter measurement, bi-directional energy metering, four-quadrant reactive metering and harmonic analysis. they can be connected to power monitoring system and energy management system to realize remote data monitoring.
Technical Parameter
Accuracy | Voltage, current: 0.2%;power: 0.5%,frequency:±0.01HZ;Active energy:0.5s | |
Data update rate | 1s | |
Signal Input | Rated current | AC 1A,5A |
Rated voltage | AC 100V,380V | |
Overload | Continuous:2In,instantaneous:10In/5s Continuous:1.2Un,instantaneous:2Un/1min | |
Energy consumption | ≤0.1VA | |
Fequency | 45~65HZ | |

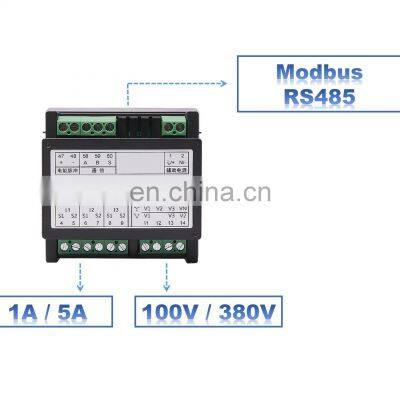

Communication | RS485 interface | Modbus-RTU protocol, baud rate up to 9600bps |
Energy pulse | Optocoupler isolation ,pulse width 80ms±20% | |
Digital Input | Optocoupler isolation ,passive dry contact | |
Relay Output | Contact capacity AC250V 5A or DC 30V 5A | |
Auxiliary power supply | Working range | AC/DC 80~270V |
Energy consumption | ≤5VA | |
Environment condition | Working temperature | -10~55℃ |
Storage temperature | -25~70℃ | |
Relative humidity | ≤93%RH | |
Altitude | ≤2500m | |
Safety | Insulation | Signal power supply output terminal to case resistance ≥100MΩ |
Withstand voltage | Power supply，input and output ≥2kv | |
Protection level | IP54 |
Related Products
Application
■ Smart equipment
■Intelligent building
■Public facility
■Industrial and mining enter enterprise
■Panel Meter
■Intelligent building
■Public facility
■Industrial and mining enter enterprise
■Panel Meter
Company Profile
Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
