LNF36 96*96mm panel mount LCD display 3 phase current meter
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
LNF31 72*72mm ac panel mount single phase current energy meter
-
LNF32 smart building RS485 single phase ampere current meter digital
-
LNF26 3 Phase LCD Volt Electrical Measuring Instruments Voltage Meter Energy Digital Kwh Meter AC 1A/ 5A AC 100V/380V 96x96x34mm
-
LNF58 LCD digital 3 phase panel mount volt ampere multi functional energy meter
-
LNF56 panel mount RS485 RTM 3 phase multi function energy meter
-
LNF53 energy pulse output 3 phase panel mounted multi function energy meter
Product Description
Product Description
Product Name: LNF36 96*96mm panel mount LCD display 3 phase current meter
This series of digital display AC electrical measurement meters are applied for voltage and current measurement in power distribution system.They support programmable transformation ratio and can be equipped with communcation interface. They are featured with good appearance and compact structure.
Technical parameters
Accuracy | 0.5%(default),0.2% | |
Data update rate | 1s | |
Input | Current | Rated value:AC 1A,5A |
Voltage | Rated value:AC 100V,220V,400V etc | |
Overload | Continuous:2 times of rated value | |
Frequency | 45~65Hz | |
Safe Power Supply | Range | AC 80~270V 50/60Hz,DC 100~350V |
Consumption | ≤5VA | |
Digital Input | 2 dry contact inputs,Isolation:2kVAC | |
Relay Output | 2 relay outputs,contact rated at AC 5A/250V or DC 5A/30V,Isolation:2kVAC | |
Analog Output | dc 4~20mA,load ≤350Ω DC 0~5V,load≥20kΩ | |
Communication Port | RS485,Modbus-RTU,2-WIRE,up tp 9600bps | |
Degree of Protection | Front:IP64,Rear :IP20 | |
Operating Temperature | -40℃~70℃(LED),-25℃~70℃(LCD) | |
Storage Temperature | -45℃~85℃(LED),-30℃~80℃(LCD) | |
Relative Humidity | ≤93%RH | |
Insulation | ≥2kVAC | |
Altitude | ≤2500m |
Model Selection
LNF31 | LNF33 | LNF32 | LNF36 | |||||

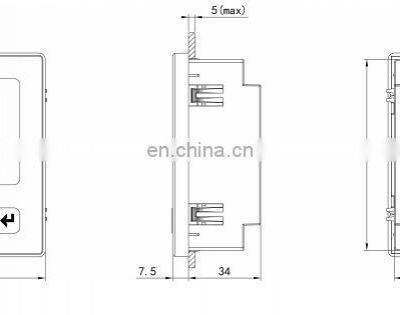

Dimension(mm) | 72x72x44.5 | 72x72x44.5 | 96x96x34 | 96x96x34 | ||||
Real-time measurement | single-phase current | three-phase current | single-phase current | three-phase current | ||||
LCD display | ■ | ■ | ■ | ■ | ||||
RS485 | □ | □ | □ | □ | ||||
Note：“■”Yes，“□”Optional | ||||||||
Recommend Products
Application
■ Data Acquisition
■Limit Value Monitoring
■Measured Value Transducer
■AC current measurement
■Panel Meter
Company Profile
Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing ?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time ?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
