Home > Instruments & Meters > Meter for Electricity > Voltage Meter > S3U48 Panel Mounted 3 Phase RS485 Interface Digital Voltmeter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1993
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LNF26 LCD Display RS485 Communication 3 Phase Panel Smart Energy MeterNegotiableMOQ: 1 -
S3U96 96x96mm Panel Mounted AC 3 Phase Digital Voltage MeterNegotiableMOQ: 1
-
Solar Energy System Multifunctional High Accuracy DC Volt/current Energy MeterNegotiableMOQ: 1
-
LNF56 Smart Panel Mounted Real-time Measurement RTM Energy MeterNegotiableMOQ: 1
-
LNF66 RS485 Communication Embedded Multifunction Smart Energy MeterNegotiableMOQ: 1
Product Description

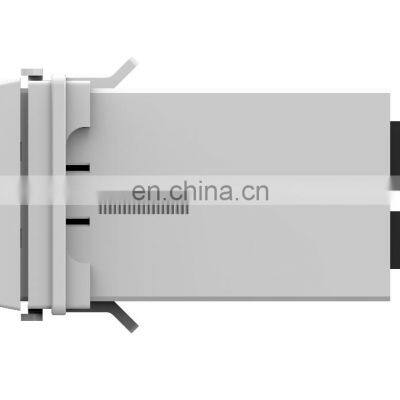

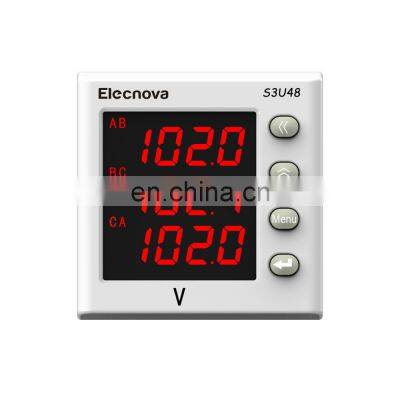

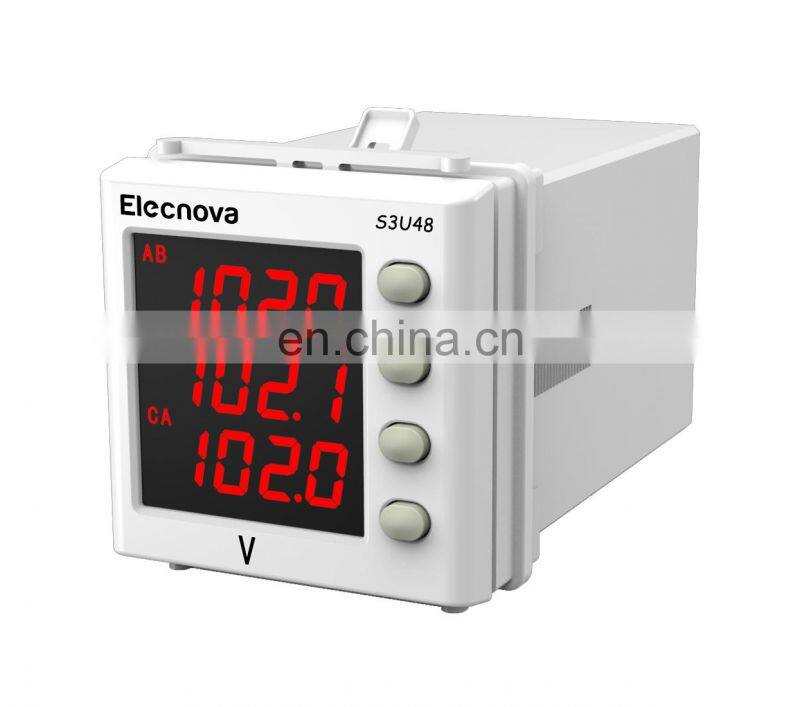

Product Name:S3U48 panel mounted 3 phase RS485 interface digital voltmeter
The digital ammeter is suitable for single-phase or three-phase current parameter measurement in power distribution systems. This series of meters is programmable, supports digital input, relay output, analog output and communication functions（Mod-bus-RTU). It provides different mounting dimensions and can directly replace the analog pointer ammeter.
Technical parameters
Accuracy | 0.5%(default),0.2% | |
Data update rate | 1s | |
Input | Current | Rated value:AC 1A,5A |
Voltage | Rated value:AC 100V,220V,400V etc | |
Overload | Continuous:2 times of rated value | |
Frequency | 45~65Hz | |
Safe Power Supply | Range | AC 80~270V 50/60Hz,DC 100~350V |
Consumption | ≤5VA | |
Digital Input | 2 dry contact inputs,Isolation:2kVAC | |
Relay Output | 2 relay outputs,contact rated at AC 5A/250Vor DC 5A/30V,Isolation:2kVAC | |
Analog Output | dc 4~20mA,load ≤350Ω DC 0~5V,load≥20kΩ | |
Communication Port | RS485,Modbus-RTU,2-WIRE,up tp 9600bps | |
Degree of Protection | Front:IP64,Rear :IP20 | |
Operating Temperature | -40℃~70℃(LED),-25℃~70℃(LCD) | |
Storage Temperature | -45℃~85℃(LED),-30℃~80℃(LCD) | |
Relative Humidity | ≤93%RH | |
Insulation | ≥2kVAC | |
Altitude | ≤2500m |
Application
■ Data Acquisition
■Limit Value Monitoring
■Measured Value Transducer
■AC current measurement
■Panel Meter
■Limit Value Monitoring
■Measured Value Transducer
■AC current measurement
■Panel Meter
