AC Precision Distribution Unit Multi Channel Kwh Meter Data Center Power Monitoring System

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Name: AC precision distribution unit multi channel kwh meter data center power monitoring system

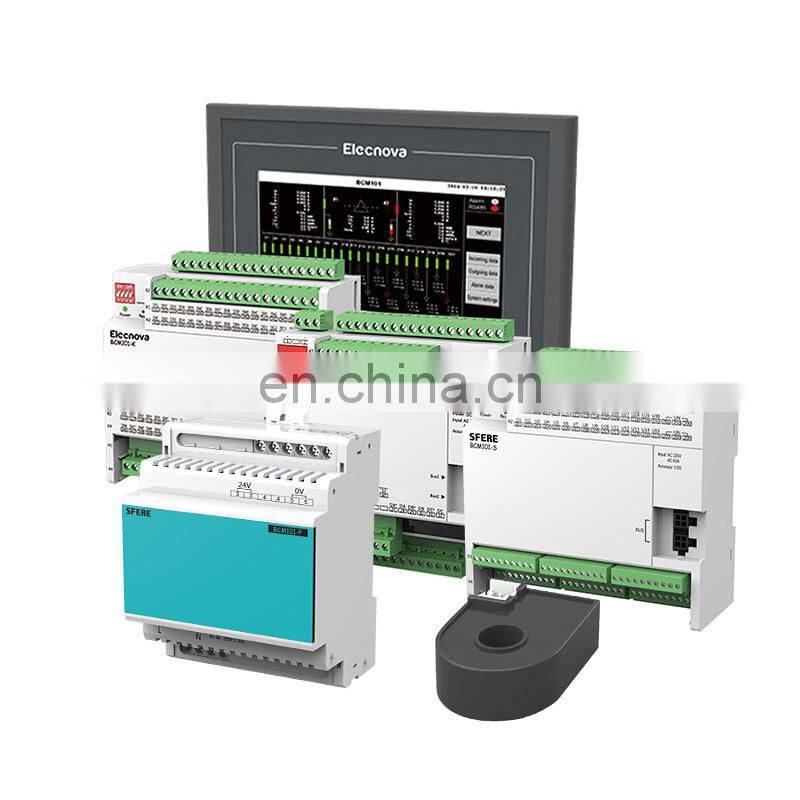

BCM series precision distribution monitoring unit is used to monitor the power parameters of AC/DC header cabinet in data center. It measures the voltage, current, electric energy, harmonic and other electrical parameters of the feeder branch and the switching status of all circuit breakers. It has the function of trip alarm. Each output circuit has two levels of user-set overcurrent alarm to prevent overcurrent. Potential power failure. The product is equipped with 7 inch LCD touch screen, which provides Ethernet communication interface and facilitates access to other systems.

Advantage

■Modular design： incoming line monitoring module, feeder monitoring module, switch monitoring module and display unit

■7-inch LCD touch screen

■Communication： RS485/Ethernet interface

■Fast wire：Plug-in ct with dedicated cable for easy wiring

■Two-level threshold alarm function to provide effective risk warning

Technical parameters

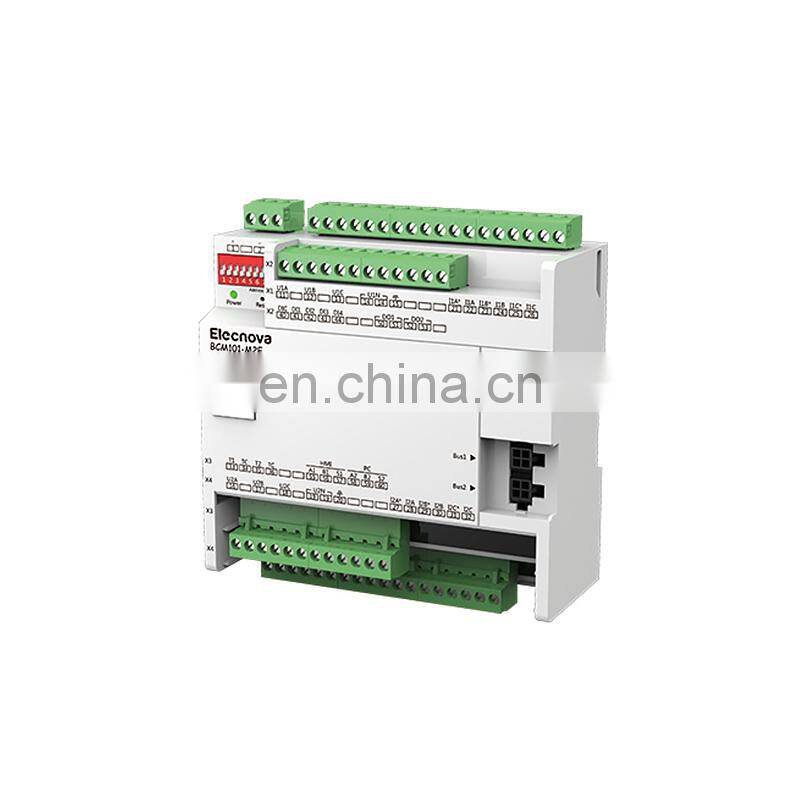

Module	BCM101-M2 Incoming line Module
Accuracy	U/I 0.2, P/Q/PF: 0.5
Signal input	Voltage: 3 phase 3*220/380V, 1 phase AC 220V
Signal input		Currency: AC 5A / AC 1A
Frequency	45~65Hz, Accuracy: ±0.01Hz
Switching Value	Type: 4 Circurt, Dry contact
Switching Value		Withstand voltage: 2kV AC
Relay output	Capacity: 2 Circurt, AC250V/5A DC 30V/3A
Relay output		Withstand voltage: 2kV AC
Communication	2 circurt RS485, Modbus-RTU, 1 circurt RJ45, Modbus-TCP(option)
Power	DC:24V
Installation	12613350mm,Din rail 35mm

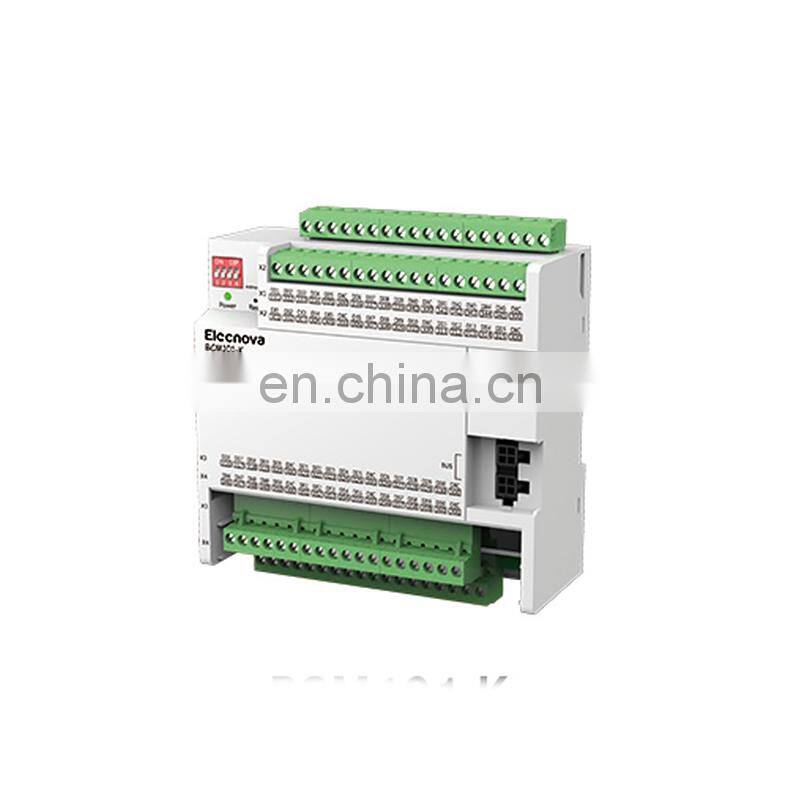

Module	BCM101K Switching Value(Option)
Circurt	60 Circurt, Wet contact
Input Voltage	DC24V±2V
Inslation	2kV
Wire contact	2
Installation	12613350mm, Din rail 35mm

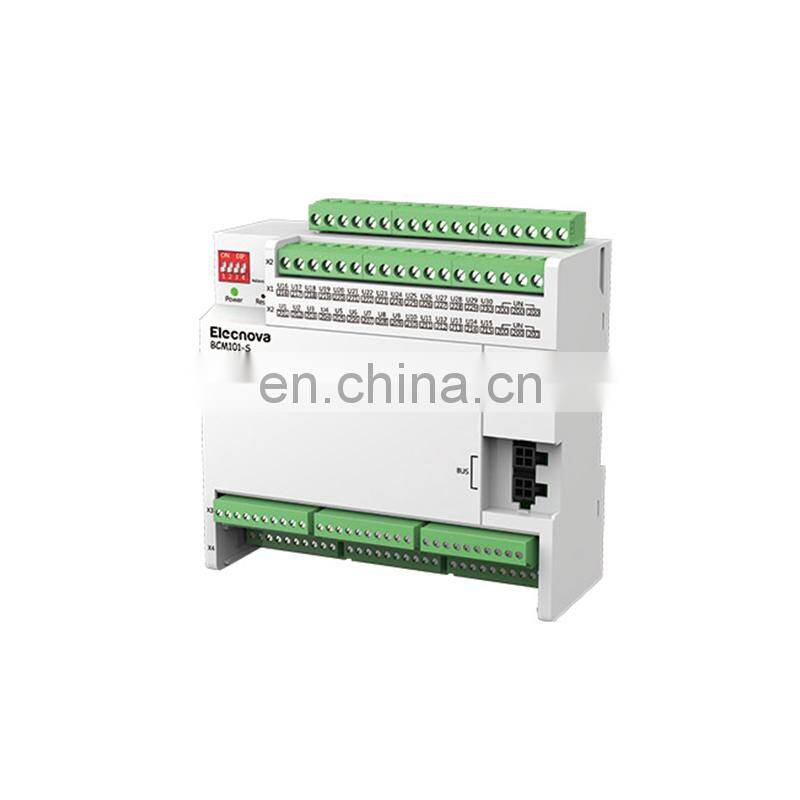

Module	BCM-101-S, Feeder monitoring
Accuracy	U/I 0.2, P/Q/PF: 0.5
Signal input	Voltage: 1 phase AC 220V
		Overload: 1.2Un continuing
		2Un/1 min instant
		Currency: 100A(External CT)
		Overlaod: 1.2ln continuing
		10ln/5s
Frequency	45~65Hz, Accuracy: ±0.1Hz
Switching Value	30 circurt, voltage value determines the breaker Close/Open , Voltage>120 Close, Voltagge <110V Open
Wire contact	2
Installation	12612550mm,Din rail 35mm

Module	BCM101-HMI Display unit
Display			7” LCD touch screen
contact	RS485	Modbus-RTU
contact		USB	USB2.0
current	The scope of work	DC:(24±20%)V
current		Power consumption	≤5W
Installation	Hole Size： 215mmx152mm,Screen

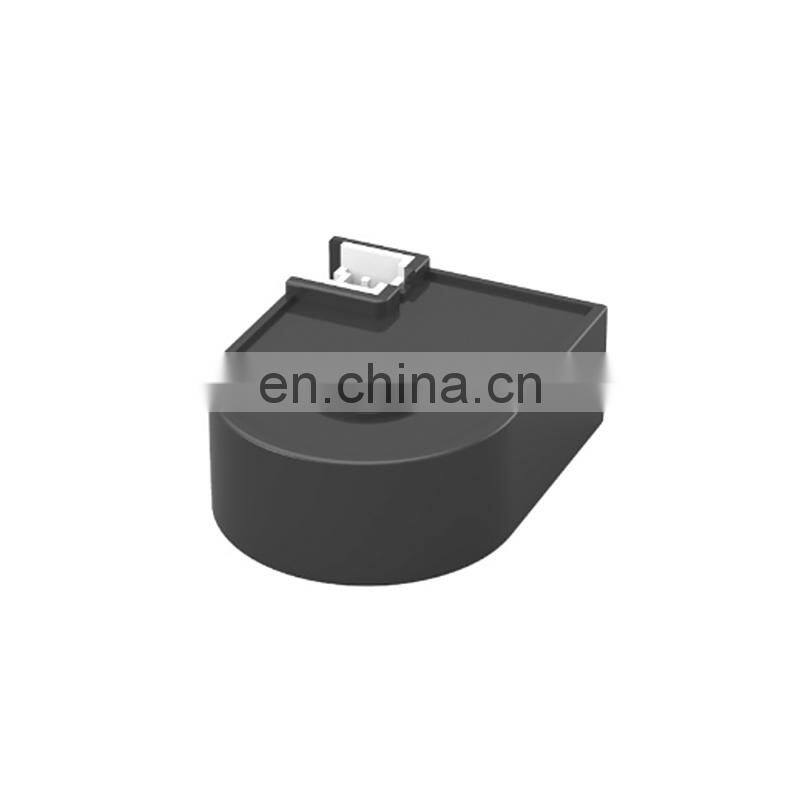

Module	SHI-BCT50IISHI-BCT100II
Rated	5(50)A5(100)A
Accuracy	0.1s
Overload	1.2Un continuing，10Un/5 min instant
Consumption	≤0.2VA
Impedance	≤20mΩ
Installation	5(50)A-L x W x H(mm):2633.511.5
Installation		5(100)A-L x W x H(mm):4552.517.5

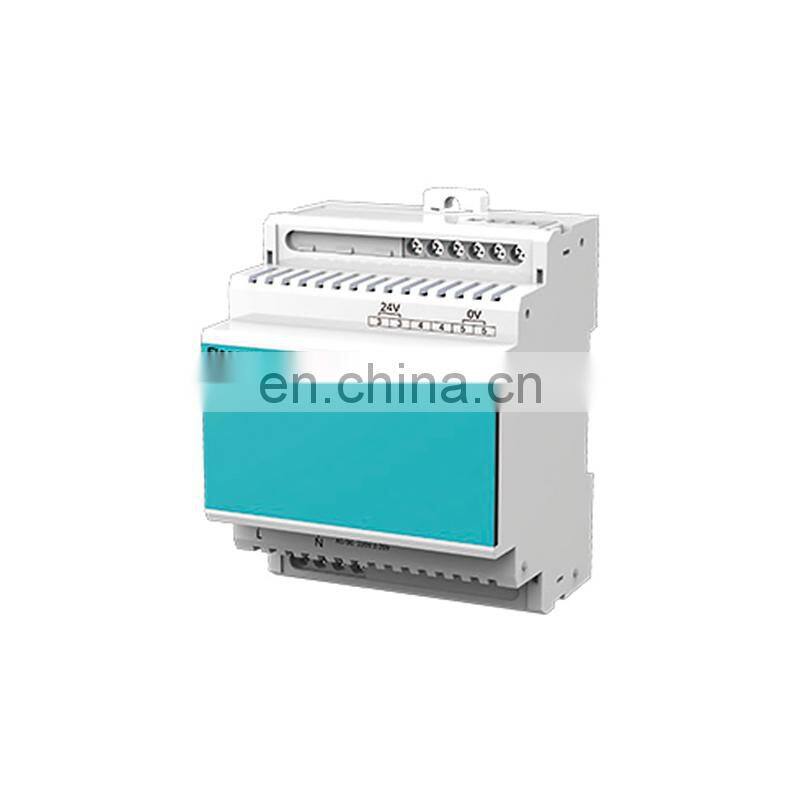

Module	BCM101-P Display unit
Input voltage range	AC180V~260V,DC200V~370V
Output nominal value	DC24V
output power	≤20W
efficacy	>75%
Dielectric strength	AC 2KV/min
installation	L x W x H(mm)：36x90x63.5

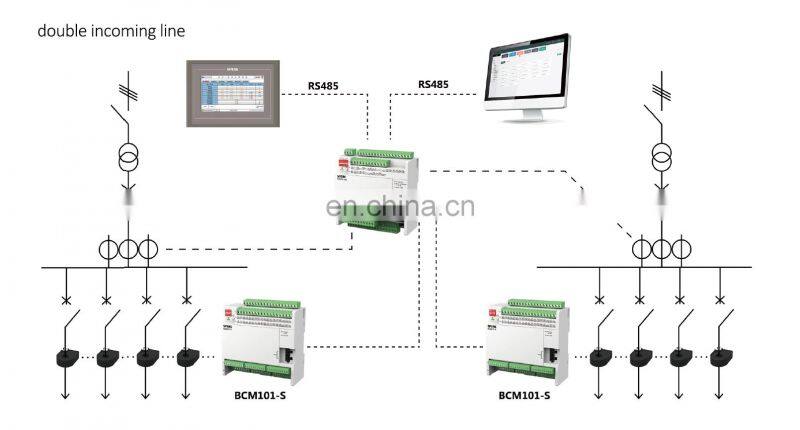

wiring

Recommend Products

Application

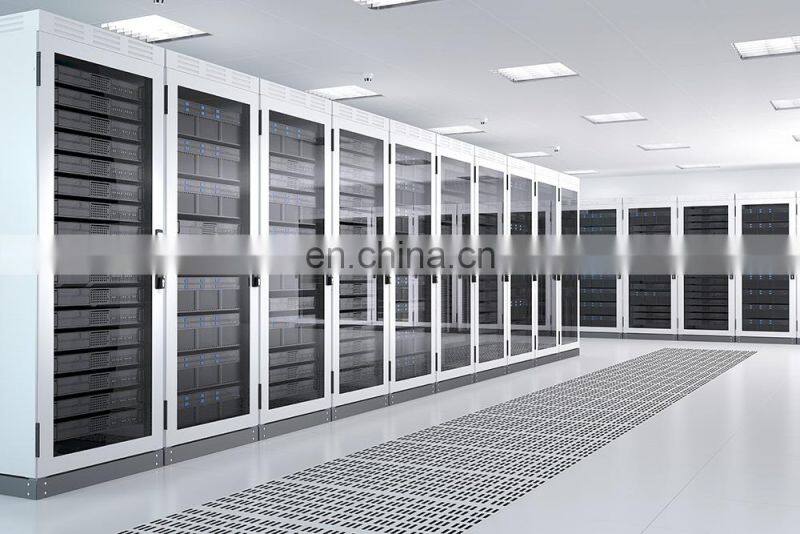

Center data

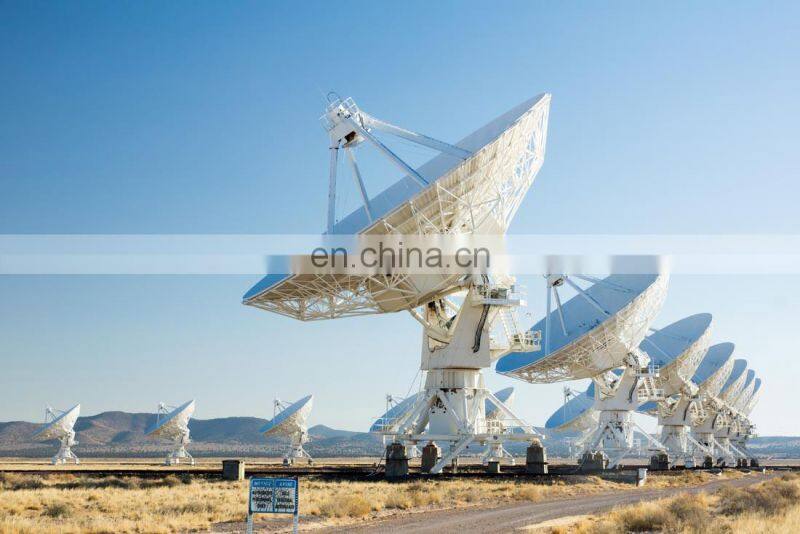

Base station communication

Company Profile

FAQ

Q: Does your company provide customized manufacturing?

A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.

Q: Does your company provide customized manufacturing?

A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.

Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.

Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.

Q: Do you provide samples ? is it free or extra ?
A: You need to pay for the sample and cover the freight as well.

Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
