Product Description

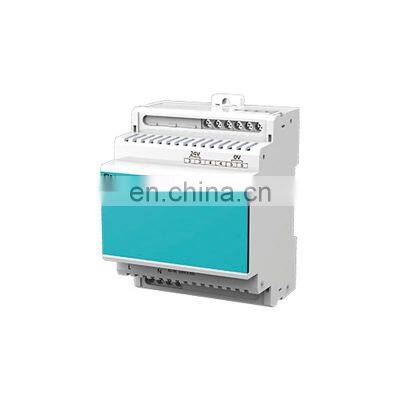

Product Name:Elecnova-BCM101 multi channel data logger data center monitoring

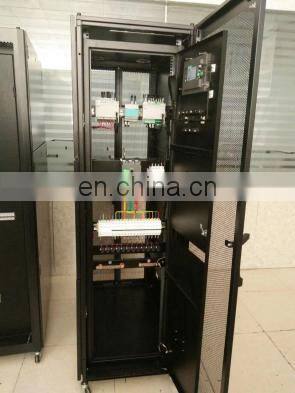

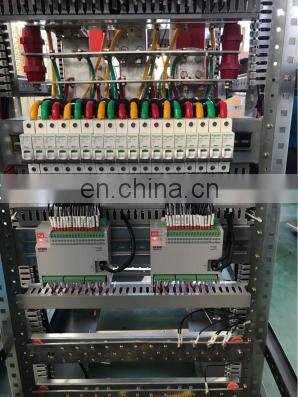

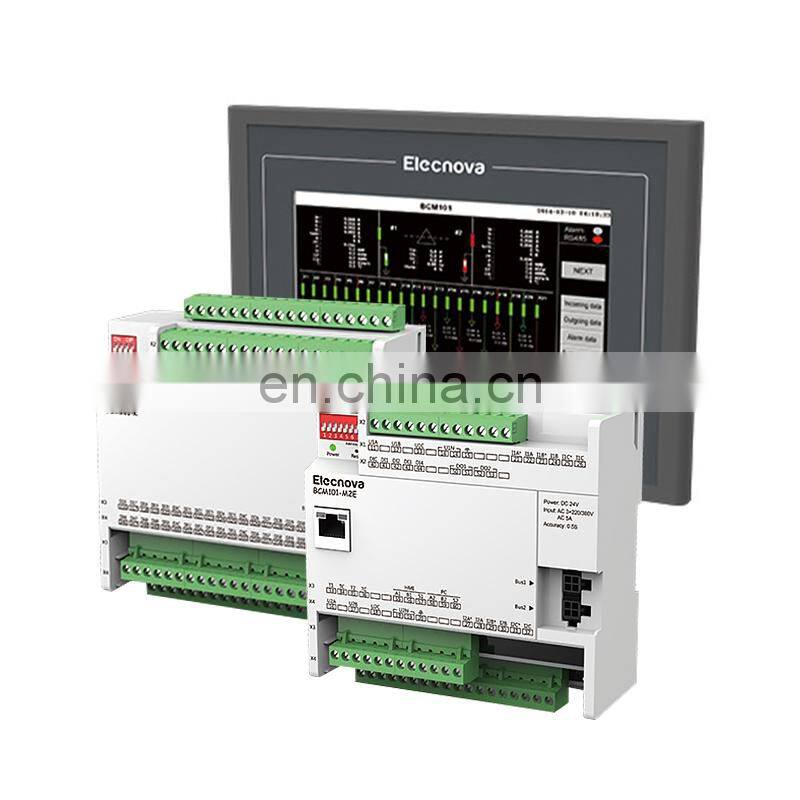

BCM series precision distribution monitoring unit is used to monitor the power parameters of AC/DC header cabinet in data center. It measures the voltage, current, electric energy, harmonic and other electrical parameters of the feeder branch and the switching status of all circuit breakers. It has the function of trip alarm. Each output circuit has two levels of user-set overcurrent alarm to prevent overcurrent. Potential power failure. The product is equipped with 7 inch LCD touch screen, which provides Ethernet communication interface and facilitates access to other systems.

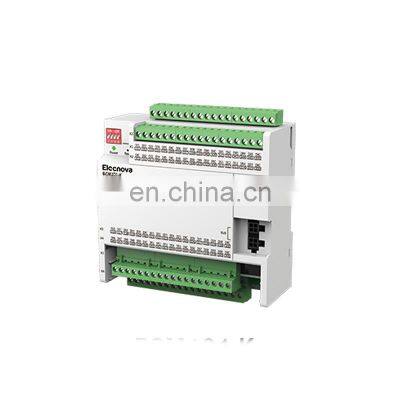

Module No: | BCM101-M2, Incoming line Module |
Accuracy | U/I 0.2, P/Q/PF: 0.5 |
Voltage: 3 phase 3*220/380V, 1 phase AC 220V | |
Currency: AC 5A / AC 1A | |
Frequency | 45~65Hz, Accuracy: ±0.01Hz |
Type: 4 Circurt, Dry contact | |
Withstand voltage: 2kV AC | |
Relay output | Capacity: 2 Circurt, AC250V/5A DC 30V/3A |
Withstand voltage: 2kV AC | |
Communication | 2 circurt RS485, Modbus-RTU, 1 circurt RJ45, Modbus-TCP(option) |
Power | DC:24V |
Installation | 126*133*50mm,Din rail 35mm |
Circurt | 60 Circurt, Wet contact |
Input Voltage | DC24V±2V |
Inslation | 2kV |
Wire contact | 2 |
Installation | 126*133*50mm, Din rail 35mm |

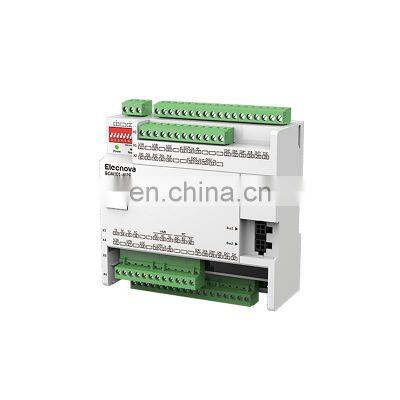

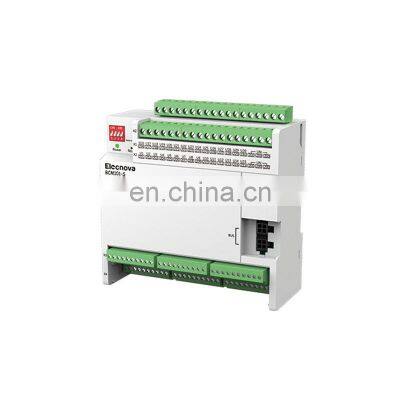

Module | BCM-101-S, Feeder monitoring |
Accuracy | U/I 0.2, P/Q/PF: 0.5 |
Signal input | Voltage: 1 phase AC 220V |
Overload: 1.2Un continuing | |
2Un/1 min instant | |
Currency: 100A(External CT) | |
Overlaod: 1.2ln continuing | |
10ln/5s | |
Frequency | 45~65Hz, Accuracy: ±0.1Hz |
Switching Value | 30 circurt, voltage value determines the breaker Close/Open , Voltage>120 Close, Voltagge <110V Open |
Wire contact | 2 |
Installation | 126*125*50mm,Din rail 35mm |

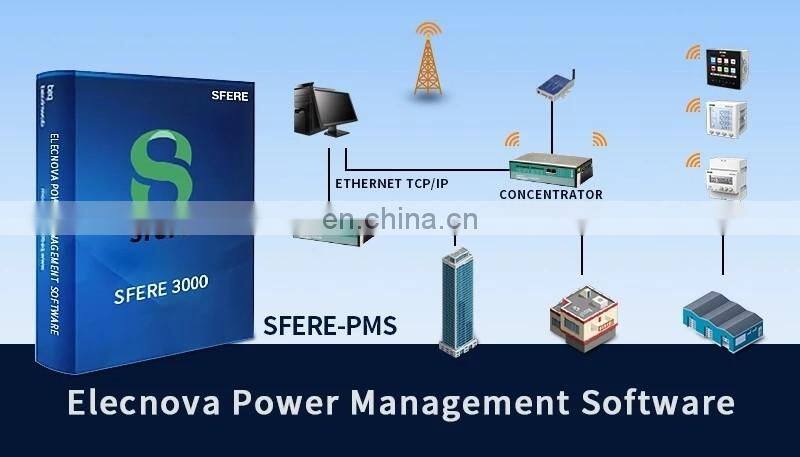

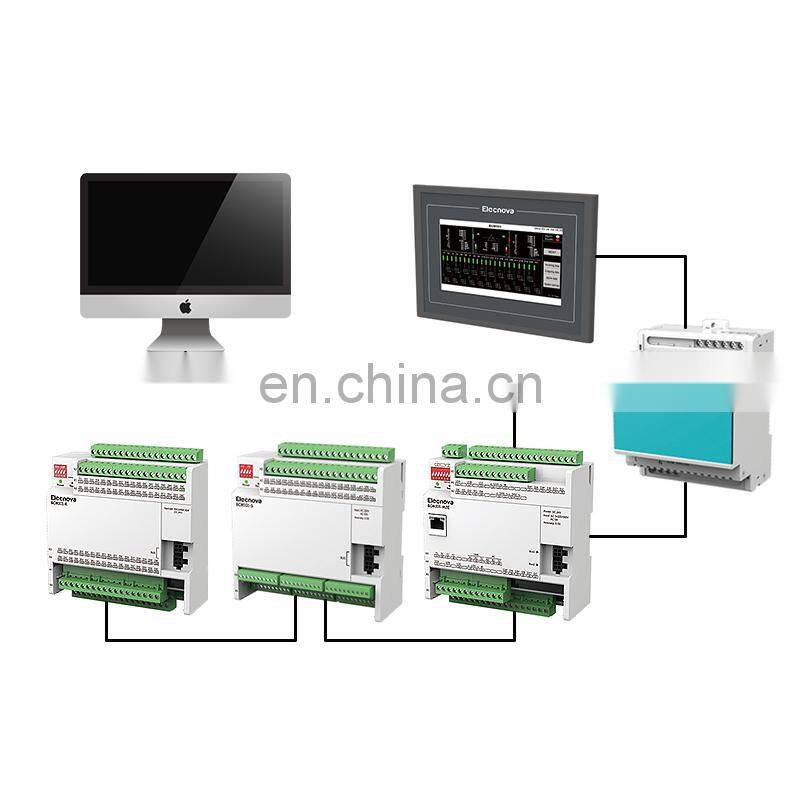

BCM smart energy meter can be used as single unit but also multi-devices running which control by an advanced monitoring software SFERE3000. SFERE3000 is a comunication management software which collect the data from the meters and upload them to the PC or Mobile phone tansmitted by the concentrator. It provides high performance of quality management such as power monitoring, error alam and long-range control to the factory, residencial area and commercial building etc. SFERE3000 is a patent product which developed by Jiangsu Sfere Electric Co., Ltd and the company owns the intellectrual property of it.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
