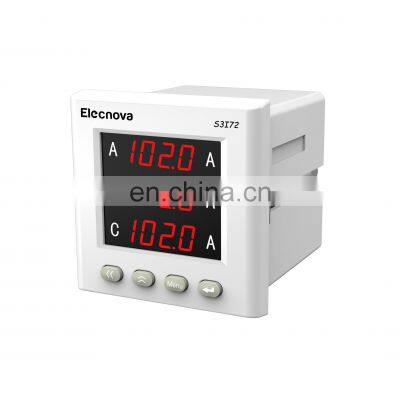

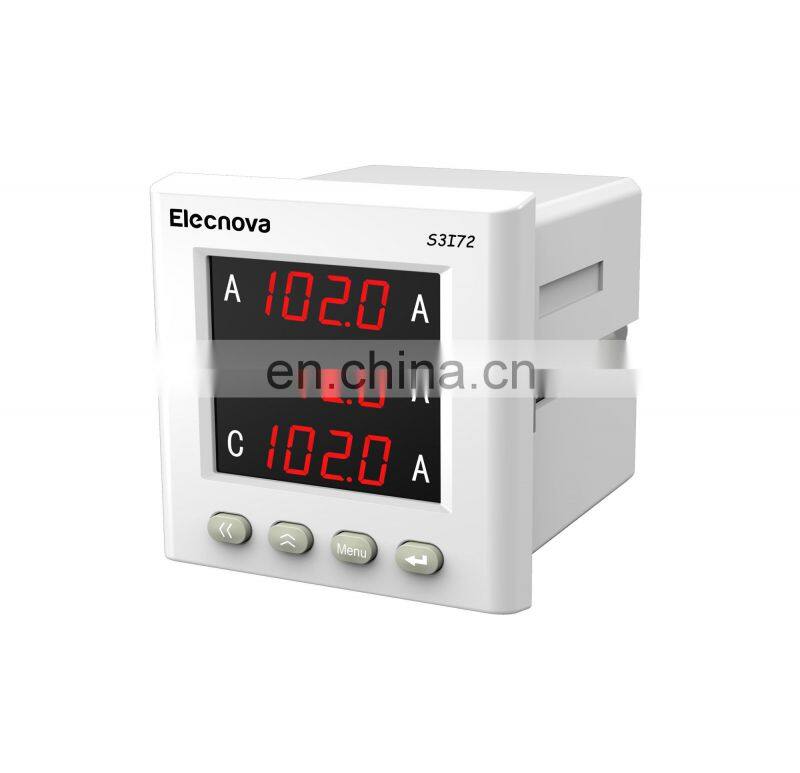

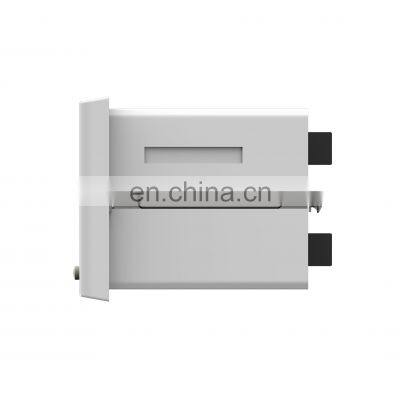

S3I72 3 phase current 72x72 panel digital electricity meter

Name: S3I72 3 phase current 72x72 panel digital electricity meter
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Product Name: S3I72 3 phase current 72x72 panel digital electricity meter

The digital ammeter is suitable for single-phase or three-phase current parameter measurement in power distribution systems. This series of meters is programmable, supports digital input, relay output, analog output and communication functions（Mod-bus-RTU）. It provides different mounting dimensions and can directly replace the analog pointer ammeter.

Technical parameters

Accuracy		0.5%(default),0.2%
Data update rate		1s
Input	Current	Rated value:AC 1A,5A
		Voltage	Rated value:AC 100V,220V,400V etc
		Overload	Continuous:2 times of rated value
		Frequency	45~65Hz
Safe Power Supply	Range	AC 80~270V 50/60Hz,DC 100~350V
Safe Power Supply		Consumption	≤5VA
Digital Input		2 dry contact inputs,Isolation:2kVAC
Relay Output		2 relay outputs,contact rated at AC 5A/250V or DC 5A/30V,Isolation:2kVAC
Analog Output		dc 4~20mA,load ≤350Ω DC 0~5V,load≥20kΩ
Communication Port		RS485,Modbus-RTU,2-WIRE,up tp 9600bps
Degree of Protection		Front:IP64,Rear :IP20
Operating Temperature		-40℃~70℃(LED),-25℃~70℃(LCD)
Storage Temperature		-45℃~85℃(LED),-30℃~80℃(LCD)
Relative Humidity		≤93%RH
Insulation		≥2kVAC
Altitude		≤2500m

Application

■ Data Acquisition

■Limit Value Monitoring

■Measured Value Transducer

■AC current measurement

■Panel Meter

Production Process

SMT

AOI Test

Plug-In Mounting

Wave Soldering

Assembling

Inspection

Packing & Delivery

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.

Q: Does your company provide customized manufacturing?

A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.

Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.

Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.

Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
