Product Description

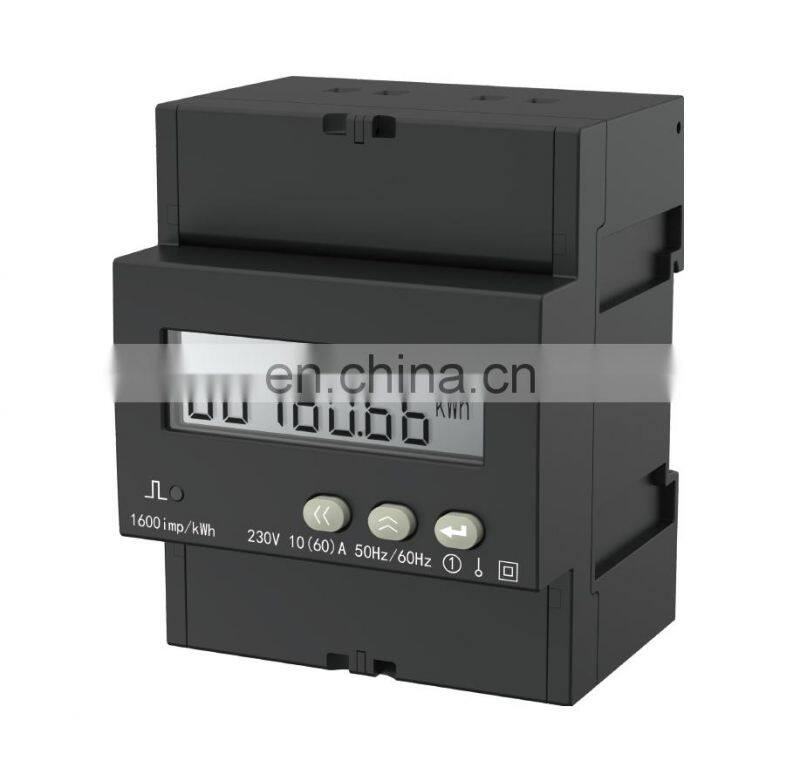

Product Name: Low cost 4 din 90x72mm rail mounted single phase smart kwh energy meter
The din rail mounted electric energy meter adopts advanced energy metering chip, which is designed and manufactured by digital sampling processing technology and SMT process. The series of electric energy meters adopts a modular structure, which is convenient to install and reliable in operation.
Technical parameters
DDS1946-1P
DDSF1946-1P
DDS1946-2P
DDSF1946-2P
DDS1946
DDSF1946
DSS1946
DSSF1946
DTS1946
DTSF1946
Normal Voltage
230V
230V
230V
3*400V
3*230/400V
Current
Direct input
5(40)A
5(100)A
5(100)A
5(100)A
5(100)A
Via CT input
-
-
1.5(6)A
1.5(6)A
1.5(6)A
Accuracy
Class 1(Optional:Class 0.5S)
Frequency
45Hz~65Hz
Voltage Range
0.8Un~1.2Un
Start Current
Direct input
0.004Ib
Via CT input
0.002In
Consumption
<2VA
Energy Pulse
1 output, pulse width (80±20%) ms
RTC Error
≤0.5s/day
Communication
RS485, Modbus-RTU, 2-wire, up to 9600bps
IP Degree
Front: IP51
Operating Temperature
-10℃ ~ 55℃
Storage Temperature
-25℃ ~ 70℃
Relative Humidity
≤93%
certificate
CE, CCC,MID
COMM module selection

PD194Z-C10

Communication：LoRa wireless transmission module

S12 Gateway

Communication：Modbus-RTU/DLT645 to Modbus-TCP

S15 Gateway

Communication：2/3/4G, NB-IoT, WiFi, Bluetooth, LoRaWAN, ZigBee
Recommend Products
Application
■ Building automation

■ Sub-item metering

■ Power monitoring

■ Remote monitoring of electrical equipment

■ Din rail mounted meter
