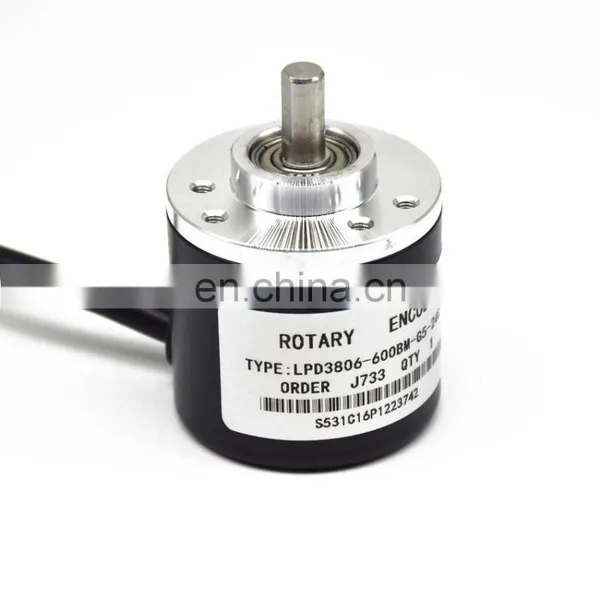

600 Pulse Incremental Photoelectric Elevator Rotary Encoder 5-24V Coupling Optional NPN,AB Two Phase 600ppr LPD3806-600BM-G5-24C
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
400 Pulses Incremental Optical Elevator Rotary Encoder AB Two-phase 5-24V Optical Rotary Encoder LPD3806-400BM-G5-24CNegotiableMOQ: 1 -
15g Humidifier Air Purifier AC220V 110V Ozone Generator Air Cleaner Home Air Purifier Dehumidifiers Ozone Power ModuleNegotiableMOQ: 1
-
Portable Ionized Air Purifier 10g 12V Car Air Purifier Electronic Air Purifier Industrial Ozone GeneratorNegotiableMOQ: 1
-
E18-D80NK Photoelectric Sensor Module Infrared Obstacle Avoidance Proximity Switch 3-80cm Detection Range Electric SwitchNegotiableMOQ: 1
-
Rotary Encoder 400 Pulses Incremental Optical Rotary Encoder AB Two-phase 5-24V 400 Pulses Incremental OpticalNegotiableMOQ: 1
Product Description
1.) parameter
| Type | Rotary Encoder |
| Working voltage | DC 5-24V |
Model: 400, 600, 360P / R incremental rotary encoder, AB two phase. The up-and-down counting pulse signal can be completed by the generation of the 90° phase between the A phase and the B phase.

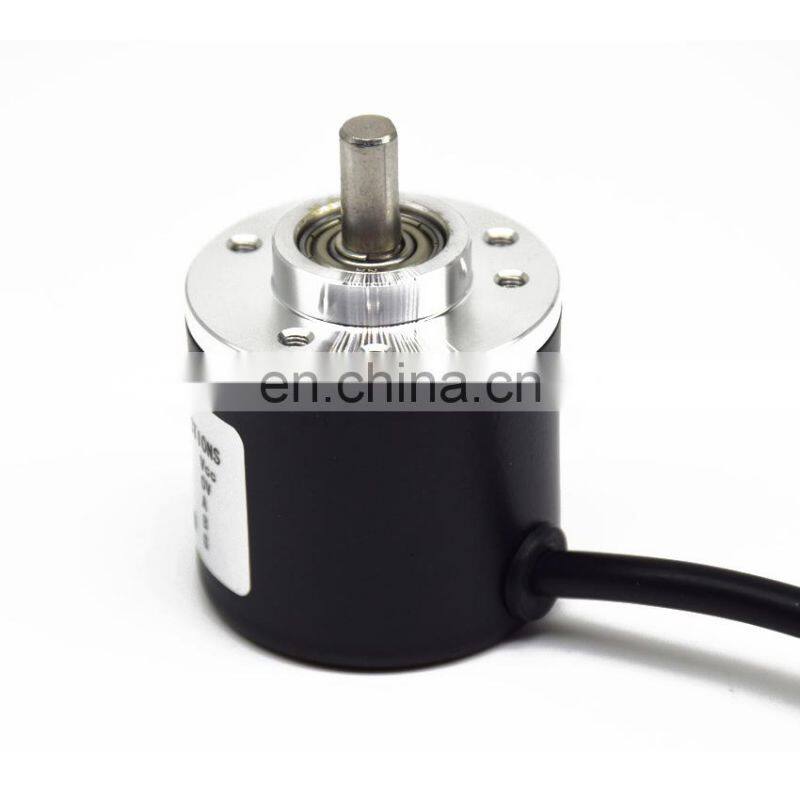

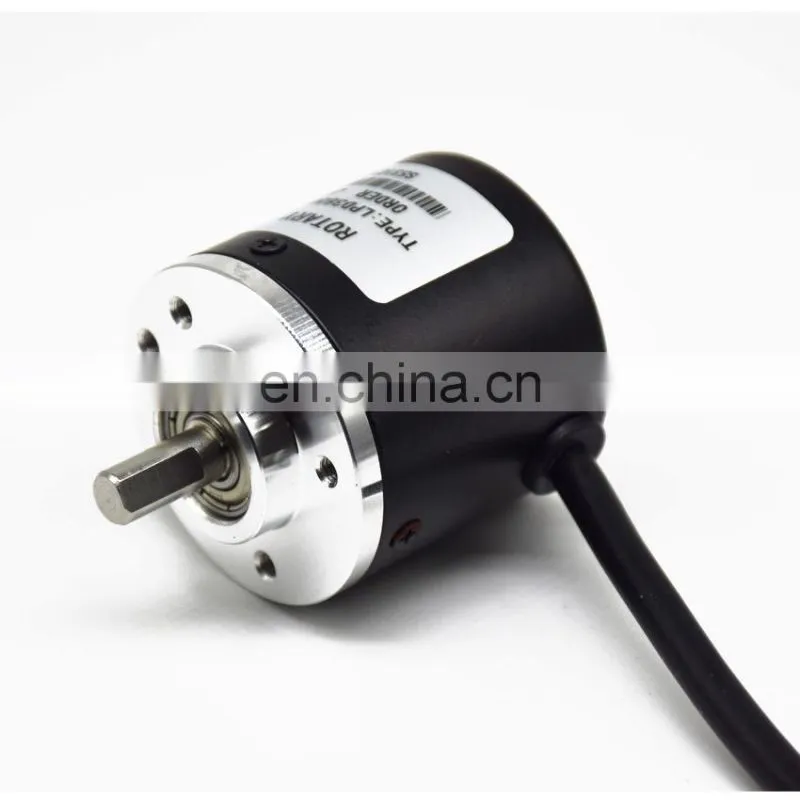

Performance: 400, 360, 600 pulses / rev. Working voltage: DC5-24V, maximum mechanical speed 5000 rpm, electrical frequency 20K / sec, integrated speed 2000 rev / min. Dimensions: Encoder body size: φ38mm; shaft φ6×13mm; off-axis platform: height 5mm, φ20mm; fixing hole: M3 screw, 3 mounting holes on 30 circle, and 3 mounting holes on 28 circles ; side outlets.

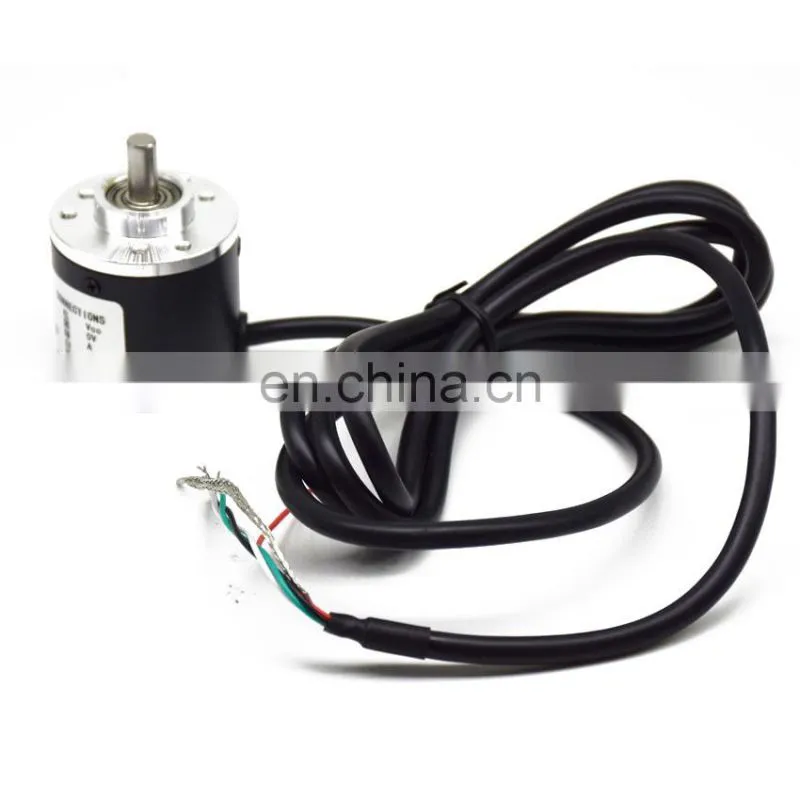

Wiring method: green = A phase, white = B phase, red = Vcc positive power supply, black = V0 ground, please wire as above. Another metal shielding mesh layer is anti-interference.
Performance: 400, 360, 600 pulses / rev. Working voltage: DC5-24V, maximum mechanical speed 5000 rpm, electrical frequency 20K / sec, integrated speed 2000 rev / min. Dimensions: Encoder body size: φ38mm; shaft φ6×13mm; off-axis platform: height 5mm, φ20mm; fixing hole: M3 screw, 3 mounting holes on 30 circle, and 3 mounting holes on 28 circles ; side outlets.
Wiring method: green = A phase, white = B phase, red = Vcc positive power supply, black = V0 ground, please wire as above. Another metal shielding mesh layer is anti-interference.
2.)product display
