E18-D80NK Photoelectric Sensor Module Infrared Obstacle Avoidance Proximity Switch 3-80cm Detection Range Electric Switch
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rotary Encoder 400 Pulses Incremental Optical Rotary Encoder AB Two-phase 5-24V 400 Pulses Incremental OpticalNegotiableMOQ: 1 -
Adjustable Sensitive Automatic On Off Photocell Street Lamp Light Switch Controller DC AC 220V 10A Photoswitch SensorNegotiableMOQ: 1
-
AS-22 Adjustable Automatic On Off Photocell Street Lamp Light Switch Controller DC AC 220V 10A Photo Control Photoswitch SensorNegotiableMOQ: 1
-
AS-10 10A Photoswitch Sensor Switch Auto On Off Photocell Street Light Control AC/DC Universal 12V 24V 220V Photo SensorNegotiableMOQ: 1
-
AS-20 Waterproof Automatic Light Sensor Switch Delay Intelligent Street Light Switch Controller The Adjustable Photo SensorNegotiableMOQ: 1
Parameters
Description:
E18-D80NK is a set of transmitter and receiver in one of the photoelectric sensor. Detection distance can be adjusted according to requirements. The sensor has many advantages such as long distance detection, low visible light interference, cheap price, easy assembly, and easy to use. It can be widely used in robot obstacle avoidance, pipeline line piece and many other automation products.
Application:
1. Automatic production line of goods counting equipment
2. Multi-function reminder
3. Take the maze robot
Technical Parameters:
1. Output Current DC / SCR / Relay Output: 100mA / 5V power supply
2. Current consumption DC <25mA
3. Response time <2ms
4. Pointing angle: < 15 , the effective distance 3-80 CM adjustable
5. Detection of objects: transparent or opaque body
6. Working temperature: -25 C ~ +55 C
7. Standard detection object: the following incandescent 3000LX below 10000LX sunlight
8. Housing material: plastic
Electrical Characteristics:
| Sensing range | 3-80cm,3-30cm |
| Sensing object | Translucency, opaque |
| Supply voltage | 5VDC/6-36VDC |
| Output operation | Normally open (O) |
| Output | DC three-wire system (NPN) |

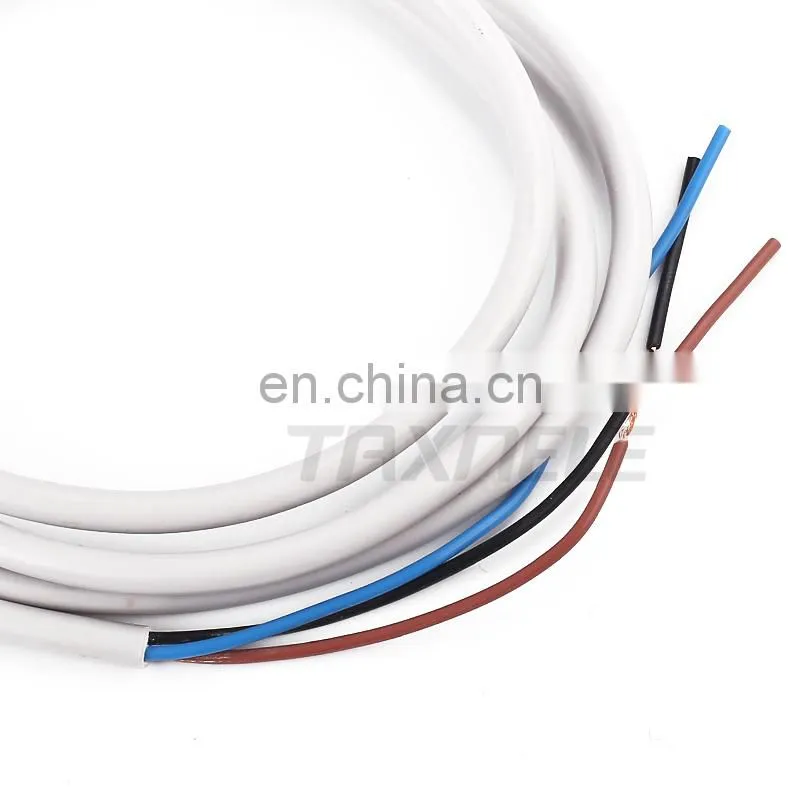

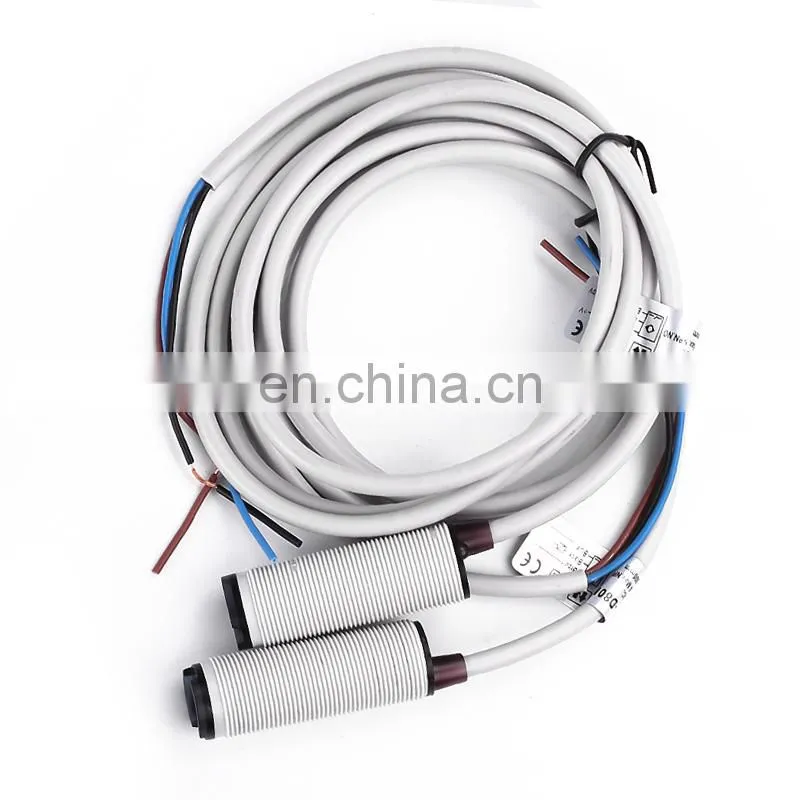

Product display
