Home > Electrical & Electronics > Power Supply & Distribution > Power Distribution Cabinet & Box > Rotary Encoder 400 Pulses Incremental Optical Rotary Encoder AB Two-phase 5-24V 400 Pulses Incremental Optical

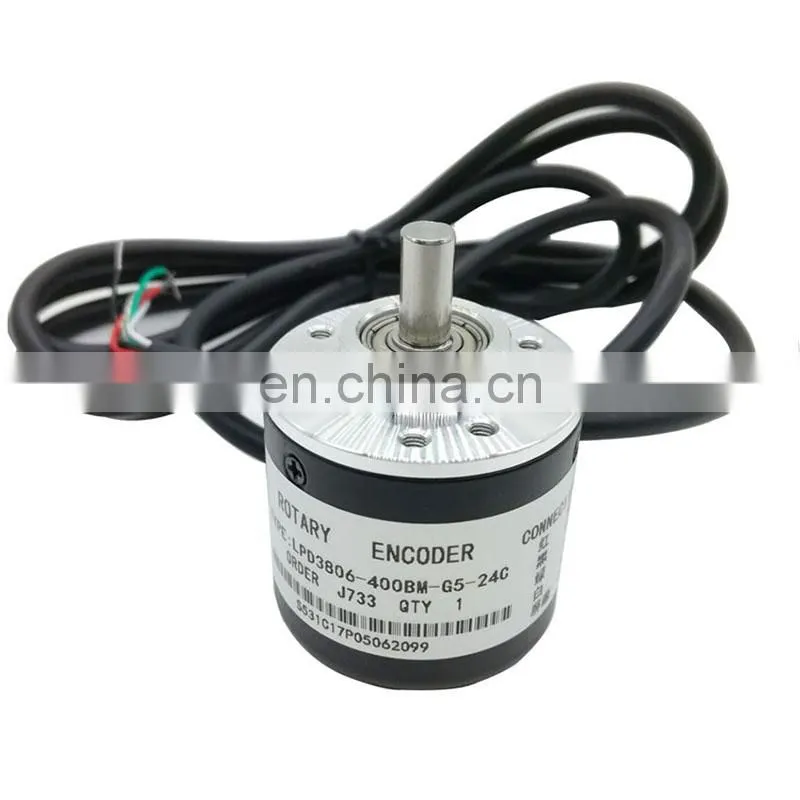

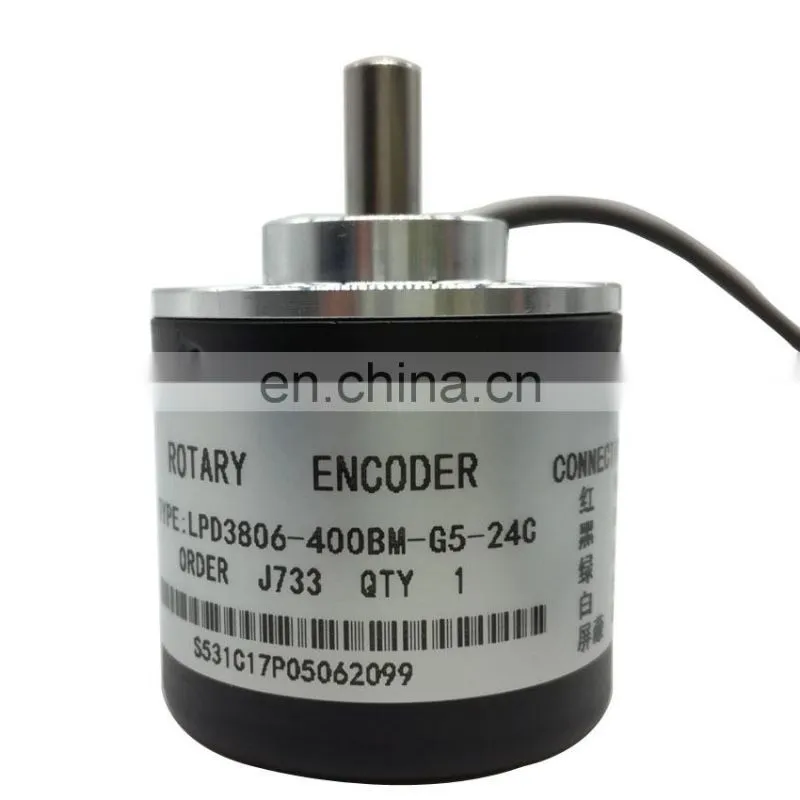

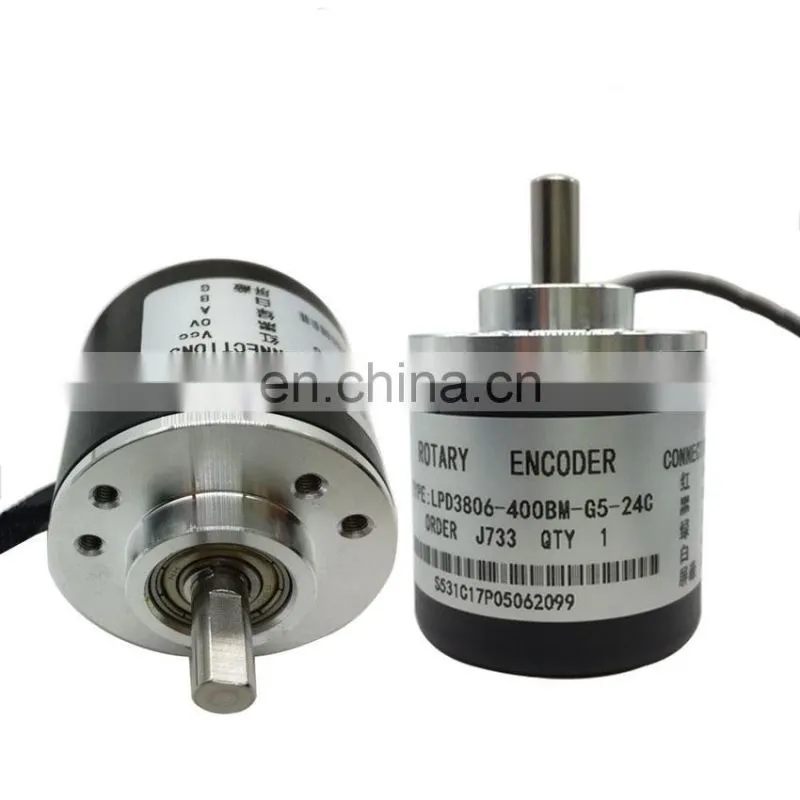

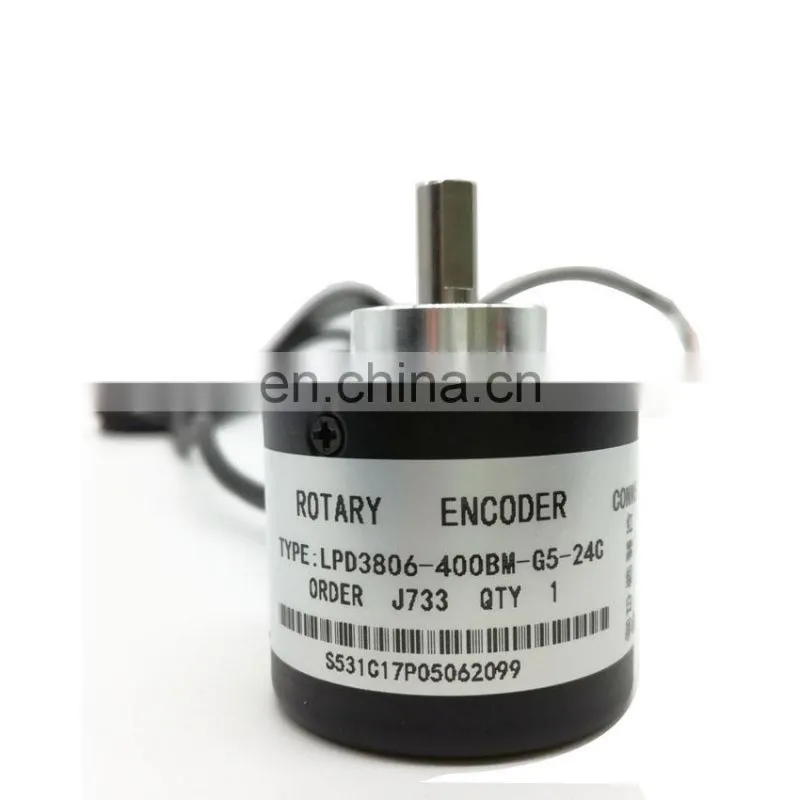

Rotary Encoder 400 Pulses Incremental Optical Rotary Encoder AB Two-phase 5-24V 400 Pulses Incremental Optical
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Adjustable Sensitive Automatic On Off Photocell Street Lamp Light Switch Controller DC AC 220V 10A Photoswitch SensorNegotiableMOQ: 1 -
AS-22 Adjustable Automatic On Off Photocell Street Lamp Light Switch Controller DC AC 220V 10A Photo Control Photoswitch SensorNegotiableMOQ: 1
-
AS-10 10A Photoswitch Sensor Switch Auto On Off Photocell Street Light Control AC/DC Universal 12V 24V 220V Photo SensorNegotiableMOQ: 1
-
AS-20 Waterproof Automatic Light Sensor Switch Delay Intelligent Street Light Switch Controller The Adjustable Photo SensorNegotiableMOQ: 1
-
KS-C2 Series NPN Color Sensor Switch KS-C2G KS-C2W KS-C2R KS-C2B KS-C2RG KS-C2WG KS-C2GB, 10-30VDC NPN PNP Color Mark SensorNegotiableMOQ: 1
Product Paramenters
Model: 400P / R incremental rotary encoder, AB two-phase. Can identify the direction of the count pulse signal generated by the
rotation of the grating disc and optocoupler.
Performance: 400 pulses per revolution.
rotation of the grating disc and optocoupler.
Performance: 400 pulses per revolution.
Working voltage :5-24V,
maximum mechanical speed of 1000 rev / minute Dimensions: the
encoder body size: | Õ 38mm; shaft Ø6 x 13mm; axis platform: high-5mm Ø 20 mm;
encoder body size: | Õ 38mm; shaft Ø6 x 13mm; axis platform: high-5mm Ø 20 mm;

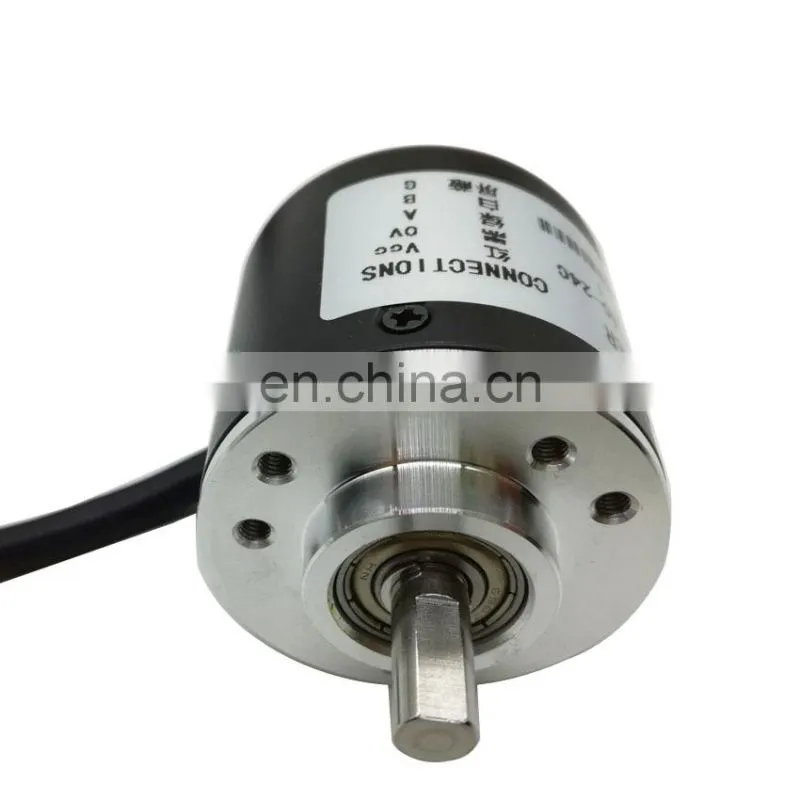

fixing holes: M3 screws, three mounting holes round
of 30, three mounting holes in round 28; side of the outlet.
Output: the output circuit NPN open collector output type; pulse of A, B two-way;
Wiring: Vcc positive supply, 0V to A-phase, B-phase, shielded cable.
Note: AB two-phase outputs must not be connected directly to the power supply VCC, otherwise, they will burn the output
transistor.
of 30, three mounting holes in round 28; side of the outlet.
Output: the output circuit NPN open collector output type; pulse of A, B two-way;
Wiring: Vcc positive supply, 0V to A-phase, B-phase, shielded cable.
Note: AB two-phase outputs must not be connected directly to the power supply VCC, otherwise, they will burn the output
transistor.
