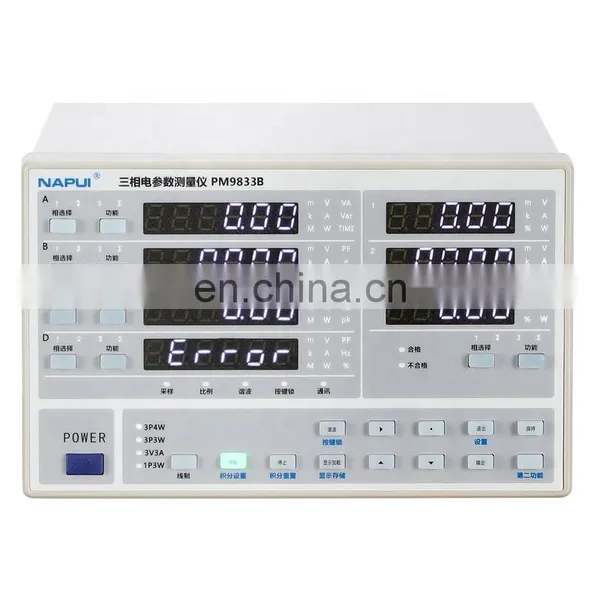

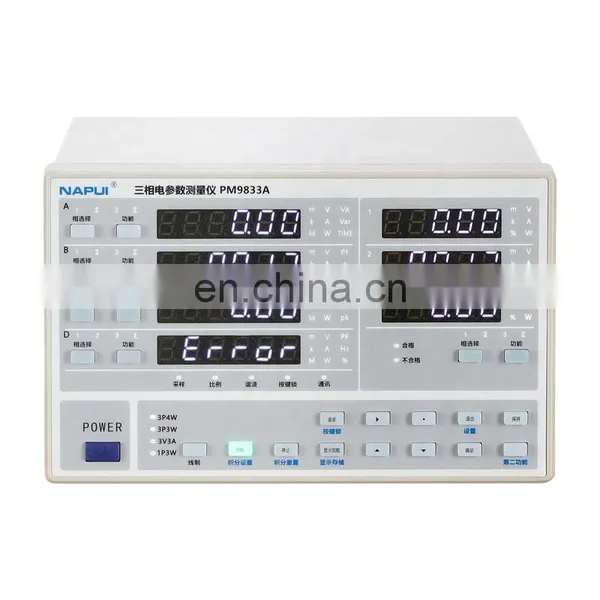

NAPUI PM9833 Three Phase Digital Display Watts Meter four wires power meter

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

All products Support for small batch customization,pls contact us if necessary.

Products Features:

1. LED digital screen display, voltage, current, power, power factor/frequency

2. All measurements are Trms

3. Automatic range

4. Accuracy: 0.5

5. Not affected by external noise

6. Support data locking

7. Can be set current and power lower and upper alarm function, PASS the light is Green, NG the light is Red, Easy to distinguish

Areas of Application:

Power consumption test for household appliance

Power consumption test for the air-condition

Power consumption for light products

Power consumption test for LED Lamps

Test for electric machine and Motor

Test for chargers and switching power supply

Connection	Single Phase, three-phase three-wire system two-unit method, three-phase three-wire three-unit method and three-phase four-wire system
Display	LED Digital screen
Measuring items	Voltage-V, current-A, active power-W, reactive power Var, apparent power VA, power factor PF, Frequency Hz, Phase angle ph
Measuring form	TRMS
Voltage Range	5V-600V AC(Switch the range automatically Peak Voltage:700V AC Min test voltage:5V AC
Current Range	10mA-20A AC(Switch the range automatically) Peak current:26A AC Min. test current :10mA AC
Power Range	0.1W-12KW (Note: the ranges of active power, reactive power, apparent power are consistent)
Power factor range	0.001-1.000 Compute mode: watt(W)/[Voltage(V)*current(A)]=Power factor(PF)
The frequency range	45-65Hz
Basic Accuracy	±0.4% reading +0.1%range+1 digit
Measuring Speed	Five times per second
Input Impedance	About 2MΩ(All voltage)
Power Supply	AC (100-250)V 45/400Hz, DC (100-300)V
Volume and weight	430mm(L)360mm(W)155mm(H), 9.0KG
Attachment	Power wire, the warranty card, specification;Optional RS232 or RS485
