Three phase four wires power meter,Three phase Power Meter
- 1000 per Month
- T/T Credit Card
You May Like
Product Description

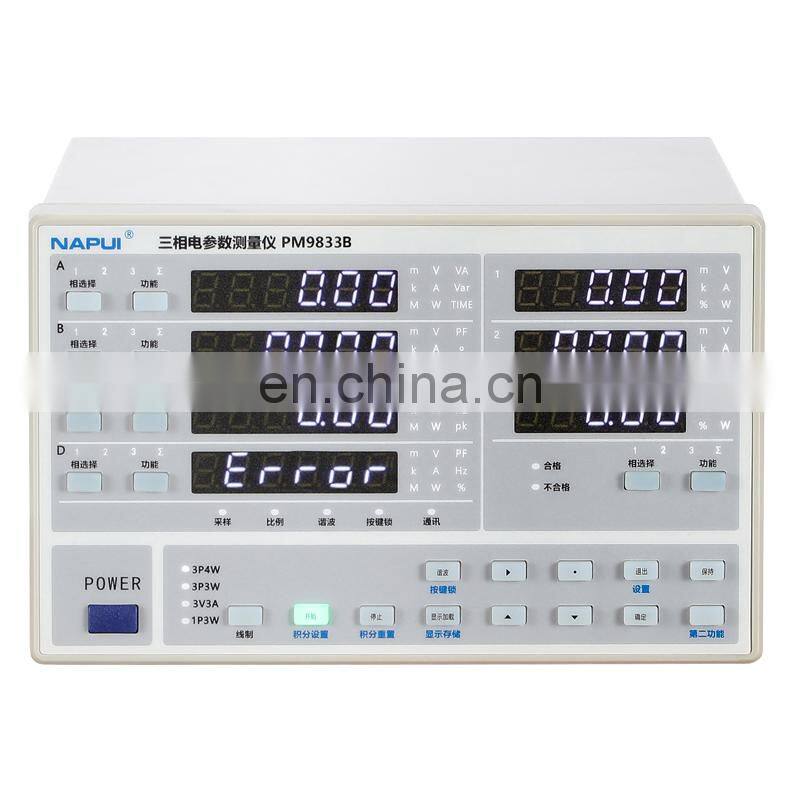

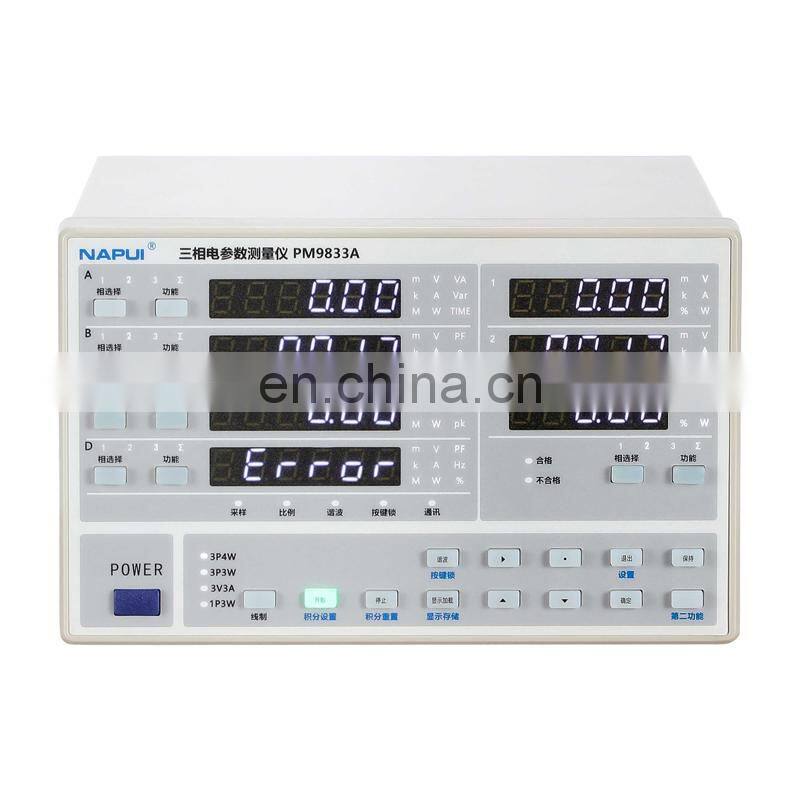

Three phase four wires power meter,Three phase Power Meter
|
Connection |
Single Phase, three-phase three-wire system two-unit method, three-phase three-wire three-unit method and three-phase four-wire system |
|
Display |
Windows with 3LED digital tube, 7 LED digital tubes |
|
Measuring items |
Voltage-V, current-A, active power-W, reactive power Var, apparent power VA, power factor PF, Frequency Hz, Phase angle ph |
|
Measuring form |
True Root Mean Square(TRMS) |
|
Voltage Range |
75v/150/300v/600v AC(Switch the range automatically Peak Voltage:800v AC Instantaneous Max allowable input 1600V AC Min test voltage:10v(Below 10mA, can't be test) |
|
Current Range |
0.5A/2A/8A/20A AC (Switch the range automatically) Peak Current:50A AC Min test current :10mA AC (Below 10mA, can't do test) |
|
Power Range |
0.1W-12KW (Note: the ranges of active power, reactive power, apparent power are consistent) |
|
Power factor range |
0.001-1.000 Compute mode: watt(W)/[Voltage(V)*current(A)]=Power factor(PF) |
|
The frequency range |
45-65Hz |
|
Basic Accuracy |
±0.4% reading +0.1%range+1 digit |
|
Measuring Speed |
Five times per second |
|
Input Impedance |
≥1MΩ(All voltage) |
|
Power Supply |
220V AC,50/60 Hz |
|
Volume and weight |
430mm(L)*360mm(W)*155mm(H), 9.0KG |
|
Attachment |
Power line, fuses, specification |
Product Features:
1.Can do three-phase or single phase measurement
2.You can test all parameters of the three-phase electricity: voltage V, current A, active power W, reactive power Var, apparent factor VA, power factor PF, frequency Hz, phase angle ph.
3.All measurements are Trms
4.Automatic range
5.Accuracy :0.5
6.Not affected by external noise
7.Support Data locking
Areas of applicaion:
Power consumption test for home appliances
Power consumption test for the air conditioning unit
Electric power consumption of lighting electrical appliance
Power consumption test for large scale equipment
Test for electrical machine and motor
Dispatch is arranged within 1-3days once your payment is finished verification by our Financial department. If there is no option of express you need. Pls contact us in advance.
The delivery time show when you choice the express is for reference. We don't guarantee the time the same with it all the time, due to difference in customs clearing times in individual countries, which may affect how quickly your product is inspected.
Dongguan NAPUI Electronic Technology Co., Ltd is 8 years specialist digital power meter Manufacturer in China.
All the power meter waranty are 12 months.
All the items are EXW.
Q: 1. English version is available?
A: Yes
Q: 2. Does it have the function of Communication?

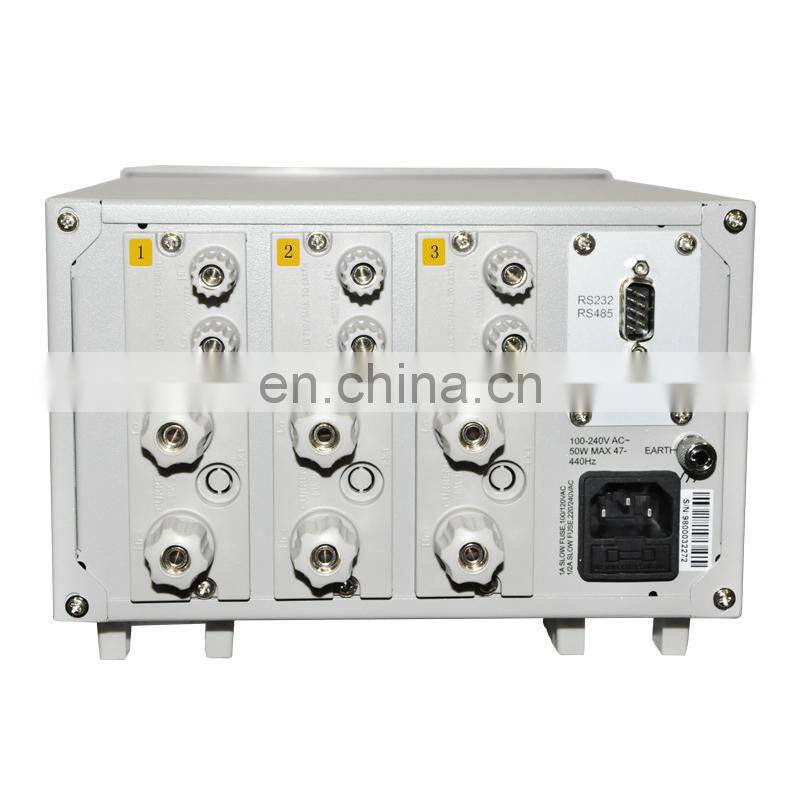

A: Yes, there have RS232 or RS485 (Optional).
Q: 3. What is the lead time for delivery?
A:7 workdays according to your specific requirement
Q: 4. Do you have any MOQ limit?
A: 1pc
Q: 5. what express do you often use?
A: DHL, UPS, FedEx,etc.Any method you can choose!
Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T, L/C,Paypal, etc.
Q: 7.Can you make OEM service?
A: Yeah,we can!
