Harmonic Type 3 Phase Power Analyzer

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

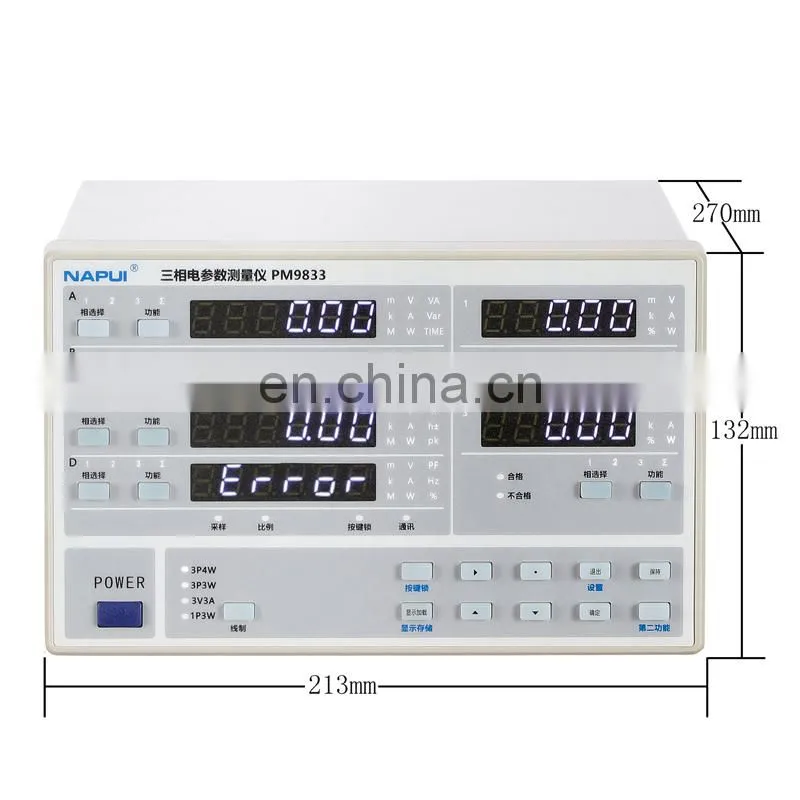

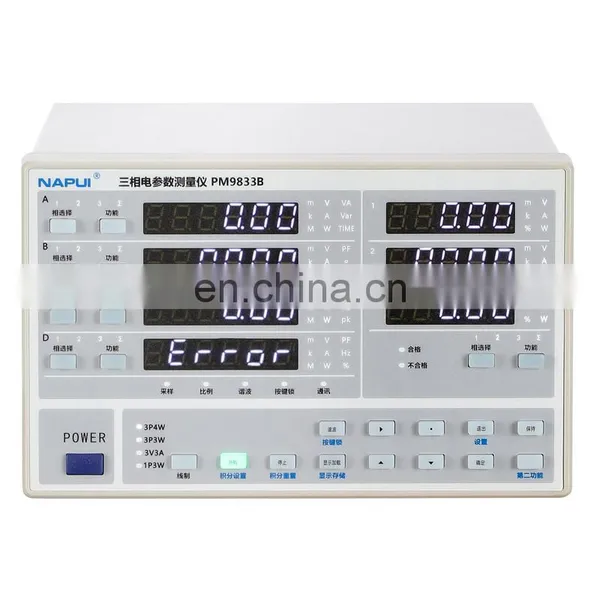

Harmonic type 3 phase power analyzer

Connection	Single Phase, three-phase three-wire system two-unit method, three-phase three-wire three-unit method and three-phase four-wire system
Display	Windows with 3LED digital tube, 7 LED digital tubes
Measuring items	Voltage-V, current-A, active power-W, reactive power Var, apparent power VA, power factor PF, Frequency Hz, Phase angle ph
Measuring form	True Root Mean Square(TRMS)
Voltage Range	75v/150/300v/600v AC(Switch the range automatically Peak Voltage:800v AC Instantaneous Max allowable input 1600V AC Min test voltage:10v(Below 10mA, can't be test)
Current Range	0.5A/2A/8A/20A AC (Switch the range automatically) Peak Current:50A AC Min test current :10mA AC (Below 10mA, can't do test)
Power Range	0.1W-12KW (Note: the ranges of active power, reactive power, apparent power are consistent)
Power factor range	0.001-1.000 Compute mode: watt(W)/[Voltage(V)*current(A)]=Power factor(PF)
The frequency range	45-65Hz
Basic Accuracy	±0.4% reading +0.1%range+1 digit
Measuring Speed	Five times per second
Input Impedance	≥1MΩ(All voltage)
Power Supply	220V AC,50/60 Hz
Volume and weight	430mm(L)360mm(W)155mm(H), 9.0KG
Attachment	Power line, fuses, specification

Product Features:

1.Can do three-phase or single phase measurement

2.You can test all parameters of the three-phase electricity: voltage V, current A, active power W, reactive power Var, apparent factor VA, power factor PF, frequency Hz, phase angle ph.

3.All measurements are Trms

4.Automatic range

5.Accuracy :0.5

6.Not affected by external noise

7.Support Data locking

Areas of applicaion:

Power consumption test for home appliances

Power consumption test for the air conditioning unit

Electric power consumption of lighting electrical appliance

Power consumption test for large scale equipment

Test for electrical machine and motor

Packaging & Shipping

Dispatch is arranged within 1-3days once your payment is finished verification by our Financial department. If there is no option of express you need. Pls contact us in advance.

The delivery time show when you choice the express is for reference. We don't guarantee the time the same with it all the time, due to difference in customs clearing times in individual countries, which may affect how quickly your product is inspected.

Our Services

Dongguan NAPUI Electronic Technology Co., Ltd is 8 years specialist digital power meter Manufacturer in China.

All the power meter waranty are 12 months.

All the items are EXW.
