0.2 Class LED Digital Screen Display Active Power Meter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Specification
Specification |
||
Product type |
0.2 class high precision AC/DC type |
|
Measuring items |
Voltage V, Current A, Active power W, Power factor PF, Frequency Hz, Electric energy integration time, Peak voltage, Peak current, Average power, Wave filtering |
|
Current Range |
0.05mA-40A AC/DC |
|
Voltage Range |
0.5V-600V（AC/DC) |
|
Power Range |
0.001W-24KW(U*I*PF) |
|
Power factor range |
0.001-1.000 |
|
Frequency Range |
0.5～2KHz |
|
Basic Accuracy |
±(0.1%read+0.1%range） |
|
Communication Interface |
Standard RS232 or RS485, optional Relay output |
|
Electric Energy Timing |
99999h,Error±2s/H |
|
Warranty |
12 months |
|
Product Description

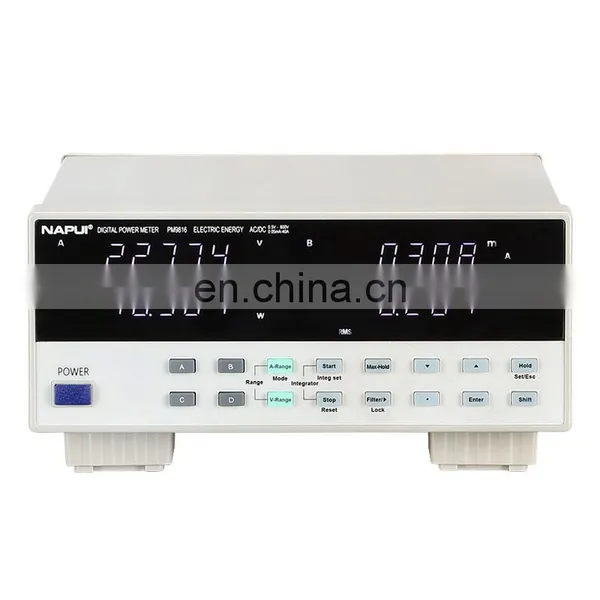

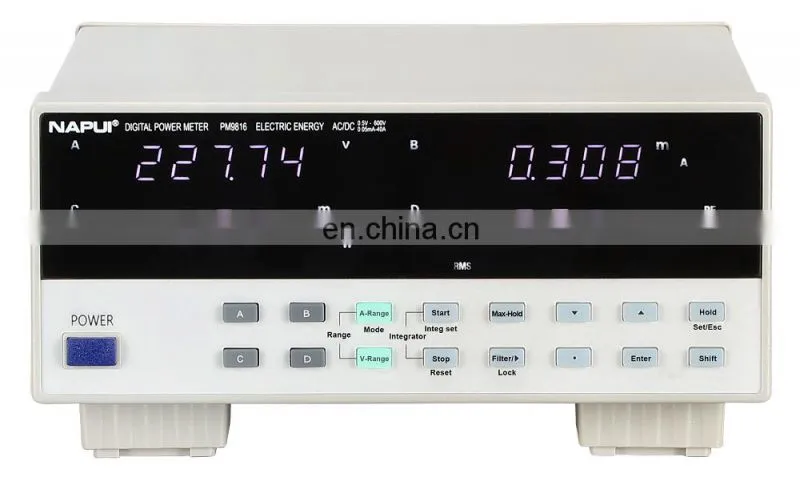

PM9816 is High precision 0.2 Class Small current type AC/DC Power meter.
There have RS232 or RS485 Communication interface. Relay is optional

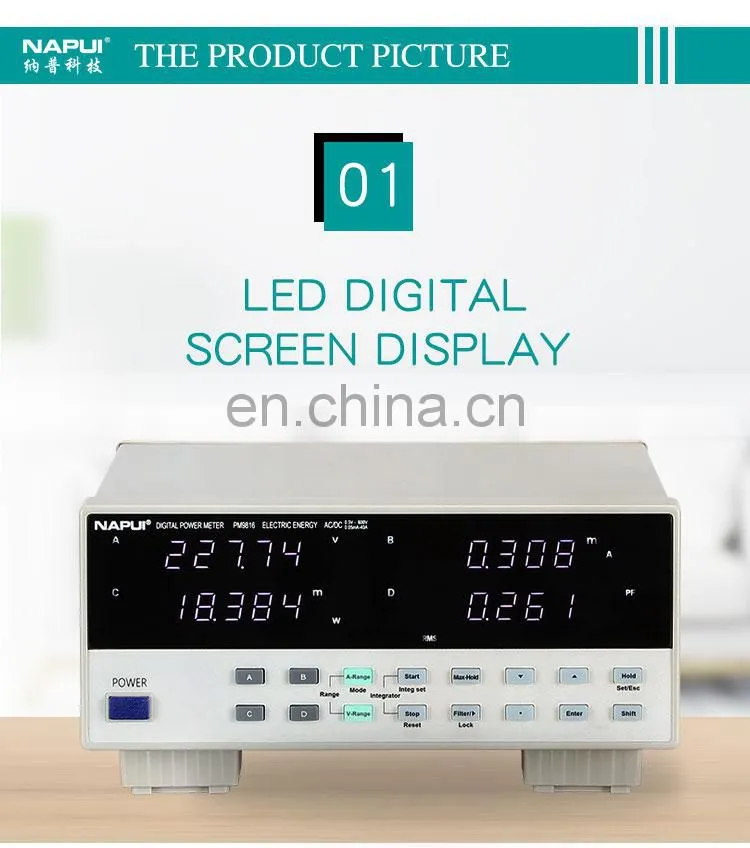

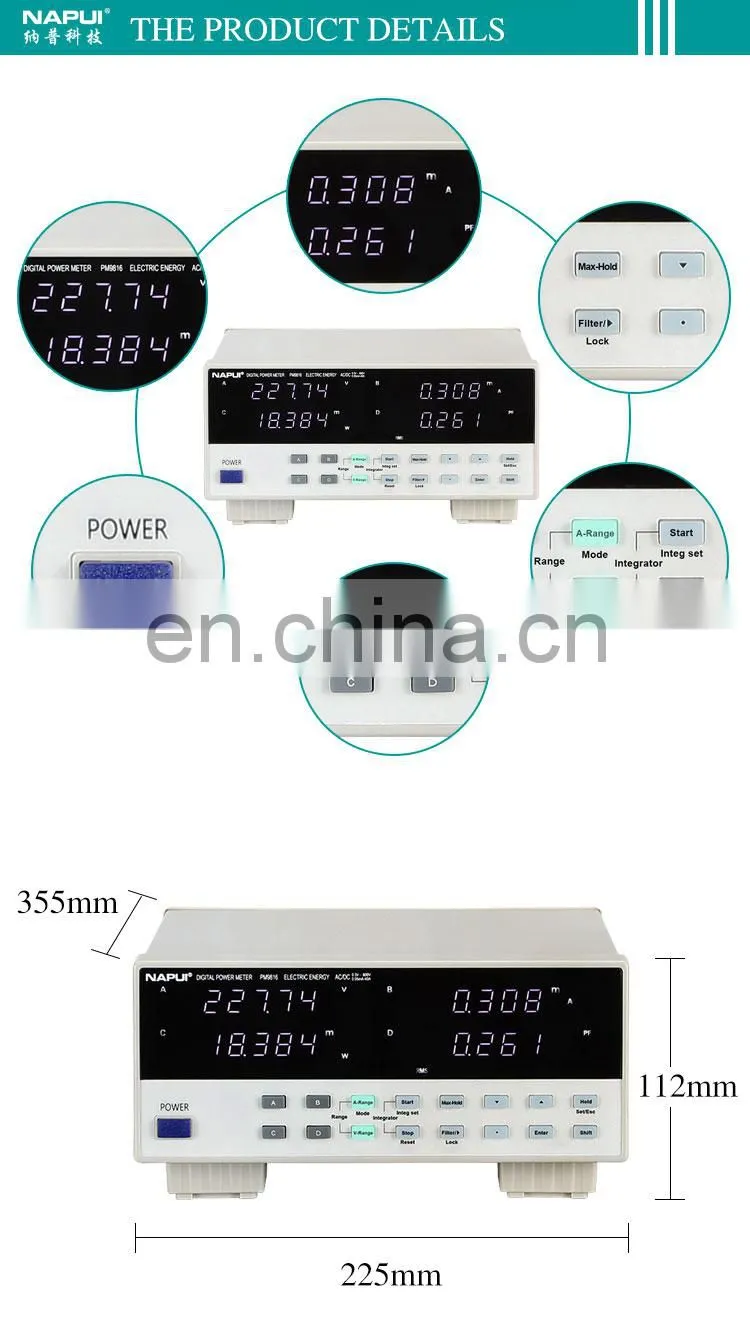

Big screen display, easy to operate.

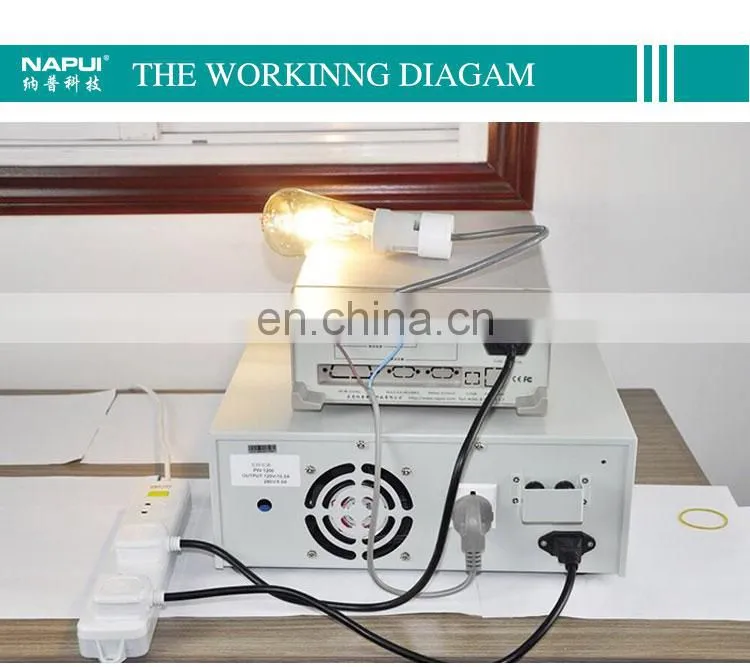

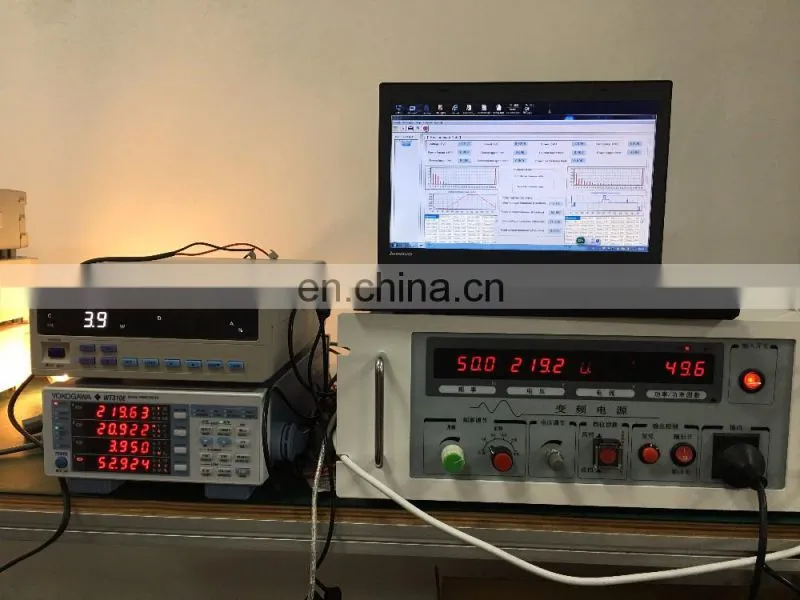

Applications

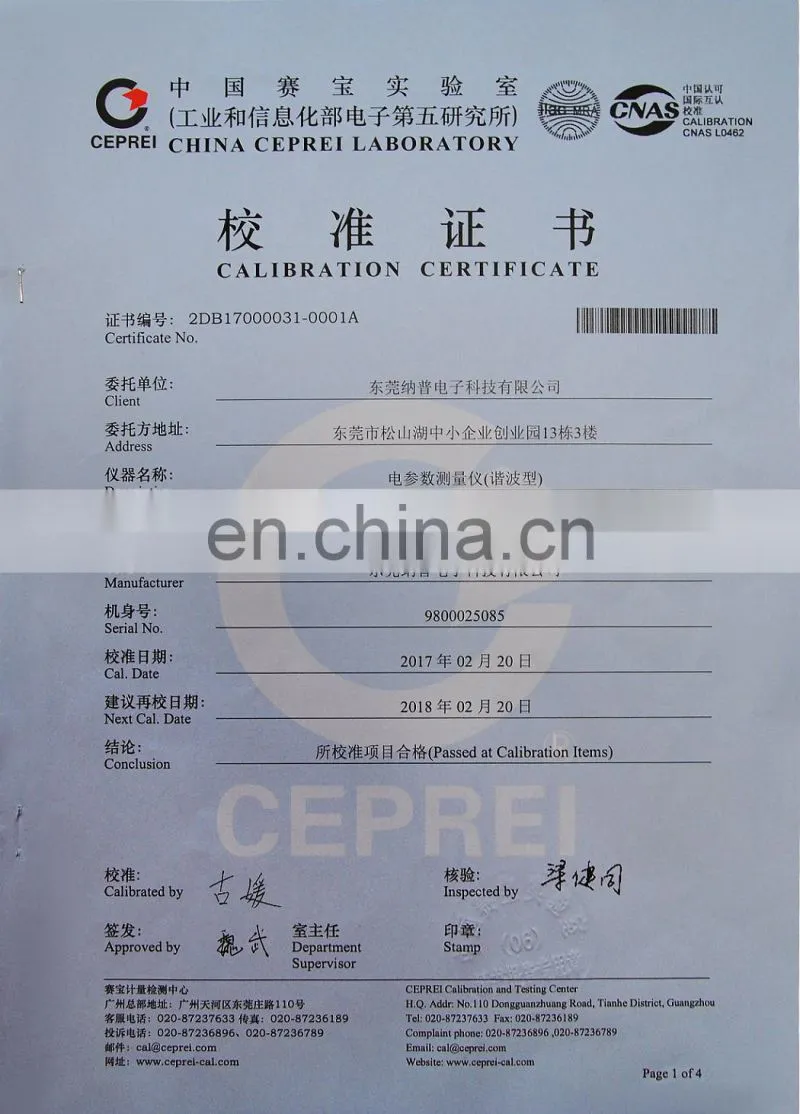

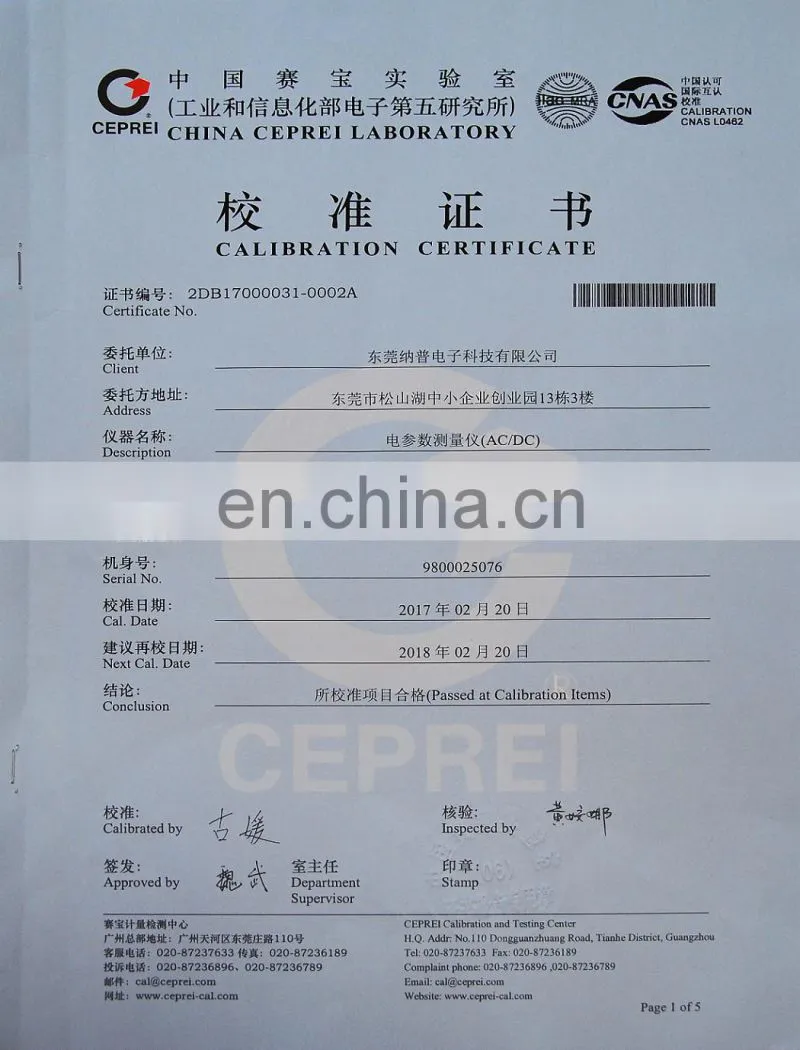

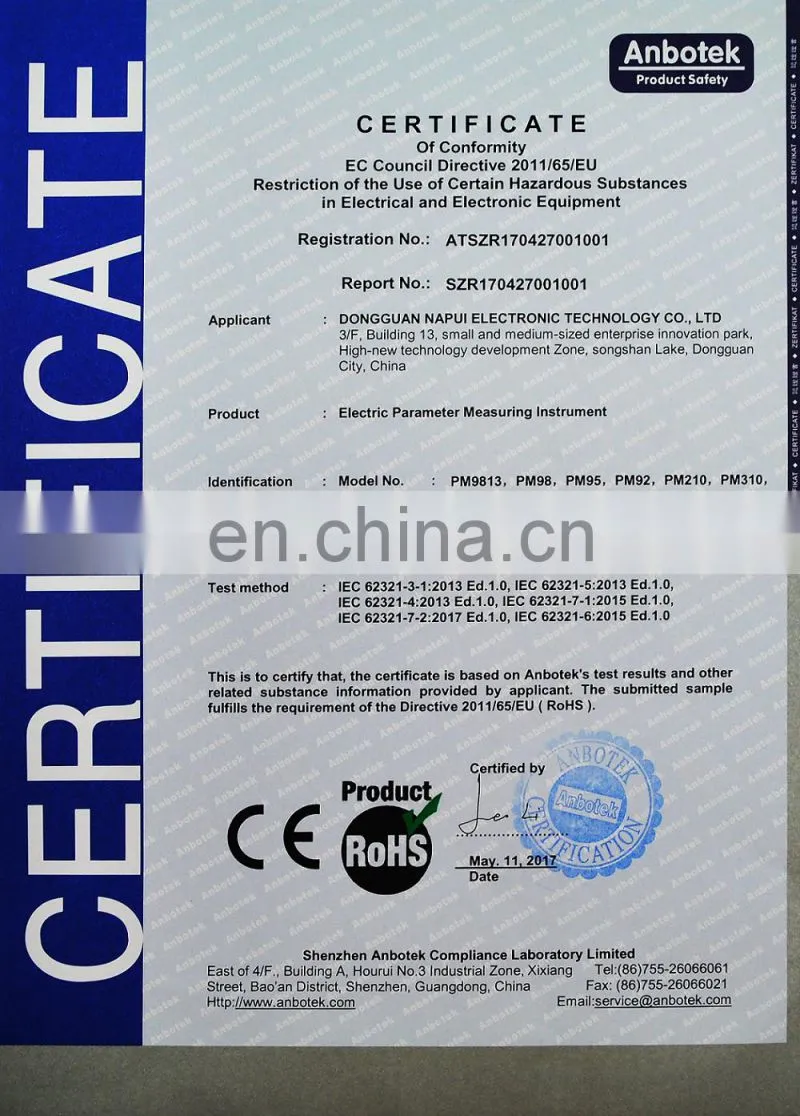

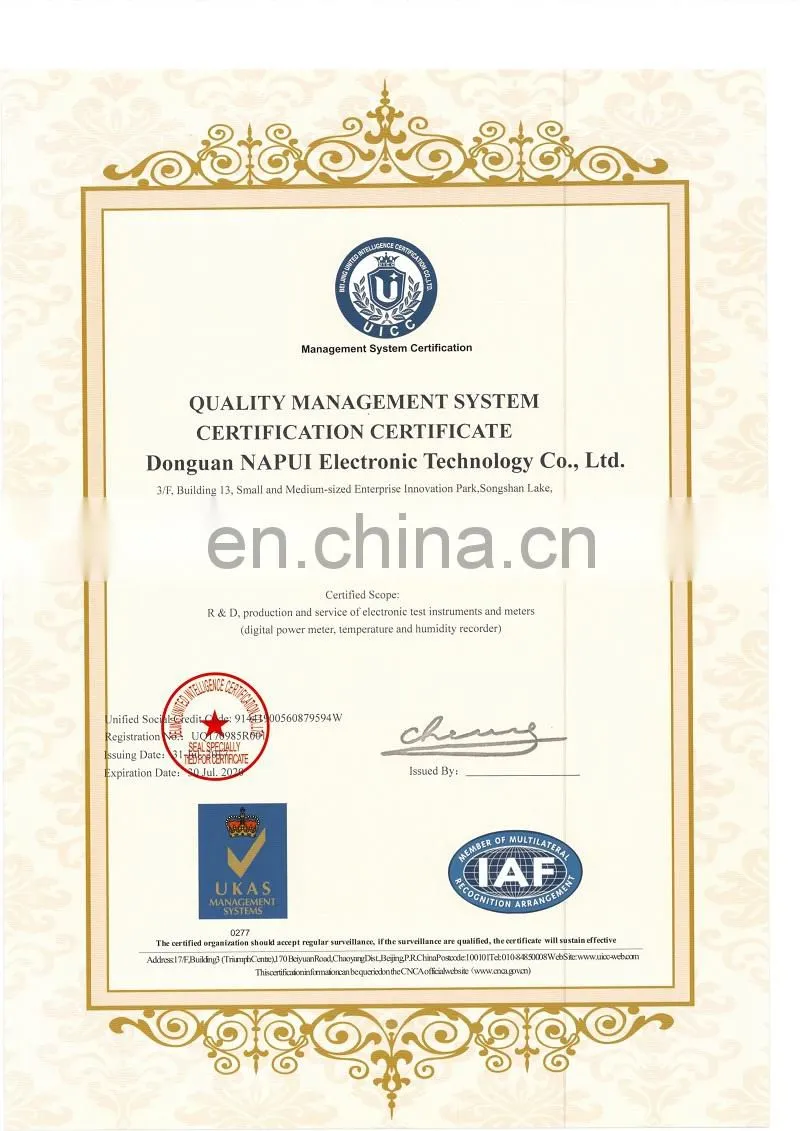

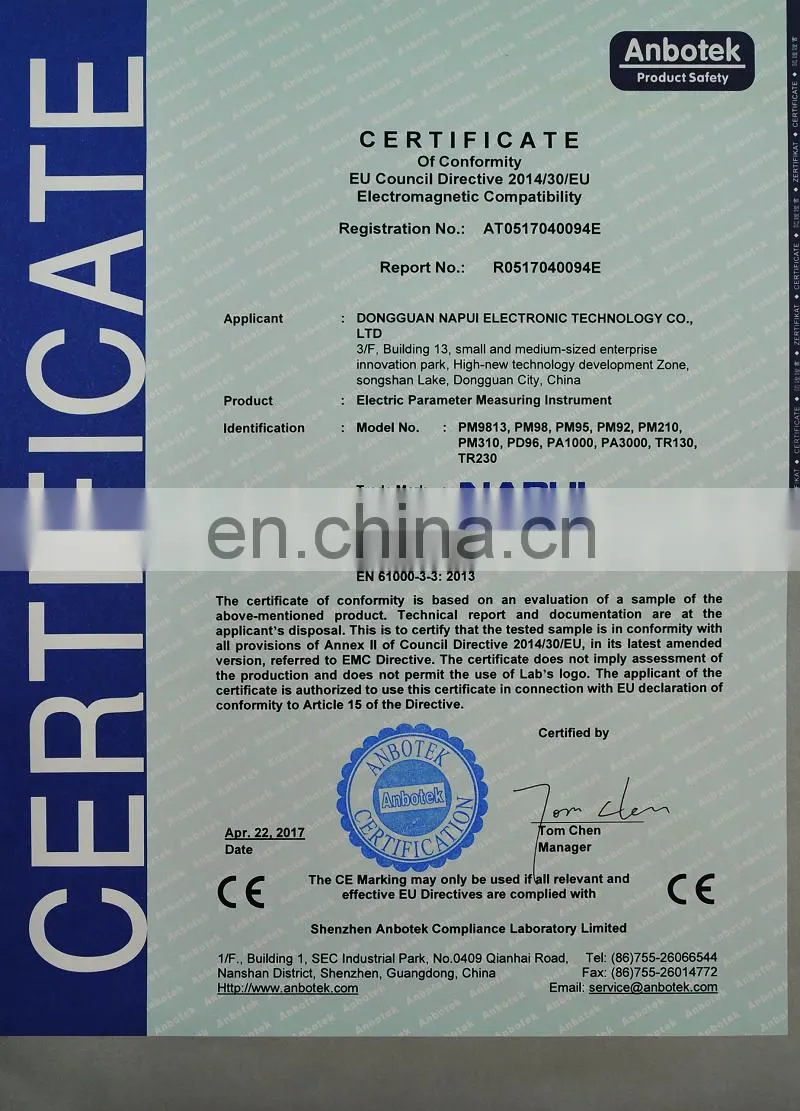

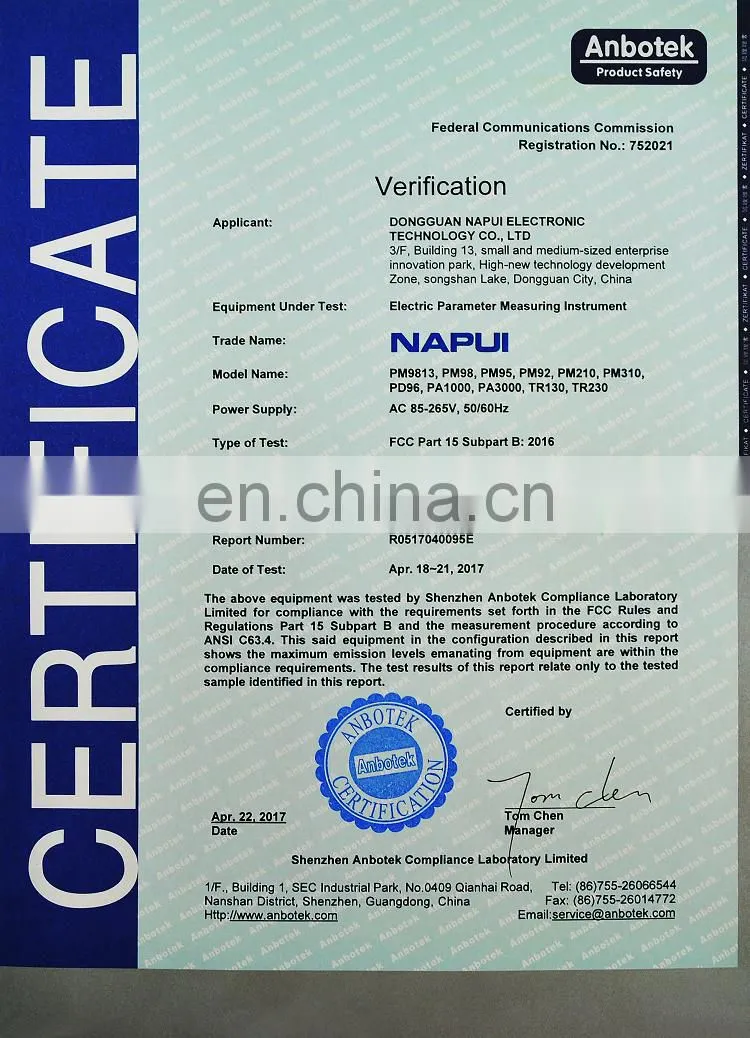

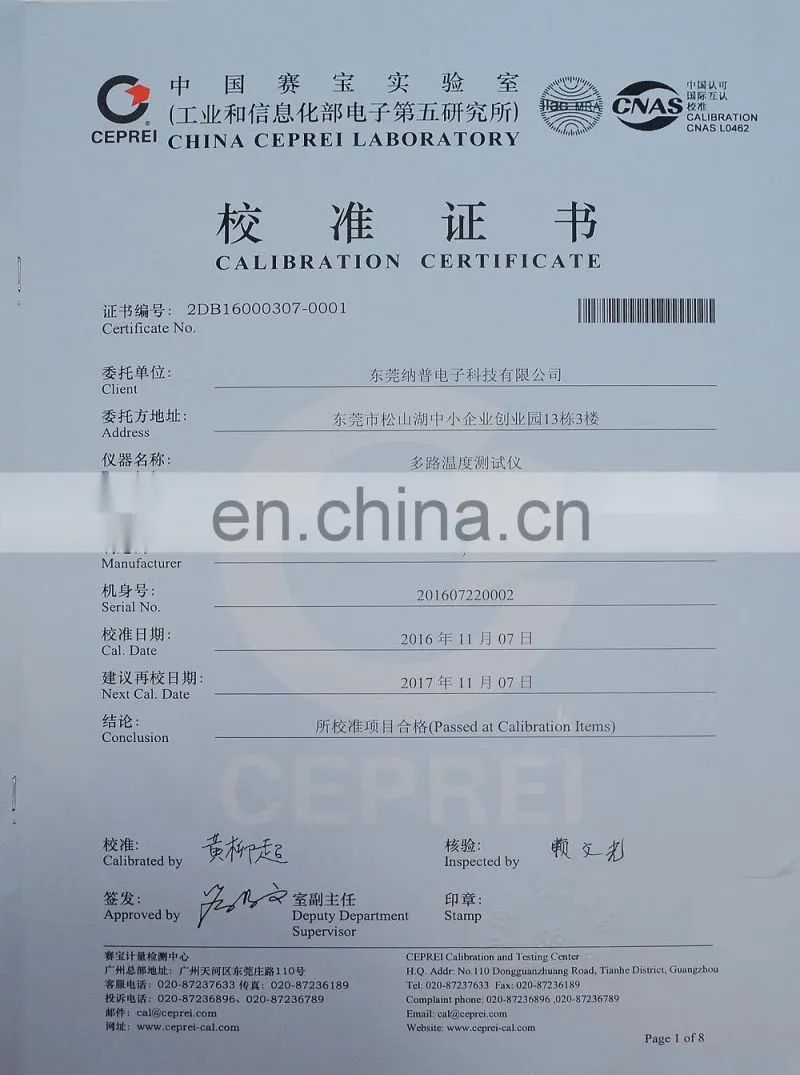

Certifications
Company Information
Dongguan NAPUI Electronic Technology Co., Ltd. is 10 years specialist digital power meter and Multi-channels paperless recorder Manufacturer in China.The company starting from 2010.
The company mainly produces Digital power meter, high-precision power analyzer, multi-channel paperless temperature recorder, Solid negative ion detector IT-10, X, Gamma and Beta radiation tester MR-50, DC Electronic Load, DC Power supply and AC Power Source etc.
Exhibition
Product packaging
Dispatch is arranged within 1-3days once your payment is finished verification by our Financial department. If there is no option of express you need. Pls contact us in advance.
The delivery time show when you choice the express is for reference. We don't guarantee the time the same with it all the time, due to difference in customs clearing times in individual countries, which may affect how quickly your product is inspected. Thanks
The delivery time show when you choice the express is for reference. We don't guarantee the time the same with it all the time, due to difference in customs clearing times in individual countries, which may affect how quickly your product is inspected. Thanks
FAQ
Q1. Can I have a sample order for power meter?
A: Yes, we welcome sample order to test and check quality. one pcs is acceptable.
Q2. What about the warranty?
A:the items warranty are 12 months.
Q3. Do you have any MOQ limit for power meter order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-8 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
