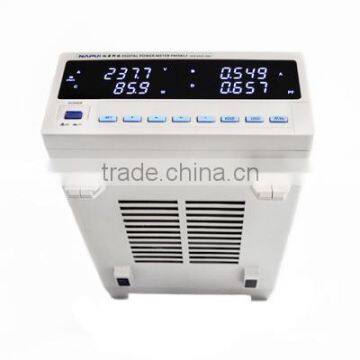

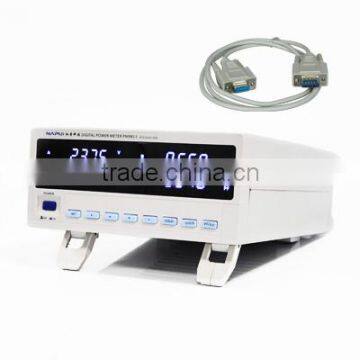

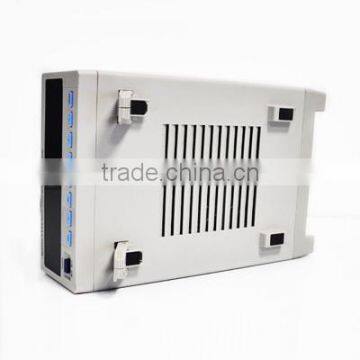

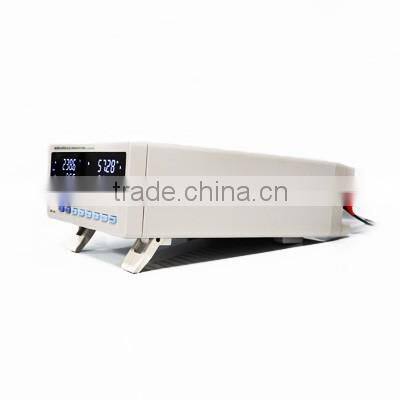

LED Tester PM9805 Digital power meter interface model for electric parameters test
Products Features:
Red LED digital screen display: voltage, current, power, power factor/frequency
All measurements are Trms
Not affected by external noise
Support data locking
Switch Range
Areas of Application
Power consumption test for household appliance
Power consumption test for the air-condition
Power consumption test for LED light products
Power consumption test for electric machine and Motor
|
PM9801 |
|
|
Product Type |
Alarm Type |
|
Measuring Items |
Voltage V, Current A, Active power W, Power factor PF, Frequency Hz |
|
Measuring Model |
Trms |
|
Voltage Range |
3V~600V AC Peak Voltage: 700V |
|
Current Range |
|
|
Power Range: |
0.1W-12kW(U*I*PF) |
|
Power factor Range |
0.001-1.000 |
|
Range Model |
A/D chip automatic conversion |
|
Frequency Range |
45-65Hz |
|
Basic Accuracy |
±(0.4%read+ 0.1%range) |
|
Data refresh Cycle |
3tims/s |
|
Input Impedance |
2MΩ(All Voltage) |
|
Power Supply |
AC 100-240V 45-440Hz, DC 100-300V |
|
Communication Interface |
Optional RS232 or 485, rely output function |
|
AC/DC/RMS |
AC |
|
AD Converter |
The speed is 8K/S, voltage and current simultaneous sampling |
|
Weight |
1.7KG |
|
Dimension |
W×H×D(225mm×112mm×355mm)(Without Package) |
Dispatch is arranged within 1-3days once your payment is finished verification by our Financial department. If there is no option of express you need. Pls contact us in advance.
The delivery time show when you choice the express is for reference. We don't guarantee the time the same with it all the time, due to difference in customs clearing times in individual countries, which may affect how quickly your product is inspected.
Dongguan NAPUI Electronic Technology Co., Ltd is 8 years specialist digital power meter Manufacturer in China.
All the power meter waranty are 12 months.
All the items are EXW.
