Product Description

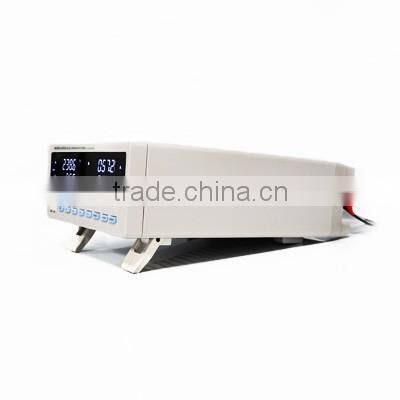

Manufacturer of RS485 power meter
Product Features:
1. Four windows LED display, voltage, current, power, power factor/frequency at the same time
2. All measurements are TRMS
3. Automatic range
4. Accuracy: 0.5
5. Not affected by external noise
6. Suitable for various electricity situations with 100-240V ac power supply
7. Its shell uses soft rubber material which is beautiful shatterproof and durable
8. Support data latching
9. Can set the upper and lower limit for alarm function
10. The product is suitable for uses in the production line test, such as lighting products, home appliances, electrical machine products, power products. etc
| Connection | Single Phase |
| Display | Four Windows display, Seven-segment digital tube |
| Measuring items | Voltage-V, current-A, active power-W, power factor-PF, frequency-HZ |
| Measuring form | True Root Mean Square(TRMS) |
| Voltage Range | 75v/150/300v/600v AC(Switch the range automatically |
| Peak Voltage:700v AC | |
| Min test voltage:5v(Below 5v, can't be tested) | |
| Current Range | 0.5A/2A/8A/20A AC (Switch the range automatically) |
| Peak Current:26A AC | |
| Min test current :10mA AC (Below 10mA, can't do tested) | |
| Power Range | 0.1W-9999W |
| Power factor range | 0.001-1.000 |
| Compute mode: watt(W)/[Voltage(V)*current(A)]=Power factor(PF) | |
| The frequency range | 45-400Hz |
| Basic Accuracy | ±0.4% reading +0.1%range+1 digit |
| Measuring Speed | Five times per second |
| Input Impedance | ≥1MΩ(All voltage) |
| Power Supply | 100~240V AC 50/60 Hz |
| Volume and weight | 270mm(L)*230mm(W)*110mm(H), 1.8KG |
| Attachment | Power line, fuses, specification |
