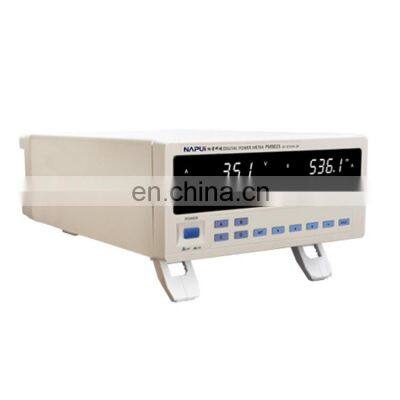

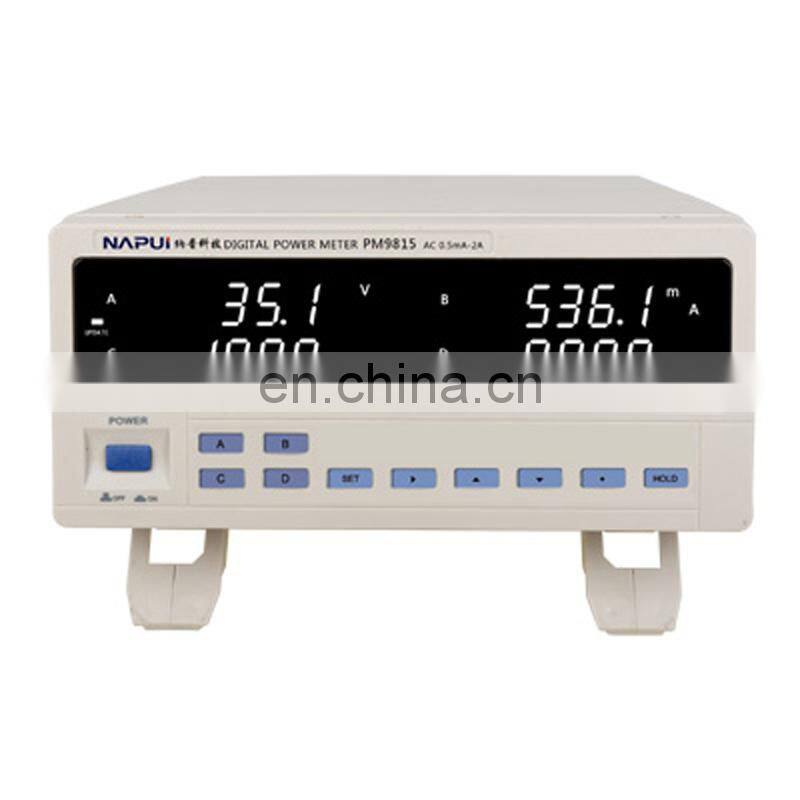

NAPUI PM9815 Multifunction Smart Power Meter Electricity Analyzer
Products Features:
1. LED digital screen display, voltage, current, power, power factor/frequency
2. All measurements are Trms
3. Automatic range
4. Accuracy: 0.5
5. Not affected by external noise
6. Support data locking
7. Can be set current and power lower and upper alarm function, PASS the light is Green, NG the light is Red, Easy to distinguish
Areas of Application:
Power consumption test for household appliance
Power consumption test for the air-condition
Power consumption for light products
Power consumption test for LED Lamps
Test for electric machine and Motor
Test for chargers and switching power supply
Single Phase | |
Display | LED Digital Screen |
Measuring items | Voltage-V, current-A, active power-W, power factor-PF, frequency-Hz |
Voltage Range | 5V-600V AC(Switch the range automatically Peak Voltage:700V AC Min test voltage:5v(Below 5v, can be customized) |
Current Range | 0.5mA-2A AC(Switch the range automatically) Peak Current:2.6A AC Min. test current :0.5mA AC |
Power Range | 0.01W-1.2KW(Suitable for standby power test and small power electrical products testing) |
Power factor range | 0.001-1.000 Compute mode: Watt(W)/[Voltage(V)*current(A)]=Power factor(PF) |
The frequency range | 45-65Hz |
Communication Interface | Optional RS232 or RS485, Relay output |
Basic Accuracy | ±(0.4% reading +0.1%range+1 digit) |
Measuring Speed | Five times per second |
Input Impedance | About 2MΩ(All voltage) |
Power supply | 100~250V AC, 45-400Hz, 100-300V DC |
Volume and weight | 355mm(L)*225mm(W)*112mm(H),Hole size:225mm(W)*99mm(H)≈1.7KG |
Attachment | Power line, Operation Manual, warranty card |
