Electricity AC Smart Power Monitor Digital Power Meter PM9840X

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

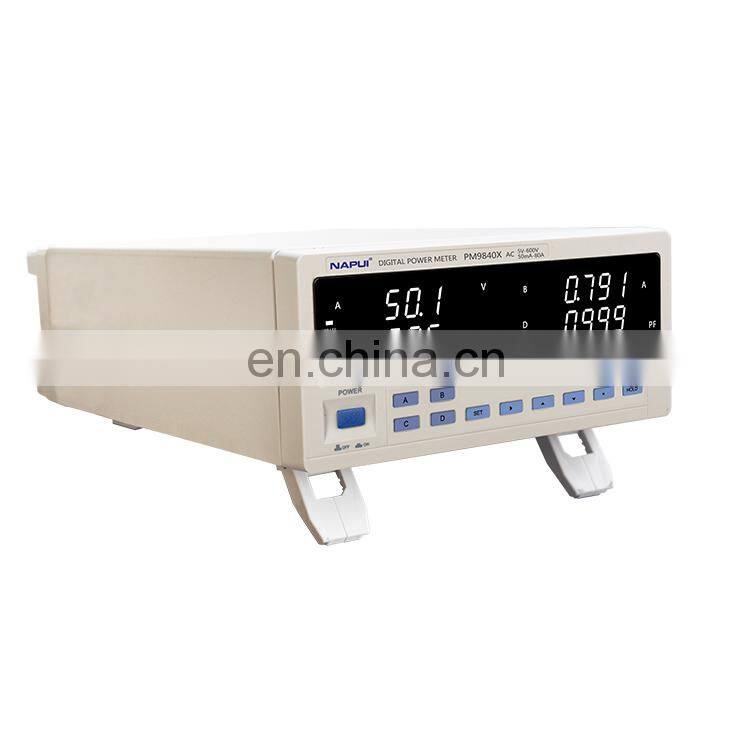

Electricity AC Smart Power Monitor Digital Power Meter PM9840X

All products Support for small batch customization,pls contact us if necessary.

Products Features:

1. LED digital screen display, voltage, current, power, power factor/frequency

2. All measurements are Trms

3. Automatic range

4. Accuracy: 0.5

5. Not affected by external noise,

6.Support data locking

7. Can be set current and power lower and upper alarm function, PASS the light is Green, NG the light is Red, Easy to distinguish

Areas of Application:

Power consumption test for household appliance

Power consumption test for the air-condition

Power consumption for light products

Power consumption test for LED Lamps

Test for electric machine and Motor

Test for chargers and switching power supply

Connection	Single Phase
Display	LED Digital screen
Measuring items	Voltage-V, current-A, active power-W, power factor-PF, frequency-Hz
Voltage Range	5V-600V AC(Switch the range automatically Peak Voltage:700V AC Min test voltage:5V
Current Range	50mA-80A AC(Switch the range automatically) Peak current:104A AC Min. test current :50mA AC
Power Range	0.1W-48KW
Power factor range	0.001-1.000 Compute mode: Watt(W)/[Voltage(V)*current(A)]=Power factor(PF)
The frequency range	45-65Hz

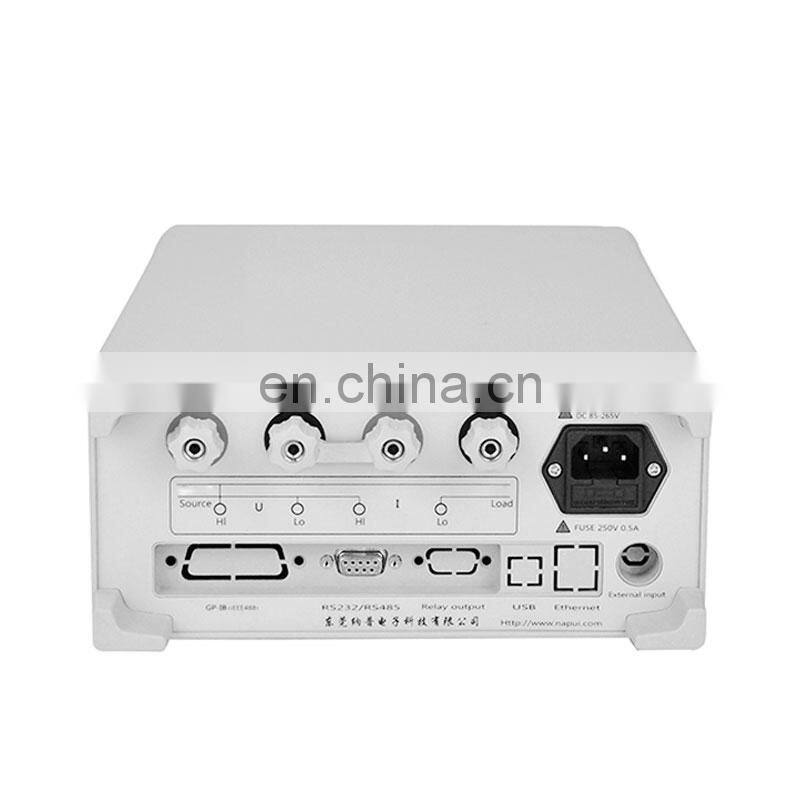

Communication Interface	Optional RS232 or RS485, Relay output
Basic Accuracy	±(0.4% reading +0.1%range+1 digital)
Measuring Speed	Five times per second
Input Impedance	About 2MΩ(All voltage)
Power supply	100~250V AC, 45-400Hz, 100-300V DC
Volume and weight	355mm(L)225mm(W)112mm(H),Holesize:225mm(W)*99mm(H)≈1.7KG
Attachment	Power line, specification, Warranty card
