Product Description

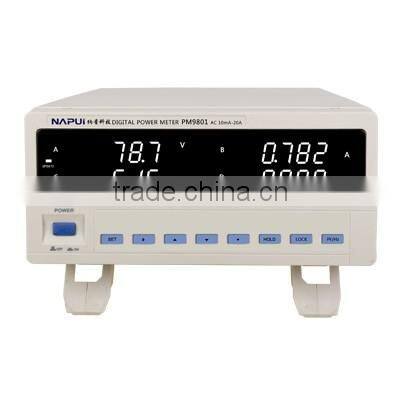

Bench TRMS Voltage Current Power Factor & Power Meter Analyzer

The product Description:

1. LED Digital display: Voltage, Current, Power, Power factor, frequency

2. All measurements are TRMS

3. Automatic Range

4. Accuracy:0.5

5. Not affected by external noise

6. Support data latching

7. Can be set the upper and lower limit for alarm function

Areas of Application:

Power consumption test for household appliance

Power consumption test for the air-condition

Power consumption for light products

Power consumption test for LED Lamps

Test for electric machine and Motor

Test for chargers and switching power supply

Connection	Single Phase
Display	LED Digital Screen
Measuring items	Voltage-V, current-A, active power-W, power factor-PF, frequency-Hz
Voltage Range	3V~600V AC(Switch the range automatically) Peak Voltage:700V AC Min test voltage:3V(Under 3V, can be Customized)
Current Range	5mA~20A AC (Switch the range automatically) Peak Current:26A AC Min test current :5mA AC (Under 5mA, can be Customized)
Power Range	0.1W-12KW
Power factor range	0.001-1.000 Compute mode: watt(W)/[Voltage(V)*current(A)]=Power factor(PF)
The frequency range	45-65Hz
Communication Interface	Optional RS232 or RS485, Relay output function
Basic Accuracy	±(0.4% reading +0.1%range+1 digit)
Measuring Speed	Five times per second
Input Impedance	About 2MΩ(All voltage)
Power Supply	100V~250V AC, 45-400Hz, 100V-300V DC
Volume and weight	355mm(L)225mm(W)112mm(H), Hole size:225mm(W)*99mm(H)≈1.7KG
Attachment	Power line, specification, Warranty card

The power meter details:

Packaging & Shipping

Dispatch is arranged within 1-3days once your payment is finished verification by our Financial department. If there is no option of express you need. Pls contact us in advance.

The delivery time show when you choice the express is for reference. We don't guarantee the time the same with it all the time, due to difference in customs clearing times in individual countries, which may affect how quickly your product is inspected.

Our Services

Dongguan NAPUI Electronic Technology Co., Ltd is 8 years specialist digital power meter Manufacturer in China.

All the power meter waranty are 12 months.

All the items are EXW.
