PM9815 Small Power Type Digital Power Meter

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

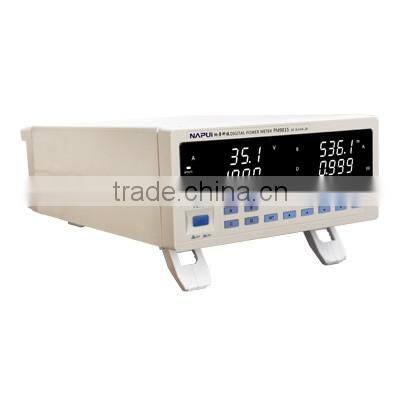

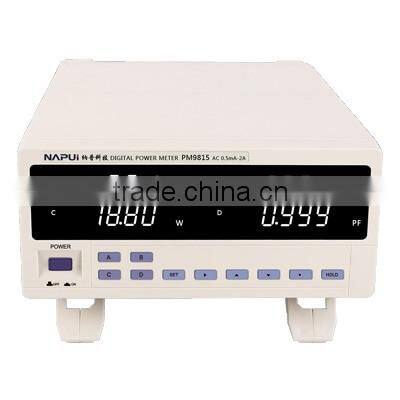

PM9815 Small power type Digital Power meter

The product Description:

1. LED Digital display: Voltage, Current, Power factor, frequency.

2. All measurements are TRMS

3. Accuracy:0.5

4.Max. Measuring current is 2.2A

5.Min. Measuring current is 0.3mA, Max. current is 2A.

4. Not affected by external noise

7. Support data latching

8. Can be set the upper and lower limit for alarm function, PASS is Green Light, NG is Red light, easy to distinguish.

Areas of Application:

Power consumption test for household appliance

Power consumption test for the air-condition

Power consumption for light products

Power consumption test for LED Lamps

Test for electric machine and Motor

Test for chargers and switching power supply

Connection	Single Phase
Display	LED Digital Screen
Measuring items	Voltage-V, current-A, active power-W, power factor-PF, frequency-Hz
Voltage Range	5V-600V AC(Switch the range automatically Peak Voltage:700V AC Min test voltage:5v(Below 5v, can be customized)
Current Range	0.5mA-2A AC(Switch the range automatically) Peak Current:2.6A AC Min. test current :0.5mA AC
Power Range	0.01W-1.2KW(Suitable for standby power test and small power electrical products testing)
Power factor range	0.001-1.000 Compute mode: Watt(W)/[Voltage(V)*current(A)]=Power factor(PF)
The frequency range	45-65Hz
Communication Interface	Optional RS232 or RS485, Relay output
Basic Accuracy	±(0.4% reading +0.1%range+1 digit)
Measuring Speed	Five times per second
Input Impedance	About 2MΩ(All voltage)
Power supply	100~250V AC, 45-400Hz, 100-300V DC
Volume and weight	355mm(L)225mm(W)112mm(H),Holesize:225mm(W)*99mm(H)≈1.7KG
Attachment	Power line, Operation Manual, warranty card

Packaging & Shipping

Dispatch is arranged within 1-3days once your payment is finished verification by our Financial department. If there is no option of express you need. Pls contact us in advance.

The delivery time show when you choice the express is for reference. We don't guarantee the time the same with it all the time, due to difference in customs clearing times in individual countries, which may affect how quickly your product is inspected.

Our Services

Dongguan NAPUI Electronic Technology Co., Ltd is 8 years specialist digital power meter Manufacturer in China.

All the power meter waranty are 12 months.

All the items are EXW.
