Product Description

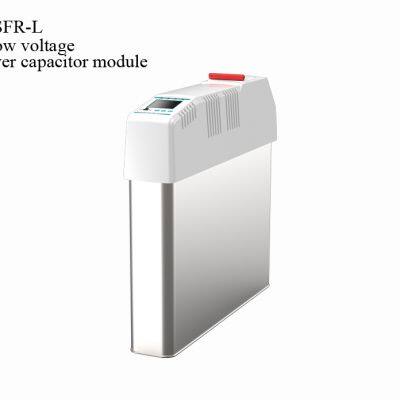

Elecnova SFR-L series power factor correction intelligent low voltage power distribution equipment capacitor bank


Technical
Function
Technical parameter
Feature (accuracy)


Measurement
Current
≤0.5 %(within the range 20%~120% of rated current)
Voltage
≤0.5 %(within the range 50%~120% of rated voltage)
Power
≤1%
Power factor
±0.01
                                     Switching mode
                                   Zero-crossing switch


Compensation operation
Working voltage
AC380V±20%, distortion ≤5%
Power consumption
≤5VA
Max. working current
1.35*In
Switching inrush current
≤*In

Host protection
Over voltage
1.07*Un (can be set)
Under voltage
0.75*Un (can be set)
Harmonic exceeding
0%~100% (can be set)

Local protection
Over current
0~100A  (can be set)
Over temperature
20℃~80℃(can be set)
Unbalance
0%~200% (can be set)

Control setting
Control parameter
Target power factor, switching threshold, delay time etc.
Peripheral unit parameters
Current transformer ratio
                                     Network interface
Pluggable data line, internal network protocol.

Mechanical installation
Outline dimension
W (wide)-71.5mm  D (depth)-370mm, height is different due to the specific capacity of different specifications
Installation dimension
Distance between fixing poles: W-85mm*D-315mm
Weight
≤6.5kg

Environment temperature
Working temperature
-25℃~50℃
Storage temperature
-25℃~55℃
                                                Altitude
≤2500m

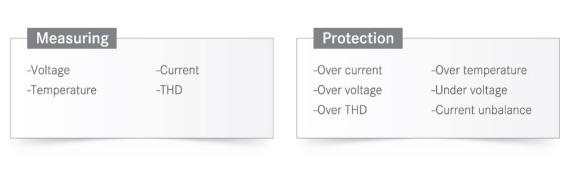

Function
Monitoring Solution
Production Process

                              SMT

                           AOI Test

                   Plug-In Mounting

                       Wave Soldering

                          Assembling

                            Inspection

Packing & Delivery
1. Bubble film packaging
2. Suitable boxes packaging
3. Carton packaging
