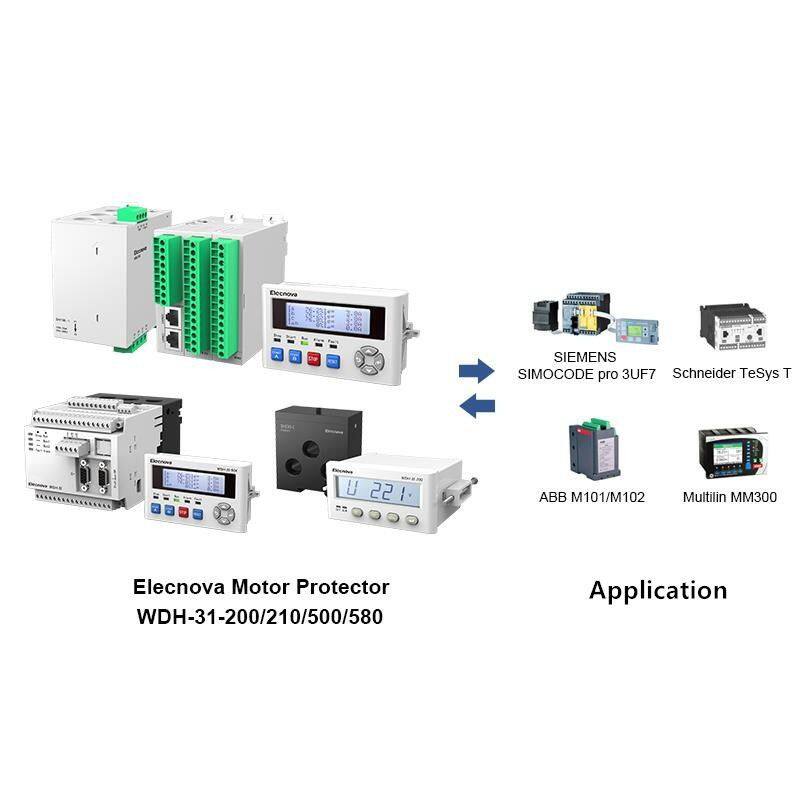

WDH-31-580 Motor Protector 3UF7 Simocode Pro Siemens Replacement
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Elecnova Motor Control Device Multi Function 9 Mode 16 Type Analog Output Temperature Intelligent Motor Controller
-
Motor Overload Relay 3 Phase Sequence Loss Voltage Current Pump Blower Protector Protection Relay
-
WDH-31-580 Low-voltage A.C Motor Controller Overload Protection Relay
-
Motor Control Center MCC Replace Automotive Overload Control Relay
-
WDH-31-200 Industrial Automation Motor Protector 3UF7 Siemens Automation
-
WDH-31-210 Motor Protector Industrial Automation Mccb Siemens
Product Description
Product Description

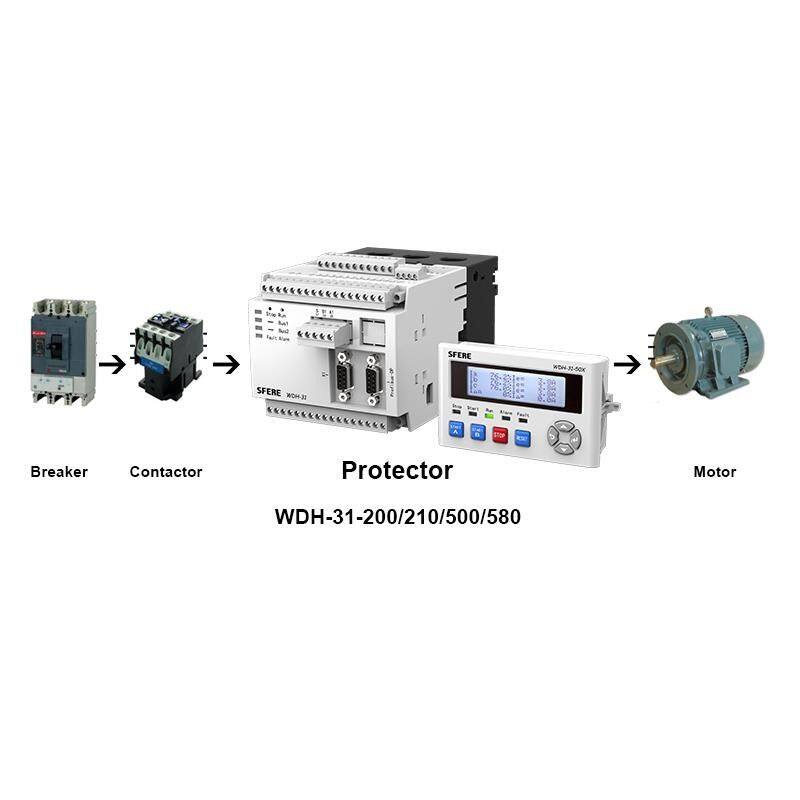

WDH-31-580 is a protection device for low-voltage AC motors and is applied to the motor applications with the rated frequency up to 50Hz, rated voltage up to 800A. The product has such functions as monitoring, controlling, protection and communication so as to provide the excellent protection for motors.
Product Name | Smart factory Modbus interface 3 phase analog output MCC control motor protector | ||||
Measuring | 3 phase voltage 3 phase current Residual current Energy Harmonics | ||||
Voltage/current starting protection accuracy | ±2% of setting value | ||||
Communication | Profibus-DP Modbus-RTU Ethernet Modbus/TCP | ||||
Areas of Application | Buildings, industrial facilities, utilities | ||||
Advantages
*Modbus Interface
*Protection(21 types)
*Analog Output
*Temperature
*Harmonics
Code | Adjustable Range | Configurable Motor Power(380V system) | Measurement Module | Diameter |
1 | 0.2A~5A | 0.13kW~2kW | WM1/05 | ∅18mm |
2 | 5A~25A | 2kW~11kW | WM1/25 | ∅18mm |
3 | 25A~100A | 11kW~55kW | WM1/100 | ∅18mm |
4 | 100A~250A | 45kW~115kW | WM1/250 | Copper Bar |
5 | 200A~500A | 90kW~280kW (configured with external CT) | WM1/05 | ∅18mm |
6 | 500A~800A | 280kW~400kW (configured with external CT) | WM1/05 | ∅18mm |
Size
Control circuit
Application
*Low Voltage three phase AC motor
*MCC cabinet or motor independent control cabinet
*Reversing and Reduced Voltage
*Advanced automation or control (such as conveyor system or well recovery pumps)
*Fire pumps and fans
Related Products
Packing & Delivery
Packing Details : Each one in cardboard tray, 16pcs in carton box as for motor intelligent controller
Delivery Details : 7 working days after confirmation
1. cardboard tray
2. Inner box with air bag
3. Variety inner boxes
