Product Description
Product Description
Elecnova BCM series precision power distribution monitoring system is use for the supervising of power parametres for the DC array cabinet. It measures the voltage, currency, power harmoics and all the ON/OFF status of the circurt breakers both for the incoming line and feeder. There is a 7" colorful TFT screen for display the real time data which could be installed on the cabinet, it also provide the Ethernet interface for connecting with the other systems.
Product Name | Energy power distribution software supervising individual module extend PC/screen industrial control scada monitoring system |
Protocol | Modbus-RTU |
Power | DC 24V |
Accuracy | 0.1% CT |
Metering chip set | TI(Texas Instruments) |
Installation type | 35mm |
Display | 7" TFT screen/PC screen |
Warranty | 2 years |

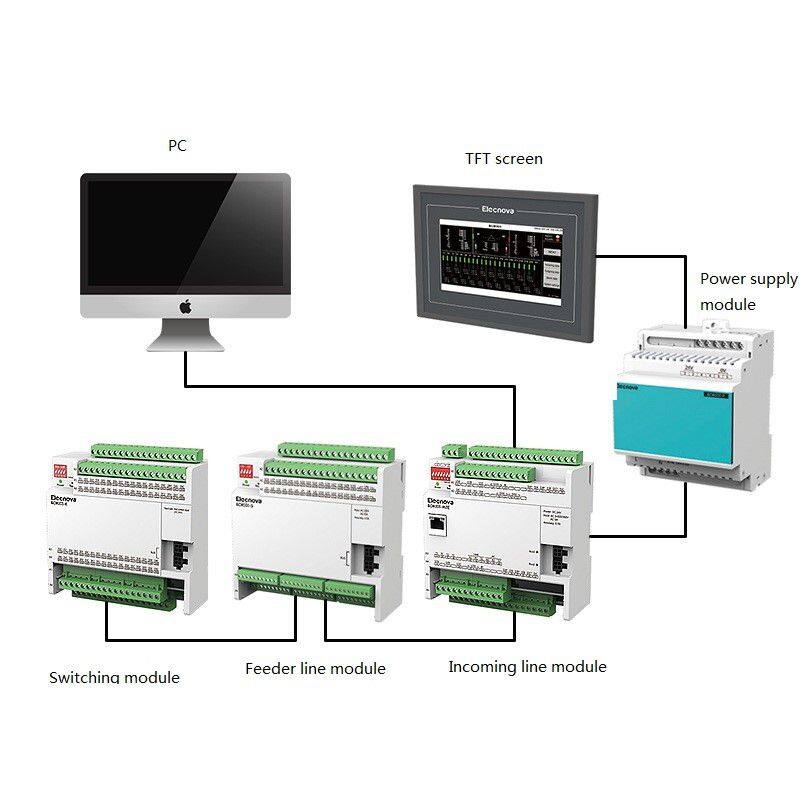

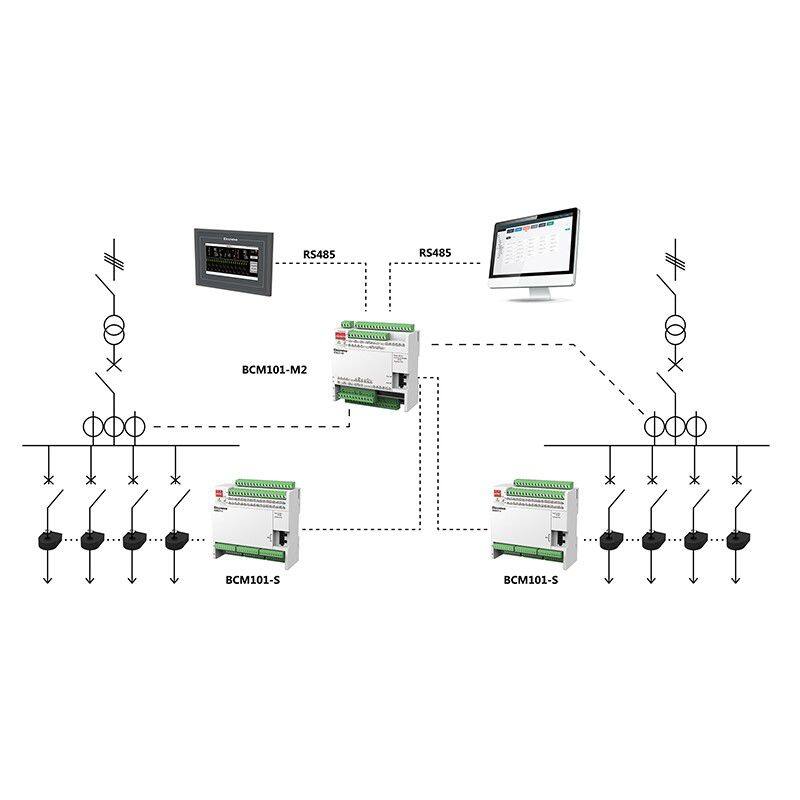

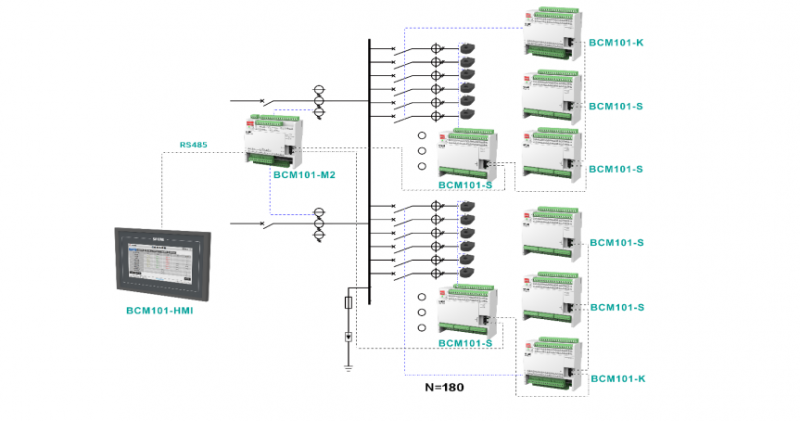

Tipical wiring
Products Show

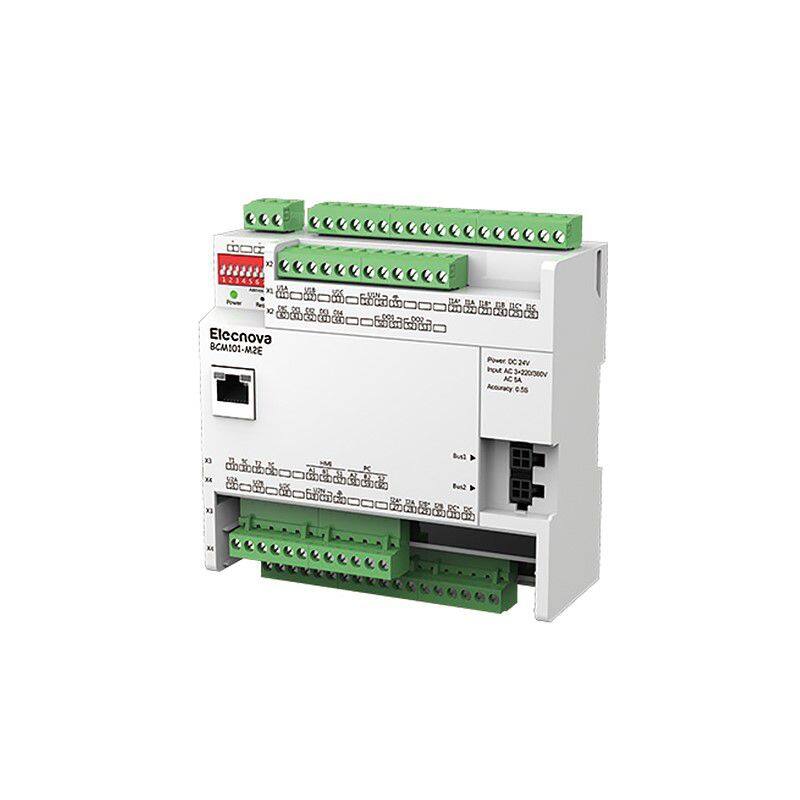

Module No: | BCM101-M2, Incoming line Module |
Accuracy | U/I 0.2, P/Q/PF: 0.5 |
Signal input | Voltage:3 phase 3*220/380V, 1 phase AC 220V Currency: AC5A/AC1A |
Frequency | 45~65Hz, Accuracy: ±0.01Hz |
Switching Value | Type: 4 Circurt, Dry contact Withstand voltage: 2kV AC |
Relay output | Capacity: 2 Circurt, AC250V/5A DC 30V/3A Withstand voltage: 2kV AC |
Communication | 2 circurt RS485, Modbus-RTU, 1 circurt RJ45, Modbus-TCP(option) |
Power | DC:24V |
Installation | 126*133*50mm,Din rail 35mm |

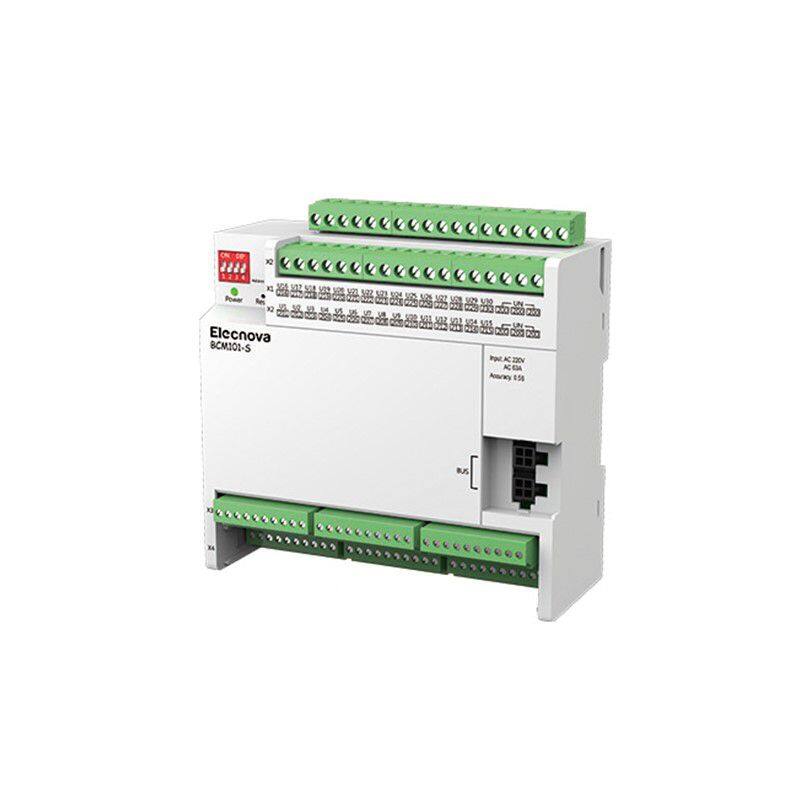

Module | BCM-101-S, Feeder monitoring |
Accuracy | U/I 0.2, P/Q/PF: 0.5 |
Signal input | Voltage: 1 phase AC 220V Overload: 1.2Un continuing 2Un/1 min instant Currency: 100A(External CT) Overlaod: 1.2ln continuing 10ln/5s |
Frequency | 45~65Hz, Accuracy: ±0.1Hz |
Switching Value | 30 circurt, voltage value determines the breaker Close/Open , Voltage>120 Close, Voltagge <110V Open |
Wire contact | 2 |
Installation | 126*125*50mm,Din rail 35mm |

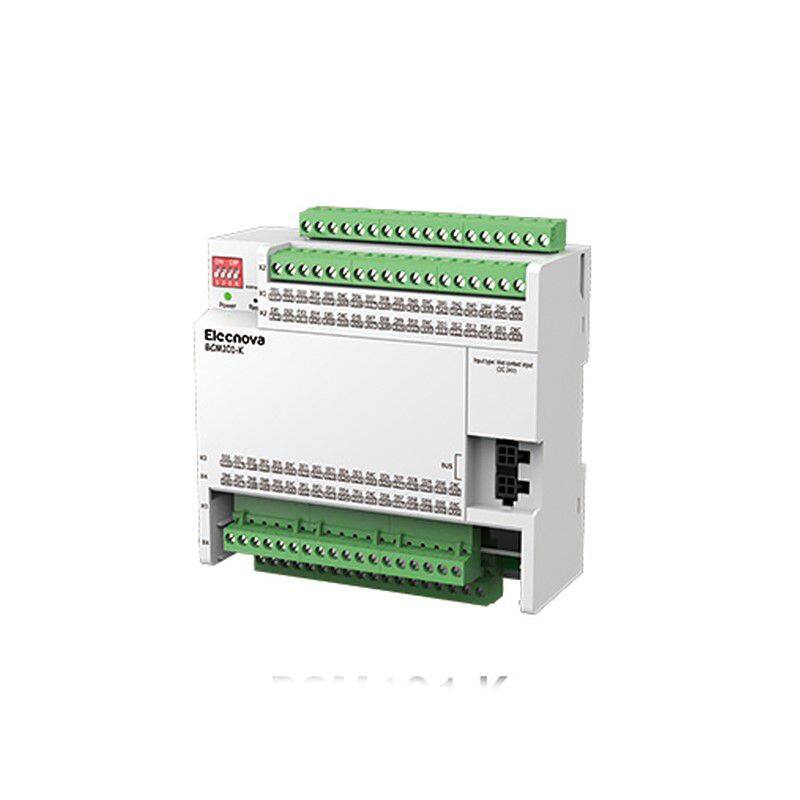

Module | BCM101K, Switching Value(Option) |
Circurt | 60 Circurt, Wet contact |
Input Voltage | DC24V±2V |
Inslation | 2kV |
Wire contact | 2 |
Installation | 126*133*50mm, Din rail 35mm |

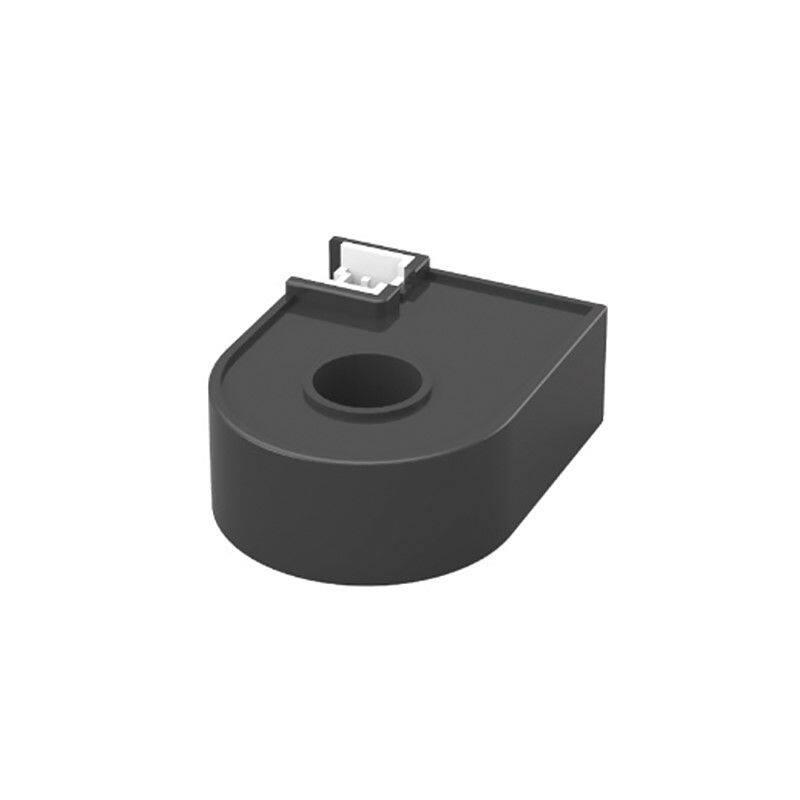

Module | Current Transformer Module |
Rated Value | SHI-BCT50 II: 5(50)A, SHI-BCT100II: 5(100)A |
Accuracy | 0.1 |
Overload | 1.2ln continuing 10ln/5S, instant |
Consumption | ≤0.2VA(per phase) |
Inslation withstand voltage | 4000V/min |
Installation | 5(50A): 26*33.5*11.5mm,φ8.9 5(100A): 45*52.5*17.5mm,φ19 |

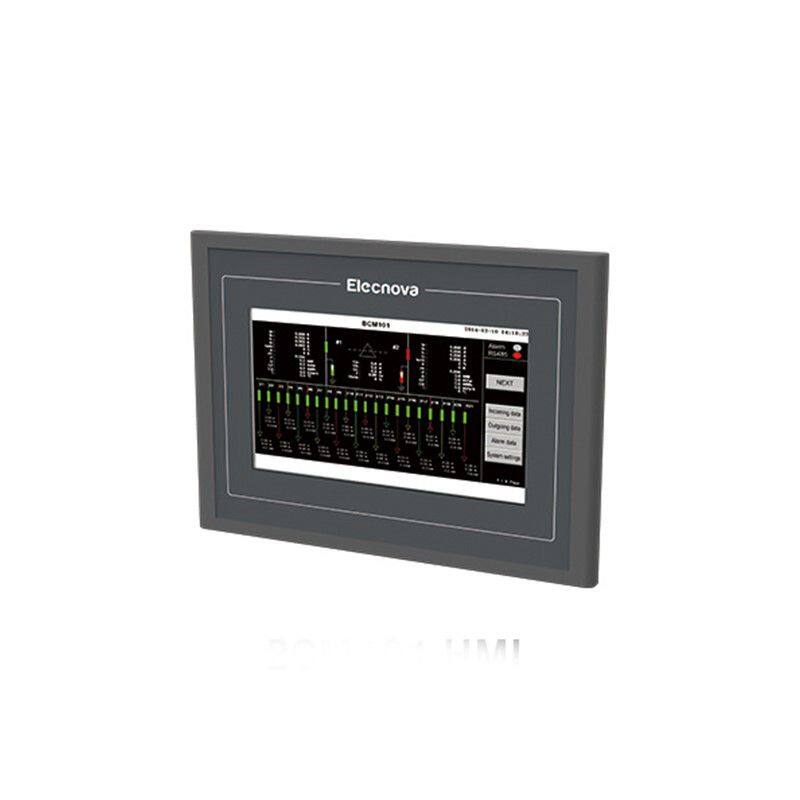

Display | BCM101-HMI |
Monitor | 7" TFT LCD screen, 800*480 definition |
Interface | RS485: Modbus-RTU protocol USD: USB 2.0 |
Power | Working range: DC: (24±20%)V Consumption: ≤5W |
Installation | 215*215mm, Panel mount |

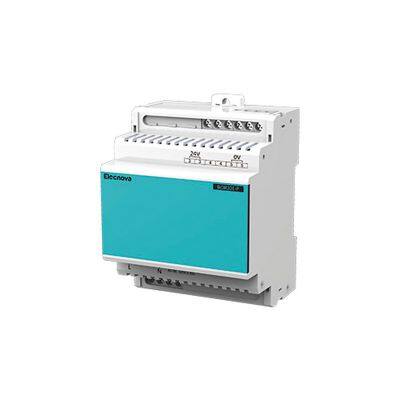

Module No | BCM101-P, Power module |
Input voltage range | AV180V~260V,DC220V~370 |
Output Value | DC 24V |
Output Power | ≤20W(25°C) |
Efficiency | >75% |
Inslation Intensity | AC 2kV/min |
Installation | 36*90*63.5mm, Din rail 35mm |

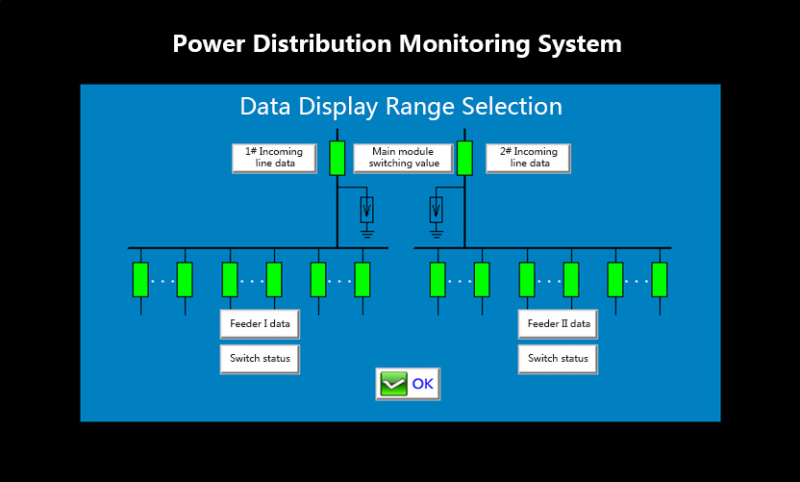

Display Demo
Recommend Products

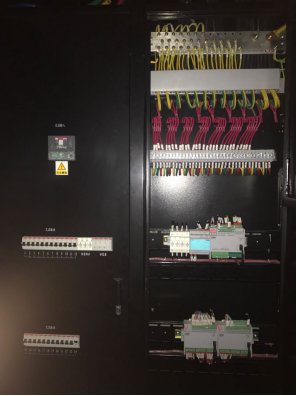

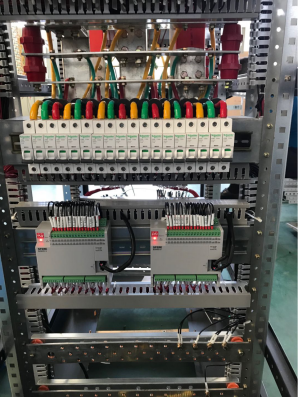

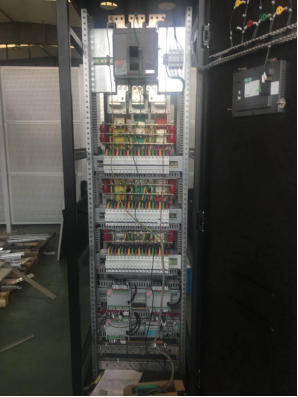

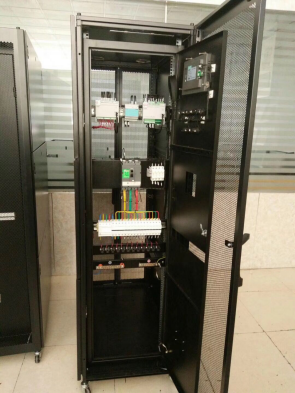

Application
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
